How Are PEEK Parts Machined for Precision Applications?
You are here: Home » Blogs » How Are PEEK Parts Machined for Precision Applications?

How Are PEEK Parts Machined for Precision Applications?

Views: 0     Author: Site Editor     Publish Time: 2026-07-31      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

A strong material can still produce a weak component. Poor heat control, clamping, or tooling may ruin tight dimensions. PEEK machined parts need a planned process from stock selection through inspection. In this article, you will learn how manufacturers control accuracy, stress, features, and surface quality.


Key Takeaways

 Precision machining starts with the drawing, service conditions, and inspection plan. The machine setup should follow the part’s function.

 Natural, carbon-filled, glass-filled, ESD, conductive, and wear-resistant grades behave differently during cutting. Grade choice affects stiffness, heat flow, tool wear, and dimensional movement.

 Most PEEK machined parts require staged roughing and finishing. This approach lowers stress release and protects close tolerances.

 Sharp tools, stable feeds, controlled cooling, and low-distortion fixtures help prevent melting, chatter, cracking, or wall deflection.

 Thin walls, deep holes, small pin arrays, tight bores, and sealing profiles need special tool paths and inspection methods.

 Final measurements should occur after the part reaches a stable temperature. Machine accuracy alone does not guarantee part accuracy.

 CNC machining suits prototypes, replacements, and low-to-medium volumes. It also supports design changes without mold costs.

 A useful quotation package includes CAD files, material grade, quantities, operating conditions, critical dimensions, and inspection needs.



How Are PEEK Machined Parts Produced?

Precision PEEK machining is a controlled sequence. Each step reduces risk before the final dimensions are cut.

Review the Drawing and Operating Conditions

Engineers review dimensions, tolerances, datums, wall thickness, holes, threads, and surface finish. They also study temperature, pressure, chemicals, load, speed, electrical needs, and cleaning rules.

A valve seat needs controlled sealing geometry. A test fixture needs stable hole positions. A bushing needs correct running clearance.

Select the Grade and Stock Form

Manufacturers choose a PEEK grade based on performance and machinability. Natural PEEK offers balanced toughness and insulation. Carbon-filled material provides greater stiffness and wear resistance. Glass-filled material supports rigid structural parts. ESD and conductive grades manage electrical charge. Wear grades suit sliding contact.

Rods support turned parts. Sheets suit plates, nests, and fixtures. Tubes reduce waste for rings, sleeves, and hollow parts.

Prepare and Stabilize the Blank

The blank is checked for size, surface damage, warpage, and material identity. Thick or highly stressed stock may need annealing before major cutting.

Annealing helps relax internal stress. It becomes important when the part has uneven walls, large pockets, or tight tolerances.

Rough-Machine the Main Shape

Roughing removes most unwanted material. CNC turning creates round features. Milling produces faces, pockets, slots, and complex profiles.

Machinists leave extra material on critical surfaces. They may remove stock from opposing sides to balance stress. Large material removal often uses several stages. This method reduces sudden movement and protects the final geometry.

Machine Holes, Grooves, and Threads

These operations may create small holes, deep bores, grooves, threads, sealing lips, lubrication channels, or alignment pockets.

Datums should remain stable while related features are cut. Multi-axis machining can reduce setups and improve positional relationships. Deep holes often need peck cycles, staged drilling, and frequent chip removal.

Finish Critical Dimensions

Finishing uses lighter cuts and lower forces. Critical bores, diameters, flat faces, sealing angles, and locating features are completed after rough stress has been released.

Thin or unsupported sections need extra care. The machinist may reduce tool engagement, support the wall, or split finishing into several passes. The part should cool before any final correction.

Deburr, Clean, and Inspect

Burrs are removed without rounding important edges. Some parts may need a final stress-relief cycle.

Cleaning must match the application. Medical and semiconductor components may need strict residue control. Inspectors then verify dimensions, surface quality, material records, and drawing requirements.

Tip:Mark critical-to-function dimensions clearly, so machining and inspection resources focus on real performance risks.



How Material Selection Affects Precision Machining

The strongest grade is not always the best grade. Fillers change cutting behavior, tool life, edge quality, stiffness, and thermal movement.

PEEK type

Main machining effect

Common precision use

Natural PEEK

Clean fine features and balanced toughness

Fixtures, insulators, valve parts, socket bodies

Carbon-filled PEEK

Higher stiffness, better heat transfer, more tool wear

Bearings, bushings, load-bearing parts

Glass-filled PEEK

Strong rigidity and lower movement, abrasive cutting

Frames, supports, electrical structures

ESD or conductive PEEK

Electrical control requires verified resistance

Semiconductor and electronics tooling

Wear-resistant PEEK

Better sliding performance, grade-specific cutting

Seals, guides, gears, bearing surfaces

Natural PEEK often works well for fine holes and delicate features. Reinforced grades can hold shape under load, yet their fibers increase abrasion. Sharp, wear-resistant tools become more important.

Electrical grades need more than dimensional inspection. Machining, cleaning, and surface condition may affect the final resistance.

Note:Confirm material performance on the finished component, not only on the raw stock certificate.



Tooling, Cooling, and Workholding

PEEK cuts more easily than many metals, but it still needs correct tooling. Sharp carbide tools suit many natural grades. Abrasive filled grades may require coated carbide or diamond-based tooling. Worn edges create heat, poor finish, and oversized features.

Speeds and feeds should form clean chips. Rubbing raises temperature and may smear the surface. Excessive feed can split thin sections or damage hole edges. Deep pockets and holes need reliable chip evacuation.

Cooling controls local heat. Compressed air can remove chips and limit contamination. Compatible cutting fluids may improve cooling during demanding operations.

Fixtures must hold the part without changing its shape. Soft jaws, nests, mandrels, vacuum fixtures, and sacrificial supports spread clamping force. Thin rings and plates need support near the cutting area.



How Are Difficult PEEK Features Machined?

Complex geometry increases the risk of movement, heat buildup, and measurement error.

Thin Walls

Thin walls can bend under clamping or cutting force. Machinists use staged removal, light passes, sharp tools, and close support. Balanced tool paths reduce uneven stress release. They may leave temporary support ribs until late in the process.

Deep Holes and Micro-Holes

Deep holes trap heat and chips. Small drills can wander or break. A pilot hole, step drilling, peck cycles, and controlled feed improve stability. Frequent tool withdrawal clears chips and limits local heating.

Dense hole patterns need a datum-based sequence. Optical inspection can check small features without applying probe force.

Tight Bores, Threads, and Concentric Features

Plastic can recover slightly after the tool passes. This elastic response affects bore size and thread fit.

Bushings need correct clearance, roundness, and concentricity. Valve seats need aligned bores and sealing profiles. These features should be machined from common datums whenever possible.

Large or Multi-Axis Components

Large parts need rigid support and stable temperature. Long tool reach may reduce accuracy. Multi-axis machines can limit repositioning, but each setup still needs a clear datum strategy.



How Are Tolerances and Surface Quality Verified?

A CNC machine’s position display does not prove finished-part accuracy. PEEK expands during cutting and may move after clamping pressure is released.

Inspectors should measure critical features during production. Early checks can catch drift before the final operation. Final inspection should occur after the component reaches a defined temperature.

Different features need different tools. Coordinate measuring machines suit datum relationships. Bore gauges check internal diameters. Optical systems help with micro-holes and thin webs. Profilometers measure required surface texture.

Surface finish should match function. A sealing face needs controlled contact geometry. A bearing bore needs a suitable running surface. A fixture may need flat, repeatable datums. Unnecessary finish demands add time without improving performance.



How Machining Strategy Changes by Application

Precision requirements come from the operating environment.

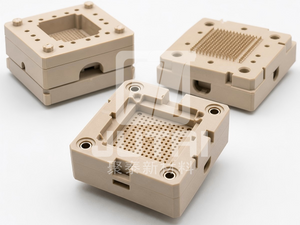

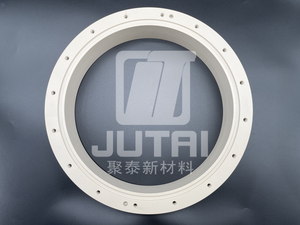

Semiconductor Test Hardware

Test sockets and fixtures may contain dense holes, thin webs, pockets, and stable datum features. They also need electrical insulation or controlled static behavior. Staged machining and non-contact inspection help protect fine geometry.

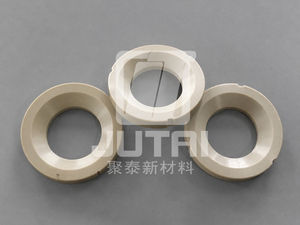

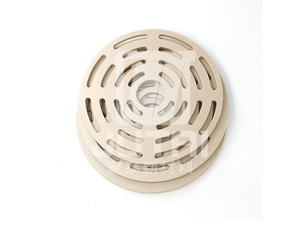

Valve and Fluid-Control Parts

Valve seats require accurate sealing angles, grooves, wall thickness, and concentricity. Material selection depends on pressure, fluid chemistry, temperature, particles, cycle rate, and mating surfaces. A reinforced grade may resist deformation but reduce sealing conformity.

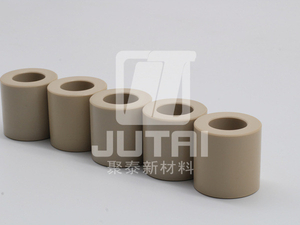

Bushings and Wear Components

Bushings need controlled bore size, running clearance, roundness, and flange geometry. Grade choice depends on load, speed, lubrication, shaft finish, and temperature. Designers must allow for thermal expansion rather than copying metal clearances.

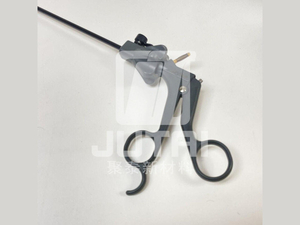

Medical, Aerospace, and Energy Parts

Medical fixtures may face steam, cleaning chemicals, and repeated handling. Aerospace parts need low mass and stable high-temperature performance. Energy components may face pressure, chemicals, wear, or hydrolysis.

Each field also has its own cleanliness, documentation, and validation needs.



From Prototype to Production

CNC machining works well for prototypes, replacement parts, and low-to-medium production. It avoids mold costs and supports quick design changes. Complex holes, pockets, and threads can be produced directly from rod, sheet, or tube.

Injection molding may suit stable high-volume designs. However, it requires tooling, process development, and shrinkage control. Machining remains useful during design validation or when annual demand stays limited.

A qualified supplier should understand PEEK grades, annealing, turning, milling, drilling, threading, thin walls, and multi-axis work.

A complete quotation request should include:

 2D drawings and 3D files

 Required PEEK grade and stock preference

 Prototype and production quantities

 Critical dimensions and datum structure

 Surface finish and inspection requirements

 Temperature, pressure, chemicals, and loads

 Cleaning, ESD, or regulatory needs

Tip:Request manufacturability feedback before freezing the drawing, especially for thin walls and deep holes.



Conclusion

Jutai combines PEEK material knowledge, precision CNC machining, inspection, and custom production support. Its natural, reinforced, electrical, and wear-focused options serve demanding parts. Careful grade selection, staged cutting, heat control, stable fixtures, and final inspection create reliable value. These services support prototypes, replacement components, and repeat production across advanced industries.



FAQS

Q: What are PEEK machined parts?

A: PEEK machined parts are precision components cut from rod, sheet, or tube.

Q: How are PEEK machined parts made?

A: PEEK machined parts use CNC turning, milling, drilling, finishing, and inspection.

Q: Why is annealing used?

A: It reduces stress, cracking, warpage, and dimensional movement.

Q: Are PEEK machined parts expensive?

A: PEEK machined parts cost more when tolerances or inspection needs increase.

Q: Is machining better than molding?

A: Machining suits prototypes. Molding suits stable high volumes.

Q: Why do thin PEEK walls deform?

A: Clamping, cutting heat, and released stress can move them.
