ULTEM 1000 PEI Rod Ø4–200mm | Manufacturer - JUTAI

Availability:
Quantity:
JUTAI manufactures ULTEM 1000 PEI rods in Ø4–200mm diameters, with lengths up to 3m. SABIC resin options, stock sizes, cut-to-length and CNC machining.

PEI rods are available in diameters from Ø4 to Ø200 mm, with standard lengths of 1,000 mm, 2,000 mm and 3,000 mm. SABIC ULTEM™ 1000 resin, commonly requested stock sizes, cut-to-length service, annealing and precision CNC machining are available.

JUTAI provides one-stop support from resin selection and stock-shape production to cutting, machining, inspection and finished PEI components.

JTYPEI® NA ULTEM™ 1000 PEI Rod Ø4–200 mm

ULTEM™ 1000 PEI Rod for Precision Machining

JTYPEI® NA is an unfilled, natural amber polyetherimide rod manufactured for precision-machined components used in high-temperature, electrical, semiconductor, aerospace, medical equipment and industrial applications.

The amorphous structure of PEI provides an excellent combination of mechanical strength, dimensional stability, creep resistance, electrical insulation, flame resistance and reliable long-term thermal performance.

JTYPEI® NA rods are available in diameters from Ø4 to Ø200 mm, with standard lengths of 1,000 mm, 2,000 mm and 3,000 mm. Commonly requested sizes are available from stock, while customized diameters, lengths and tolerances can be supplied according to customer requirements.

SABIC ULTEM™ 1000 resin can be selected for customers requiring recognized resin grades, material traceability and supporting resin documentation.

ULTEM™ is a trademark of SABIC.

ULTEM 1000 PEI rod Ø4–200 mm

Key Properties of ULTEM™ 1000 PEI Rod

Long-Term Heat Resistance

JTYPEI® NA provides reliable long-term performance at temperatures up to approximately 170°C, depending on mechanical load, pressure, chemical exposure and other operating conditions.

Its glass transition temperature is approximately 217°C, allowing PEI to retain good strength, stiffness and dimensional stability at elevated temperatures.

Final material suitability should be confirmed according to the actual operating temperature, duration, mechanical stress and environmental conditions.

High Mechanical Strength

Natural PEI provides high tensile and flexural strength, making it suitable for precision structural components, mechanical supports, rollers, bushings, spacers and electrical components.

The material offers a favorable strength-to-weight ratio and can replace metal in selected applications where electrical insulation, corrosion resistance and weight reduction are required.

Dimensional Stability

PEI has good dimensional stability, low molding shrinkage, low moisture absorption and relatively low thermal expansion.

These properties help machined components maintain dimensional accuracy during production, assembly and long-term operation.

For high-precision components with tight tolerances, controlled annealing can be provided before or during machining to reduce internal stress.

Creep and Fatigue Resistance

JTYPEI® NA offers good resistance to long-term deformation under mechanical load and repeated stress.

It is suitable for load-bearing components, spacers, supports, fixtures and other parts that must maintain their dimensions over extended service periods.

Electrical Insulation

Unfilled natural PEI provides excellent dielectric strength, high volume resistivity and stable electrical insulation performance across a wide temperature and frequency range.

Typical applications include insulating bushings, connector components, high-voltage spacers, sensor housings, terminal parts and semiconductor equipment components.

Inherent Flame Resistance

PEI is inherently flame-resistant without relying on additional flame-retardant additives in many standard grades.

It provides low smoke generation and can achieve UL94 V-0 ratings depending on the selected resin grade, product thickness and test conditions.

Applicable flame, smoke and toxicity requirements should be confirmed according to the final product, thickness and relevant industry standard.

Chemical and Hydrolysis Resistance

JTYPEI® NA offers good resistance to many oils, fuels, hydrocarbons, alcohols, weak acids, hot water and cleaning environments.

However, PEI may be affected by strong alkalis, chlorinated solvents and certain polar solvents.

Chemical compatibility must be evaluated according to the specific chemical medium, concentration, temperature, pressure, mechanical stress and exposure time.

Machinability

PEI rods are suitable for CNC turning, milling, drilling, grinding and other precision machining processes.

Compared with machining round components from large sheets or plates, PEI rods can reduce material waste and machining time when producing cylindrical parts.

Appropriate cutting tools, machining parameters, cooling methods and stress-relief procedures should be used to avoid overheating, cracking and dimensional changes.

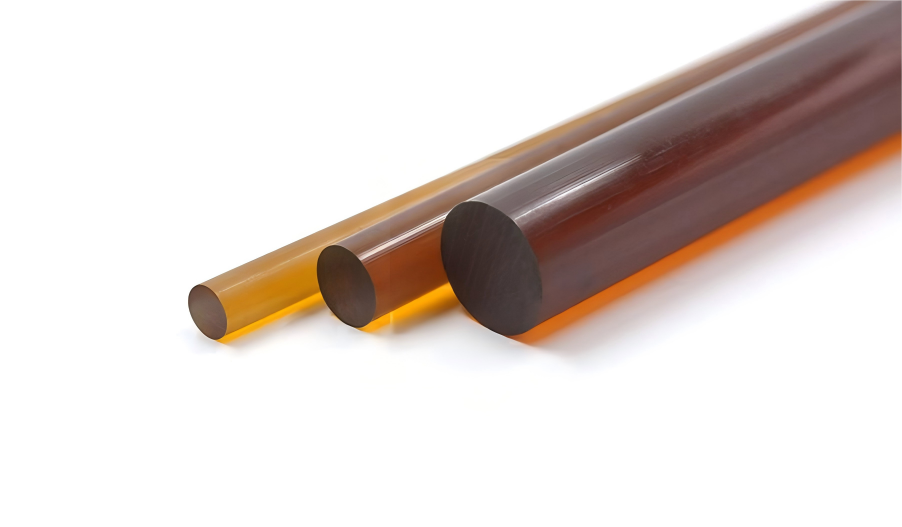

JTYPEI NA ULTEM 1000 natural PEI rods

Why Choose JUTAI PEI Rod?

Wide Diameter Range

JTYPEI® NA rods are available in diameters from Ø4 to Ø200 mm, covering small precision components and large industrial parts.

Lengths Up to 3,000 mm

Standard rod lengths include 1,000 mm, 2,000 mm and 3,000 mm.

Availability of specific diameter and length combinations should be confirmed before ordering.

SABIC ULTEM™ 1000 Resin Option

SABIC ULTEM™ 1000 resin can be supplied according to customer requirements for material performance, resin traceability and supporting documentation.

Stock Availability

JUTAI maintains stock of commonly requested PEI rod sizes to support samples, small-volume orders, urgent production and recurring purchasing requirements.

Current stock should be confirmed according to diameter, length, resin grade and quantity.

Customized Diameters and Lengths

Customized diameters, lengths and dimensional tolerances can be evaluated according to order volume, manufacturing process and technical requirements.

Cut-to-Length Service

PEI rods can be cut to the required length, helping customers reduce handling time, machining preparation and material waste.

Controlled Annealing

Annealing can be provided before or during machining to reduce internal stress and improve dimensional stability for precision components.

Precision CNC Machining

JUTAI provides CNC turning, milling, drilling, grinding and other machining services according to customer drawings or samples.

Machining tolerances depend on part geometry, dimensions, wall thickness, material grade and inspection requirements.

One-Stop Manufacturing

JUTAI services cover:

• Resin selection
• Material modification
• Extrusion
• Compression molding
• Annealing
• Cut-to-length service
• CNC turning
• CNC milling
• Drilling and grinding
• Dimensional inspection
• Component assembly
• Worldwide delivery

Quality and Documentation

JUTAI operates under an ISO 9001:2015 quality management system.

The following documents can be provided where applicable:

• Technical Data Sheet
• Resin Certificate of Analysis
• Certificate of Conformity
• Material Safety Data Sheet
• RoHS documentation
• REACH documentation
• Dimensional inspection report
• Material traceability information

Typical Applications

Semiconductor and Electronics

JTYPEI® NA PEI rods can be machined into:

• Wafer-handling rollers
• Insulating fixtures
• Semiconductor equipment bushings
• Guide rollers
• Electrical spacers
• Vacuum equipment components
• Sensor housings
• Connector components
• Precision positioning parts
• Test equipment components
• Cleanroom equipment parts
• Battery and electrical system components

PEI is particularly suitable for applications requiring electrical insulation, dimensional stability, flame resistance and reliable performance at elevated temperatures.

Material suitability for semiconductor processes should be confirmed according to cleanliness, outgassing, ionic contamination and chemical exposure requirements.

Precision machined components made from PEI rod

Aerospace and Transportation

PEI rods can be machined into lightweight structural and electrical components requiring flame resistance, low smoke generation, dimensional stability and reliable thermal performance.

Typical applications include:

• Electrical insulation components
• Lightweight supports
• Spacers and stand-offs
• Connector components
• Interior equipment components
• Sensor housings
• Fastener-related components
• Structural brackets
• Cable-management components
• Transportation electrical parts

Compliance with aerospace, railway or transportation flame, smoke and toxicity standards must be verified according to the selected resin grade, product thickness and final component.

Medical and Laboratory Equipment

Natural PEI can be used for:

• Medical instrument handles
• Sterilizable equipment components
• Laboratory fixtures
• Analytical equipment parts
• Instrument rollers
• Medical positioning components
• Diagnostic equipment components
• Electrical insulating parts
• Equipment housings and supports

Suitability depends on the selected resin grade, sterilization method, number of sterilization cycles, chemical exposure and applicable regulatory requirements.

Standard industrial PEI should not be represented as implant-grade or medical-certified material unless the selected resin and finished component meet the applicable requirements.

Automotive and New Energy

Typical applications include:

• Battery insulation components
• Sensor housings
• Electrical connector parts
• High-temperature spacers
• Charging-system components
• Motor insulation parts
• Automotive electrical components
• Structural supports
• Interior equipment components
• Thermal-management system components

JTYPEI® NA offers a lightweight, electrically insulating and corrosion-resistant alternative to conventional metals, with excellent dimensional stability, noise and vibration reduction, and inherent flame resistance. Its design flexibility enables complex geometries and integrated functions, while reducing finishing requirements and maintenance in suitable applications.

PEI Rod for Mechanical Engineering and Machined Parts

Material suitability must always be evaluated according to operating temperature, pressure, mechanical load, chemical medium, dimensional tolerance and expected service life.

SABIC ULTEM 1000 rod for CNC machining

Frequently Asked Questions

What diameters of ULTEM™ 1000 PEI rod are available?

JTYPEI® NA rods are available in diameters from Ø4 to Ø200 mm. Standard lengths include 1,000 mm, 2,000 mm and 3,000 mm. Customized diameters and lengths can be evaluated according to quantity and manufacturing requirements.

Is JTYPEI® NA manufactured from SABIC ULTEM™ 1000 resin?

JTYPEI® NA can be manufactured from SABIC ULTEM™ 1000 resin according to the order requirements. Resin traceability and the applicable resin Certificate of Analysis can be provided where available.

Can JUTAI manufacture finished PEI components?

Yes. JUTAI provides CNC turning, milling, drilling, grinding, annealing, dimensional inspection and component assembly according to customer drawings or samples.

What is the continuous service temperature of PEI rod?

JTYPEI® NA can provide long-term service at temperatures up to approximately 170°C, depending on mechanical load, pressure, chemical exposure and other operating conditions.

The final design should be evaluated according to the actual application rather than temperature alone.

What is the difference between ULTEM™ 1000 and ULTEM™ 2300?

ULTEM™ 1000 is an unfilled PEI grade offering balanced strength, toughness, electrical insulation and machinability.

ULTEM™ 2300 contains 30% glass fiber and provides higher stiffness, lower thermal expansion and improved dimensional stability. However, it is generally more abrasive to machining tools and less suitable where an unfilled, translucent material is required.

Is PEI resistant to chemicals?

PEI offers good resistance to many oils, fuels, hydrocarbons, alcohols and weak aqueous solutions.

It may be affected by strong alkalis, chlorinated solvents and certain polar solvents. Chemical compatibility should be confirmed under the actual operating conditions.

Can you provide material certificates?

Yes. The applicable TDS, resin COA, COC, MSDS, RoHS and REACH documentation can be provided where available.

What information is required for a quotation?

Please provide the rod diameter, length, quantity, dimensional tolerance, preferred resin grade, operating temperature, chemical medium, mechanical load and application.

For finished components, please also provide a 2D drawing, 3D model or physical sample.

Request a Quote

Please send us your required diameter, length, quantity, tolerance, resin grade and application.

Our technical team will recommend the appropriate PEI material, stock-shape size, manufacturing process and machining method.

Samples are available for material evaluation, machining trials and application testing.

Contact JUTAI for:

• Product quotations
• Stock confirmation
• Material selection
• Technical data sheets
• Resin certificates
• Samples
• Cut-to-length PEI rods
• Custom PEI rod production
• Precision CNC-machined PEI components
• Worldwide delivery

INQUIRY MESSAGE

Please quote JTYPEI® NA ULTEM™ 1000 PEI Rod:

Diameter: ___ mm
Length: ___ mm
Quantity: ___ pcs
Required Tolerance: ___
Preferred Resin: SABIC ULTEM™ 1000 / No Preference
Operating Temperature: ___
Mechanical Load: ___
Chemical Medium: ___
Application: ___
Required Certificates: ___
Machining Required: Yes / No
Drawing Available: Yes / No
Destination Country: ___

JTYPEI® NA Rod Technical Data Sheet

JTYPEI® NA Rod Technical Data Sheet

Property

Test Method

Unit

Typical Value

Color

Visual

—

Translucent Amber

Density

ISO 1183-1

g/cm³

1.28

Tensile Strength

ISO 527-2

MPa

≥110

Tensile Modulus

ISO 527-2

GPa

≥3.0

Elongation at Break

ISO 527-2

%

≥10

Charpy Impact Strength (Notched)

ISO 179

kJ/m²

≥4.0

Flexural Strength

ISO 178

MPa

≥150

Flexural Modulus

ISO 178

GPa

≥3.0

Rockwell Hardness

ISO 2039-2

M

≥100

Glass Transition Temperature

ISO 11357-3

°C

217

Coefficient of Linear Thermal Expansion

ISO 11359-2

10⁻⁶/K

≤65

Long-Term Service Temperature

UL 746B

°C

170

Heat Deflection Temperature (1.80 MPa)

ISO 75-2

°C

≥200

Water Absorption (23°C, Water, 24 h)

ISO 62

%

≤0.4

Flammability

UL 94

—

V-0

Volume Resistivity

IEC 62631-3-1

Ω·cm

≥10¹⁵

Dielectric Strength

IEC 60243-1

kV/mm

≥26

Dielectric Constant (1 MHz)

IEC 62631-2-1

—

3.4

Dielectric Loss (1 MHz)

IEC 62631-2-1

—

5.44 × 10⁻³

Available PEI Rod Sizes and Supply Options

JUTAI supplies natural PEI rods in diameters from Ø4 to Ø200 mm, with lengths of 1,000 mm, 2,000 mm and 3,000 mm available depending on diameter and production requirements.

We support distributors, CNC machining companies and industrial manufacturers with standard stock sizes, custom cutting and recurring bulk orders.

SABIC ULTEM™ 1000 resin options and applicable material documentation are available upon request.

For machining-specific applications, please also see our PEI Rod for Mechanical Engineering and Machined Parts.

JTYPEI® NA Natural PEI Rod Specification

JTYPEI® NA Natural PEI Rod Specification

Diameter (mm)

1,000 mm Weight (kg)

2,000 mm Weight (kg)

3,000 mm Weight (kg)

4

0.025

0.051

0.076

5

0.037

0.073

0.11

6

0.05

0.1

0.15

8

0.08

0.16

0.25

10

0.12

0.24

0.37

12

0.17

0.34

0.51

15

0.25

0.5

0.75

20

0.44

0.88

1.32

25

0.68

1.37

2.05

30

0.97

1.94

2.91

35

1.31

2.62

3.93

40

1.7

3.4

5.1

45

2.15

4.29

6.44

50

2.73

5.46

8.2

55

3.28

6.57

9.85

60

3.78

7.57

11.35

65

4.47

8.94

13.4

70

5.28

10.56

15.84

75

6.08

12.17

18.25

80

6.96

13.92

20.88

90

8.74

17.48

26.22

100

10.89

21.77

32.66

110

12.9

25.8

38.7

120

15.29

30.57

45.86

130

18.01

36.01

54.02

140

20.81

41.61

62.42

150

23.81

47.61

71.42

160

27.17

54.35

81.52

170

30.59

61.18

91.77

180

34.2

68.41

102.62

190

38.03

76.05

114.08

200

42.05

84.09

126.14

Previous:
Next:
Contact us

PRODUCT CATEGORY

SIGN UP FOR INDUSTRY ALERTS NEWS AND INSIGHTS FROM EQUITA

ABOUT JUTAI

Our current product series including PEEK, PEI, PSU and PPS profiles of sheets, rods, tubes, with a large inventory of standard sizes available. And customization of shape & color & material filled can also supply.

QUICK LINKS

PRODUCTS

CONTACT

1 Building 2, Houying Technology Industrial Park, No.1 Jiangling East Road.
2  Wujiang Economic and Technological Development Zone, Suzhou City, PRC.
  +86-17712498436/+86-51265131882
Copyright © 2026 Suzhou Jutai HPM Co., Ltd. All Rights Reserved. Sitemap|Privacy Policy|苏ICP备20002525号-2
