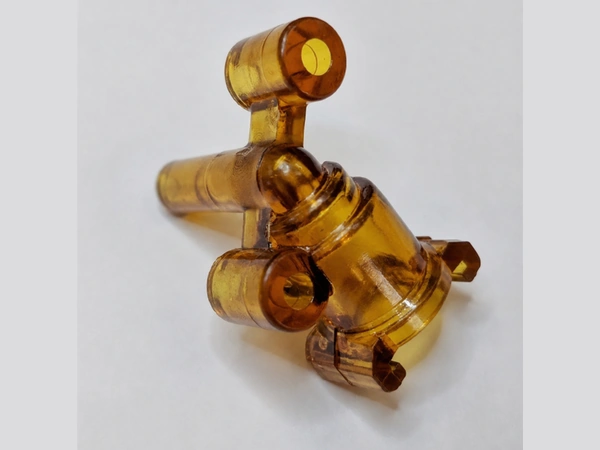

PEI Medical Device Components Manufacturer | Custom CNC Machined ULTEM Parts Supplier

Availability:

Quantity:



High-performance PEI (Ultem®) components engineered for demanding medical and laboratory applications. Suzhou Jutai provides precision PEI components manufactured from high-quality Polyetherimide materials, offering excellent dimensional stability, chemical resistance, and high-temperature performance. PEI components are ideal for medical devices requiring repeated sterilization cycles, reliable mechanical strength, and long-term performance.
Inquire Add to Basket

Product Introduction

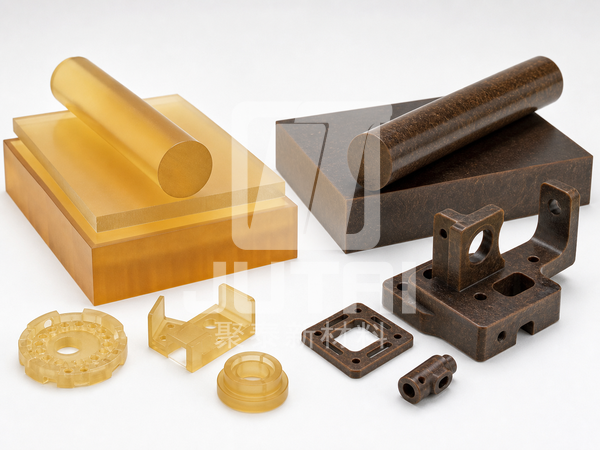

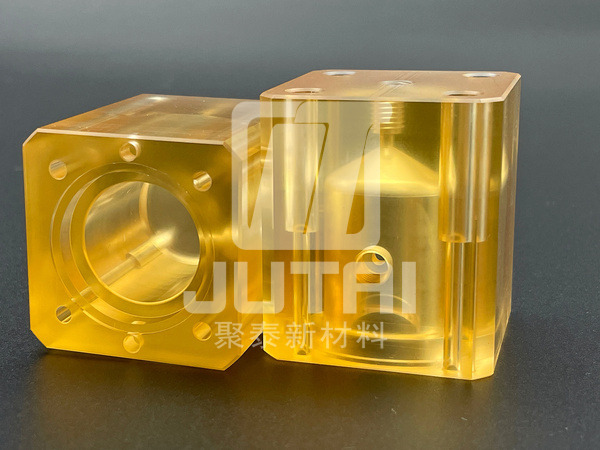

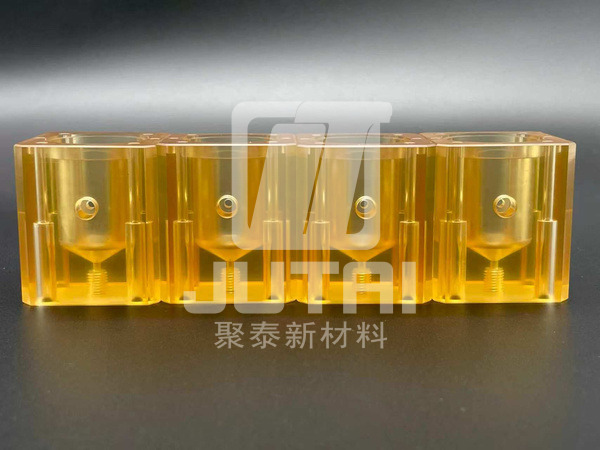

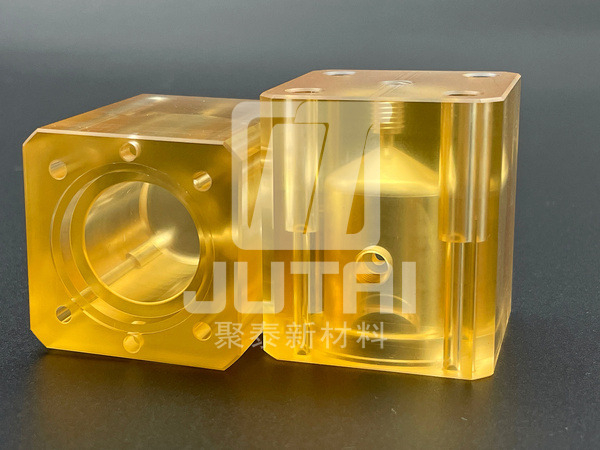

PEI medical device components are lightweight, dimensionally stable parts used in diagnostic equipment, reusable instrument assemblies, laboratory systems, fluid-management hardware, and medical manufacturing tools. Machined examples include instrument handles, electrical housings, manifolds, sterilization-tray inserts, sight components, alignment guides, connector supports, and equipment fixtures. ULTEM 1000 offers an amber translucent appearance that can support visual inspection, together with insulation and inherent flame performance. ULTEM 2300 is reinforced for medical-equipment structures that need higher rigidity or better fastener-load retention. JUTAI produces custom PEI medical parts from customer drawings using CNC milling, turning, and selected grinding operations. Material decisions are based on intended use, cleaning chemistry, sterilization method, mechanical load, fluid contact, documentation, and applicable device controls. A stock shape or resin trade name alone does not establish biocompatibility or regulatory suitability. JUTAI supports prototype and repeat manufacturing while the medical-device company retains responsibility for final material approval, validation, and product compliance.

Key Features

Nonmetallic construction for lightweight diagnostic and reusable medical equipment
Translucent ULTEM 1000 can support visual confirmation inside selected components
ULTEM 2300 increases rigidity for frames, holders, and loaded assembly hardware
Electrical insulation suits sensor, connector, and powered medical-system components
Machined geometry supports custom channels, pockets, handles, and alignment interfaces
Material documentation and sterilization requirements can be reviewed before production
Prototype quantities allow functional validation before tooling or larger batch commitment

Material Selection

Medical material selection must be tied to patient contact, fluid contact, cleaning, sterilization, service cycles, mechanical duty, and required certificates. The following grades describe engineering options only; suitability must be established for the finished device and intended market.

Material Grade	Engineering Characteristics	Application Fit
PEEK Natural	Unfilled PEEK offers greater heat, hydrolysis, chemical, and fatigue capability for demanding reusable-device components.	Consider for loaded instrument parts, repeated steam exposure, and medical hardware that exceeds the validated PEI range.
PEEK CF30	Carbon reinforcement raises stiffness and dimensional retention but changes color, conductivity, surface character, and imaging behavior.	Restricted to validated structural medical-equipment uses where fibers and electrical properties are acceptable.
PEEK GF30	Glass-filled PEEK supports rigid frames and sustained loads while presenting different wear and surface considerations from natural PEEK.	Used for enclosed supports or fixtures after cleaning, contact, and documentation requirements are confirmed.
ESD PEEK	Dissipative PEEK manages charge around sensitive diagnostic electronics rather than acting as a maximum-resistance insulator.	A specialized material for production tooling and electronic equipment components with a defined ESD design.
PEI ULTEM 1000	Natural ULTEM provides translucent amber color, electrical insulation, stable dimensions, and inherent flame behavior.	Suited to medical housings, handles, manifolds, visual components, laboratory holders, and nonimplantable equipment parts.
PEI ULTEM 2300	Glass-filled ULTEM improves modulus, compression resistance, and dimensional holding around screws or clamps.	Appropriate for reinforced diagnostic-equipment structures and manufacturing fixtures after medical documentation is reviewed.

Manufacturing Capability

Medical PEI parts are planned around cleanable surfaces, assembly function, fluid paths, and protected patient- or product-contact zones. Fixtures and tools are kept separate from finished device components in the production and inspection documentation.

Multi-axis milling: diagnostic housings, instrument handles, manifolds, guides, and contoured equipment parts
CNC turning: fluid connectors, collars, insulating sleeves, caps, and circular medical-system hardware

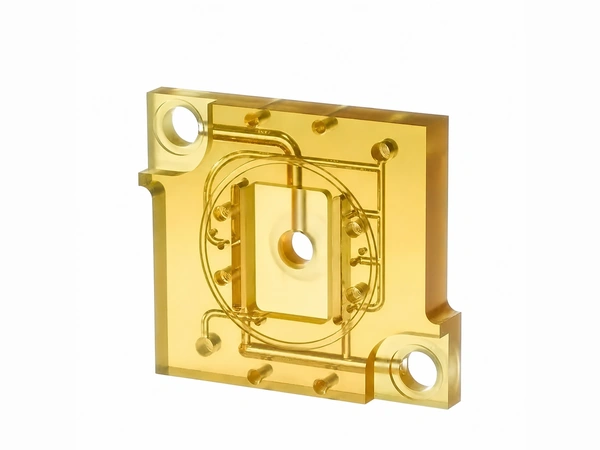

Channel machining: intersecting passages, sensor recesses, viewing pockets, and gasket interfaces
Precision grinding: controlled reference thickness on stable fixtures or selected equipment components
Build-to-print manufacturing: documented prototypes and batches produced from approved drawing revisions

Typical Applications

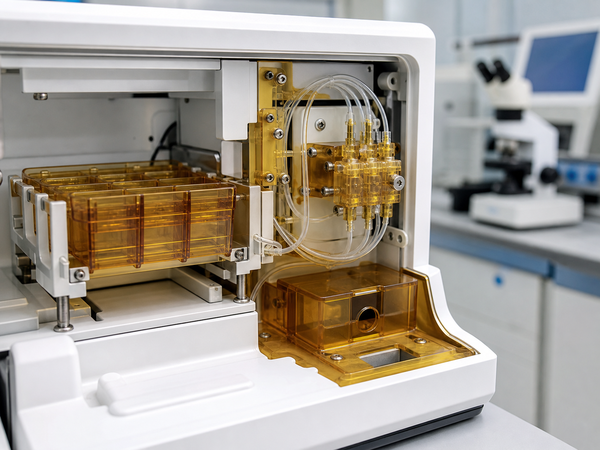

Diagnostic analyzer housings and internal supports
Reusable instrument handles and control components

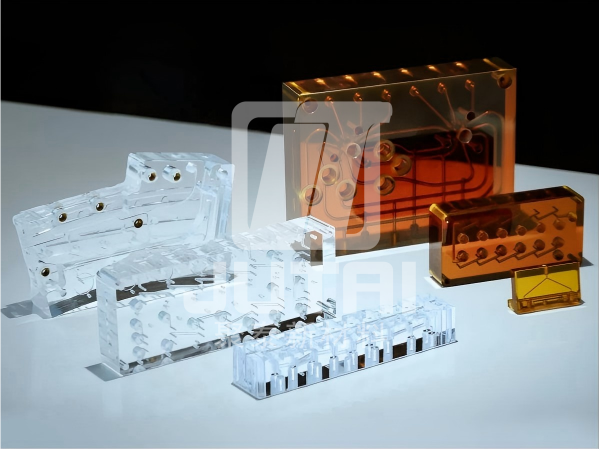

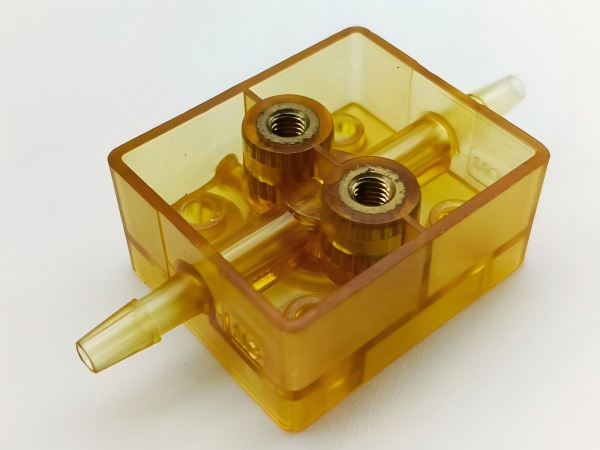

Laboratory manifolds and fluid-routing hardware
Sterilization-tray inserts and equipment holders
Electrical connector supports and sensor insulation
Medical-component assembly, inspection, and production fixtures

Technical Advantages

Engineering review distinguishes device components from manufacturing fixtures
Cleaning and sterilization conditions are recorded before grade recommendation
Amber translucency can assist visual checks without adding a window
PEI stress is managed through staged machining and restrained clamping
Traceability and certificate expectations can be defined at quotation stage
JUTAI combines 15 years of high-performance-plastics work with medical, semiconductor, and industrial machining experience. SABIC ULTEM PEI, Victrex PEEK, PSU, and PI are available, and approved dimensions may reach ±0.005 mm under a qualified process. Medical approval and finished-device validation remain project-specific.

FAQ

What are PEI medical device components?

They are machined ULTEM housings, handles, manifolds, supports, connectors, guides, and equipment parts used in medical or laboratory systems.

Why choose PEI ULTEM instead of metal for medical equipment?

PEI lowers weight, supplies electrical insulation, resists corrosion, and can provide amber translucency for visual monitoring in suitable designs.

Can JUTAI provide custom machining for PEI medical parts?

Yes. Customer-specific pockets, channels, threads, sealing faces, handles, electrical interfaces, and alignment features can be CNC machined from approved drawings.

Is ULTEM automatically suitable for patient contact?

No. The exact grade, stock form, traceability, biocompatibility, sterilization validation, contact type, and regulatory pathway must be approved for the finished device.

What information should be included in a medical PEI RFQ?

Provide intended use, contact classification, ULTEM grade, cleaning and sterilization cycles, fluids, loads, certificate needs, drawing, inspection plan, and lot quantity.

Request a Custom Machining Review

Send the controlled medical drawing with intended use, contact classification, sterilization, cleaning media, material-document requirements, and quantity. JUTAI will evaluate machining feasibility without assuming device approval.
