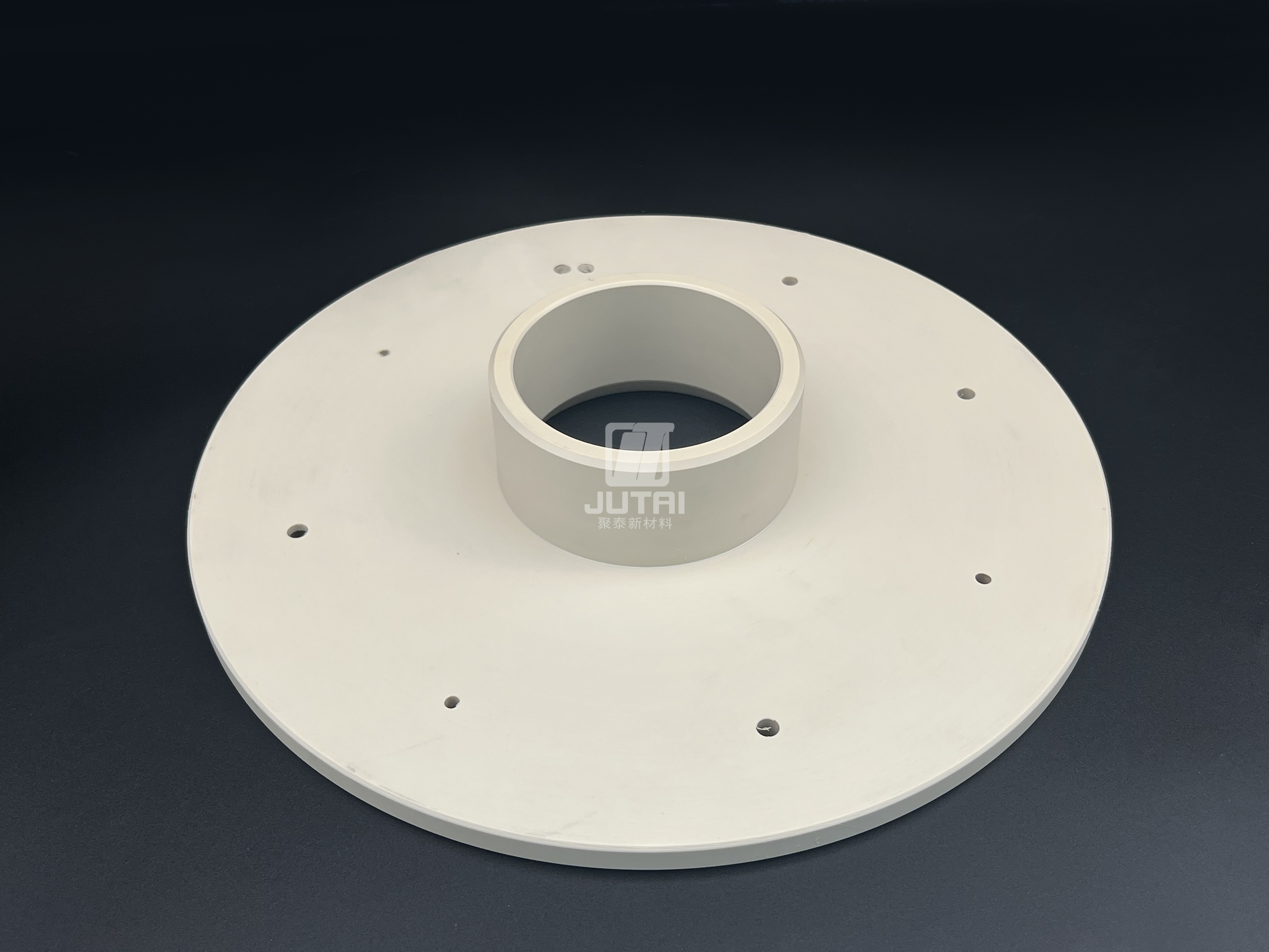

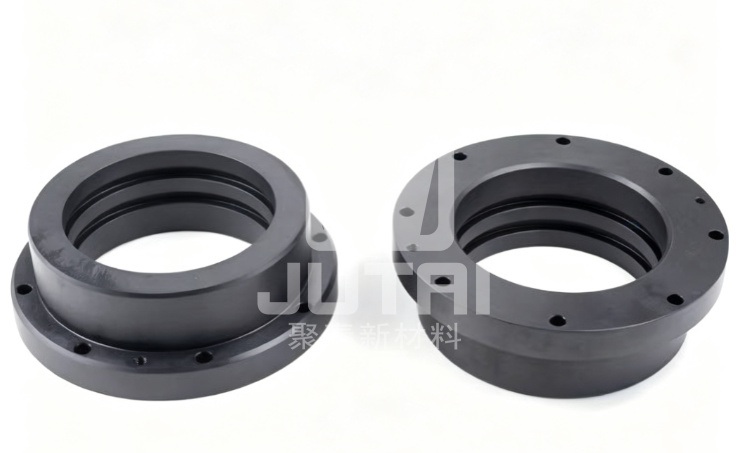

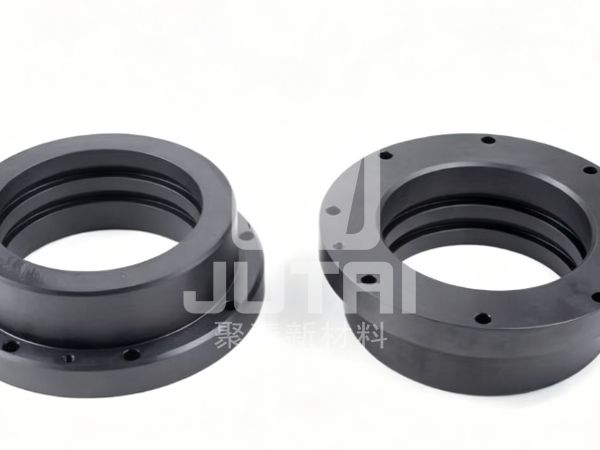

PEEK Flange | Custom Machined High Performance PEEK Components

Availability:
Quantity:

Jutai provides high-performance PEEK flanges and customized PEEK machined components with excellent temperature resistance, chemical resistance and dimensional stability for semiconductor, chemical and precision industries.

PEEK Flange is a precision-engineered component made from advanced engineering plastic PEEK, which is widely recognized as one of the highest-performance thermoplastic materials.

Due to its excellent mechanical properties and chemical stability, PEEK flange can maintain reliable performance under harsh working conditions, including high temperature, corrosive chemicals, vacuum environments and high-purity applications.

PEEK flanges are commonly manufactured through CNC machining processes using PEEK rods, sheets or tubes. Depending on application requirements, reinforced PEEK materials such as Carbon Fiber Reinforced PEEK (CF30 PEEK) and Glass Fiber Reinforced PEEK (GF30 PEEK) can also be selected to improve strength, wear resistance and dimensional stability.

Jutai supplies premium PEEK materials and supports customized solutions for various industrial applications.

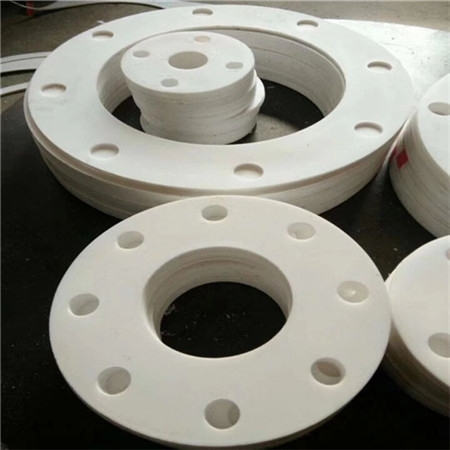

Flange 4.jpg

Excellent High Temperature Resistance

  • Continuous working temperature up to approximately 260°C

  • Maintains mechanical strength under elevated temperatures

  • Excellent thermal stability and low deformation

Superior Chemical Resistance

PEEK flange provides excellent resistance to:

  • Acids

  • Alkalis

  • Organic solvents

  • Oils and fuels

Suitable for applications involving aggressive chemical environments.

High Mechanical Strength & Dimensional Stability

  • Excellent tensile strength

  • Outstanding creep resistance

  • Low moisture absorption

  • Stable dimensions during long-term operation

Reinforced PEEK grades are available for applications requiring higher mechanical performance.

Excellent Electrical Insulation

  • Excellent dielectric properties

  • Low electrical conductivity

  • No metal ion contamination

Ideal for semiconductor and high-purity equipment applications.

Lightweight & Corrosion Resistant

Compared with metal flanges:

  • Lower weight

  • Easier installation

  • No rust or corrosion issues

  • Longer service life in harsh environments

Flange 5.webp

PEEK Flanges are widely used in industries requiring high-performance materials:

Semiconductor Industry

  • Vacuum equipment

  • Wafer processing systems

  • High-purity fluid systems

  • Semiconductor manufacturing components

Chemical Processing Industry

  • Corrosive fluid systems

  • Chemical equipment

  • Pipeline connection components

Medical & Pharmaceutical Industry

  • Sterilization equipment

  • Medical devices

  • High-purity components

Aerospace Industry

  • Lightweight precision components

  • High-performance mechanical parts

Oil & Gas Industry

  • High-temperature sealing systems

  • Chemical-resistant components

Item

Description

Material

PEEK (Polyether Ether Ketone)

Available Grades

Virgin PEEK / CF30 PEEK / GF30 PEEK

Color

Natural / Black

Processing Method

CNC Machining, Turning, Milling

Temperature Resistance

Up to 260°C

Density

Approx. 1.3 g/cm³

Working Environment

High Temperature, Chemical, Vacuum, High Purity

Raw Material Forms

PEEK Sheet, PEEK Rod, PEEK Tube

Customization

Available according to drawings and requirements
