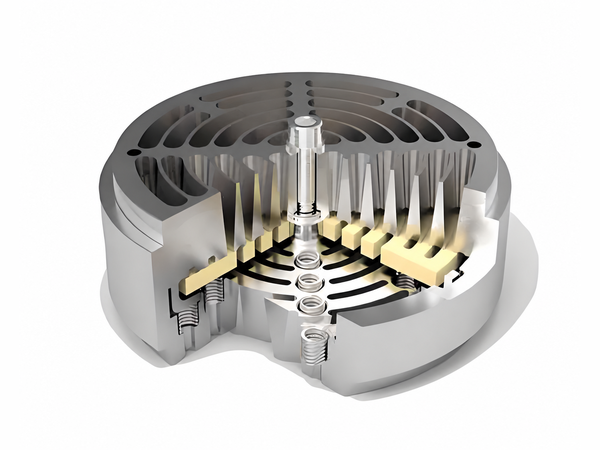

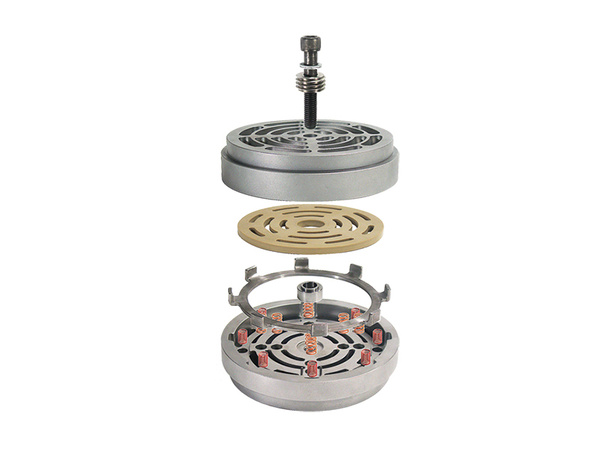

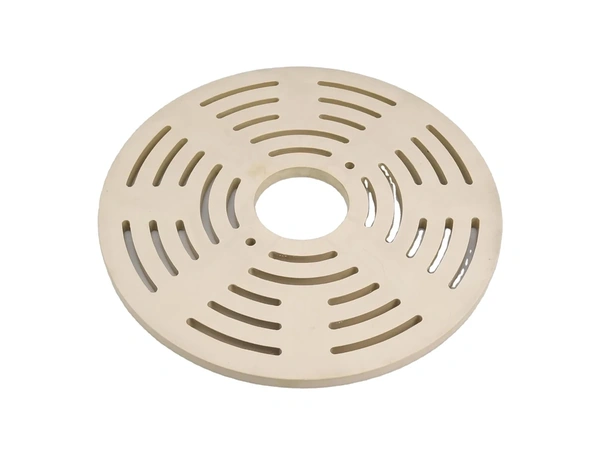

| A PEEK compressor valve plate is a lightweight sealing element that opens and closes in response to pressure changes inside a reciprocating compressor. Valve plates, rings, strips, and poppets must move quickly, seal consistently, and survive repeated impact, flexing, heat, gas exposure, lubrication, and occasional liquid carryover. | |||||||||

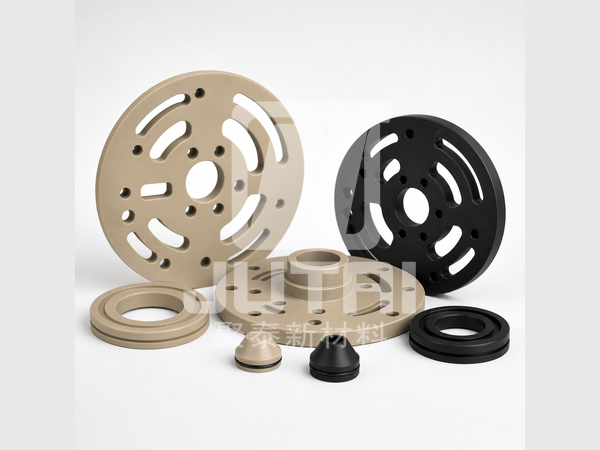

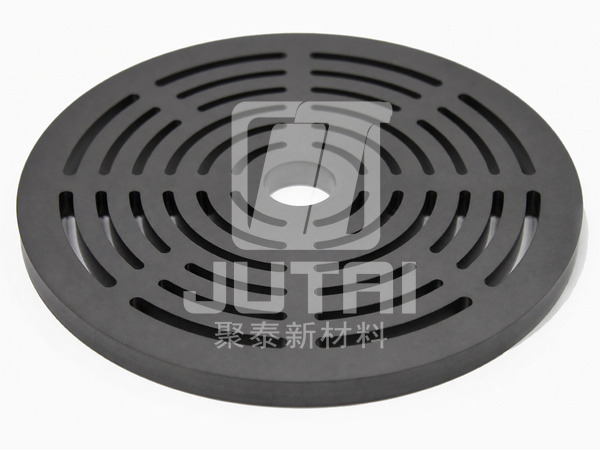

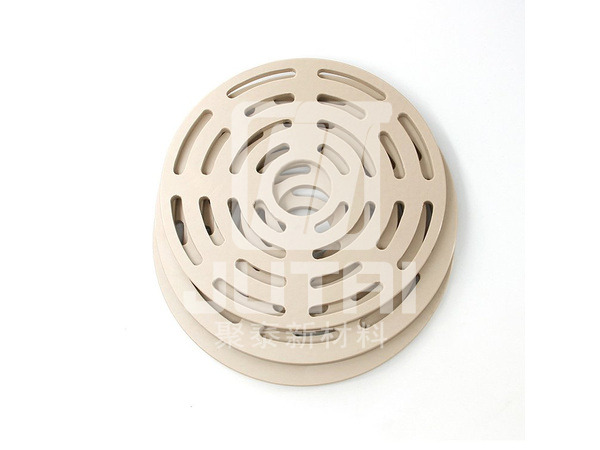

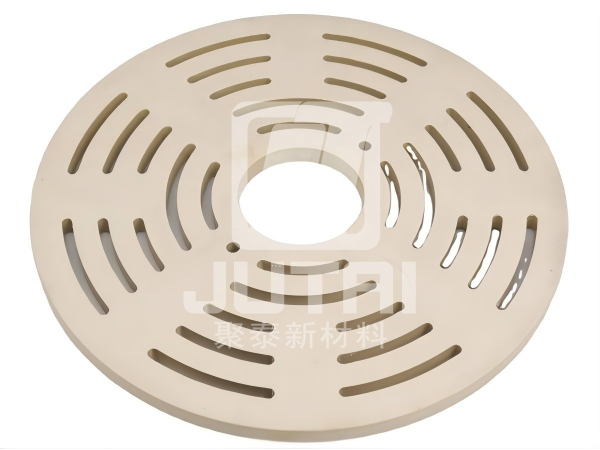

JUTAI manufactures custom CNC machined PEEK compressor valve components from customer drawings and specified resin grades. Compared with steel, a properly designed PEEK valve element can reduce moving mass and inertia, limit corrosion, damp impact, and protect mating hardware. Carbon- or glass-reinforced grades are frequently evaluated for stiffness, fatigue, creep resistance, and dimensional stability, while natural PEEK may suit specific chemical or lower-load duties. Material selection depends on gas composition, suction and discharge temperature, differential pressure, compressor speed, lubrication, valve design, debris, and expected service interval. Thickness, flatness, flow openings, edge profile, fiber orientation, and surface condition all affect dynamics and leakage. JUTAI supplies prototype plates, replacement components, and repeat batches for process gas, industrial air, refrigeration, petrochemical, hydrogen, and specialty compressor systems after application review.
JUTAI supplies peek compressor valve plate, custom peek compressor valve plate components, and precision CNC machined high-performance plastic parts to drawing. Buyers seeking a peek compressor valve plate manufacturer, custom machining supplier, or engineered PEEK and PEI parts partner can submit CAD files for review.
Low moving mass for fast valve response and reduced inertia
Fatigue, impact, and wear performance for repeated compressor cycles
Resistance to many process gases, oils, moisture, and chemicals
Dimensional stability across suction and discharge temperatures
Custom plate, ring, strip, poppet, and profiled-flow designs
Noncorroding alternative to selected metallic valve elements
Reinforced grades for stiffness and creep resistance
A compressor valve plate experiences rapid flexing, impact, pressure differential, heat, gas chemistry, and possible liquid carryover. Material choice must therefore balance low inertia with fatigue strength, sealing response, dimensional retention, and wear against the seat and guard.

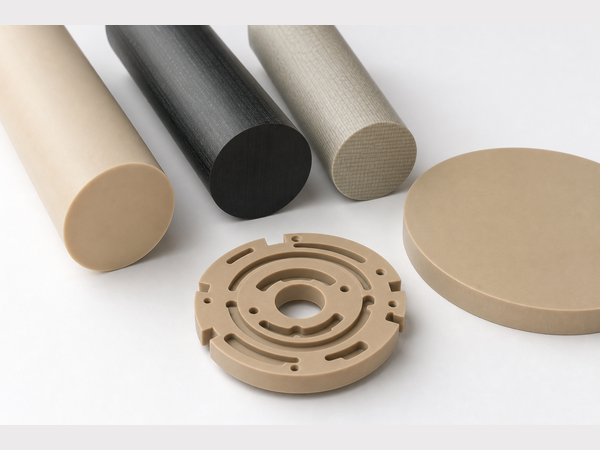

Material Grade | Engineering Characteristics | Application Fit |
|---|---|---|
PEEK Natural | Natural PEEK offers toughness, fatigue resistance, chemical durability, and lower density than metallic plate materials. | Suitable for selected clean-gas and moderate-load plate designs where unfilled resilience supports repeated movement. |
PEEK CF30 | Carbon-filled PEEK raises stiffness, creep resistance, thermal conductivity, and resistance to repeated mechanical stress. | Often evaluated for demanding compressor plates after fiber orientation, impact behavior, and sealing conformity are engineered. |
PEEK GF30 | Glass reinforcement gives a rigid plate with stable port geometry and reduced thermal movement. | Potentially useful for certain valve designs, subject to fatigue validation and counterface compatibility. |
ESD PEEK | ESD PEEK controls electrostatic charging but does not inherently improve dynamic compressor-valve performance. | Reserved for unusual gas-handling systems where charge dissipation is a documented operating requirement. |
PEI ULTEM 1000 | Unfilled PEI is lightweight and insulating but has a different fatigue, chemical, and temperature envelope from PEEK. | More appropriate for auxiliary compressor fixtures or protected low-duty components than severe reciprocating plates. |
PEI ULTEM 2300 | Glass-filled ULTEM provides structural stiffness and stable dimensions within PEI limits. | Consider for static compressor supports or guards only after the dynamic duty and gas exposure are reviewed. |
