Custom OEM PEEK, PEI, PSU & PPS Parts

​​​​​​​

Customized Service
Custom Services Process
  • Jutai Custom Services Process

    Developing Solutions Based on Customer Needs: Engage in close communication with the customer to understand the detailed specifications, application requirements, performance standards, and more. Sample Verification: Create samples based on customer requirements, conduct testing and validation, and ensure the samples meet the requirements before starting mass production. Mass Production and Delivery: Use the appropriate production method for mass production, ensuring strict quality control and testing before delivery to ensure product stability and consistency.

  • Polymer Pellets Customization

    Selecting Base Raw Materials: First, based on the material's usage conditions (temperature, pH, strength, wear resistance, conductivity, anti-static requirements, etc.), our materials R&D team will choose the appropriate resin (PAEK, PEI, PSU, PPS) and determine whether any modification materials are needed. They will also finalize the selection and proportion of additives to meet the customer's specific needs.

  • Profile Dimensions Customization

    Determine Profile Requirements: First, clarify the application scenario and processing method for the profiles. For example, whether it's for mechanical parts, electronic components, medical devices, or other special uses. Material Selection: PEEK, PEEK CF30, PEEK GF30, ESD PEEK, Wear-resistant PEEK, Conductive PEEK, PEI, PEI GF30, PSU, PPS GF40, and custom materials from particles for special conditions. Custom Dimensions: Design the profile's dimensions based on customer requirements, including thickness, width, length, etc. This process must consider tolerance control during molding to ensure the final product meets precision requirements. Mold Design and Processing: Design suitable molds (e.g., injection molds or extrusion molds) for custom profiles and process them according to the size requirements. Adjust Processing Techniques: Adjust the processing methods (e.g., extrusion, injection molding) based on the profile's size and performance requirements to ensure uniformity and consistency during molding.

  • Finished Parts Customization

    Application Scenario Analysis: Analyze the performance requirements of the product based on the customer's actual application needs, such as mechanical strength, high-temperature resistance, corrosion resistance, anti-static properties, etc. Material Selection: Choose materials based on the operating conditions, with customization available from particles to profiles. Design and Optimization: Design the product based on its shape, function, and usage environment. At this stage, the material's flowability, curing properties, and final performance must be considered. Process Selection: Choose the appropriate production process (e.g., injection molding, extrusion, CNC machining) based on the complexity of the custom product. For complex geometries, precision machining or 3D printing may be required. Quality Control: Implement strict quality control and testing during production to ensure that each custom product meets the desired performance and dimensional requirements. Post-Processing and Finishing: After the product is molded, post-processing such as surface treatment, heat treatment, and cleaning may be required to further enhance its performance and appearance.

Conceptual electrolyzer frames — large circular frame: PSU (JUTAIPSU®), Ø1200 mm Conceptual electrolyzer frames — large circular frame: PSU (JUTAIPSU®), Ø1200 mm

High-Performance Plastics for Hydrogen Electrolyzer Bipolar Plates

Background
In alkaline water electrolysis (AWE) and proton-exchange-membrane (PEM) electrolyzers, the stack needs both electrically conductive parts and insulating structural parts. Conventional metal frames and plates add weight and cost as stacks scale up. Producers are therefore evaluating high-performance engineering plastics for electrolyzer frames, spacers, sealing supports, manifolds and—where specially compounded and validated—conductive bipolar-plate programs.
Natural unfilled PEI and PSU are electrically insulating grades. They are well suited to frames and isolation parts, and should not be described as conductive bipolar plates unless a conductive compound is developed and tested for conductivity, contact resistance, chemical stability and long-term electrochemical performance.
Customer need
OEM programs typically ask for lighter stacks, corrosion resistance in alkaline or acidic media, dimensional stability under compression and heat, reliable electrical insulation where required, and thickness / flatness control that protects sealing and stacking. Production must avoid sealing leaks, stacking misalignment, weld-line cracking in injection molding, and drift in thin-wall geometry.
Materials selected — why PSU and PEI matter
JUTAI matches grades to electrolyzer type and part function:
  • AWE insulating frames & structural parts: JUTAIPSU® NA (polysulfone), JUTAIPEEK® PEEK, JUTAIPPS® PPS GF40
  • PEM / protected insulating & structural parts: JTYPEI® NA PEI (polyetherimide), PEEK, PPS
  • Conductive bipolar-plate development: specially formulated conductive compounds only, with project-specific validation
JUTAIPSU® NA (PSU) — amorphous thermoplastic valued for dimensional stability, hydrolysis resistance (hot water / aqueous media), electrical insulation and useful strength near a glass-transition temperature of about 187°C. Suitable candidate uses include AWE electrolyzer frames, spacer and support plates, manifolds, electrical isolation parts and machined structural panels. Compatibility with concentrated KOH must be verified for concentration, temperature, stress and exposure time. Sheets are available roughly 1–100 mm thick (standard width 620 mm; wider formats on request), with cut-to-size, annealing and CNC machining.

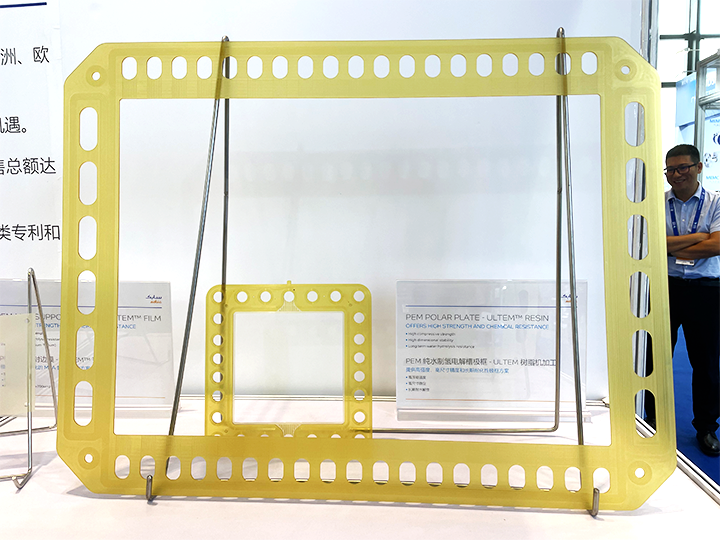

JTYPEI® NA (PEI) — high stiffness, creep and fatigue resistance, corrosion resistance, dielectric strength, high modulus, heat resistance and inherent flame retardancy (UL 94 V-0 typical for the grade family). These mechanical and chemical traits make PEI a preferred choice for many insulating electrolyzer frames. JUTAI can supply PEI sheet down to about 1 mm and machine or mold frames with single-piece thickness control in the 0.02–0.05 mm range where the process window allows. Long-term service temperature is typically around 170°C (Tg ~217°C). For higher stiffness and lower thermal expansion under compression, JTYPEI® GF30 (e.g. ULTEM™ 2300 class) can be evaluated.
Process
From application analysis through material choice, Moldflow-assisted injection or CNC process selection, sample verification, then controlled mass production. Manufacturing challenges addressed include stacking and sealing accuracy; weld-line cracking; conductive processing only where a conductive compound is specified; thickness / flatness control for thin frames and plates; wear of fine water-channel tooling. Capabilities: Demag precision injection 50–500T, extrusion of sheets/rods, CNC to ±0.005 mm for prototypes and production tooling support.
Result
Compared with metal frames / plates in the same duty, plastic solutions have delivered roughly 50% cost reduction and about 60% weight reduction in PEI frame programs publicly described for hydrogen electrolyzers, with shorter cycles once tooling and process windows are locked. Broader plastic bipolar-plate / stack-part programs on JUTAI’s OEM line have also shown about 30%–50% cost reduction and 50%–60% weight reduction versus metal, depending on design and grade.
Related

PAEK Family Solutions — From Resin Blend to Finished Parts

Background

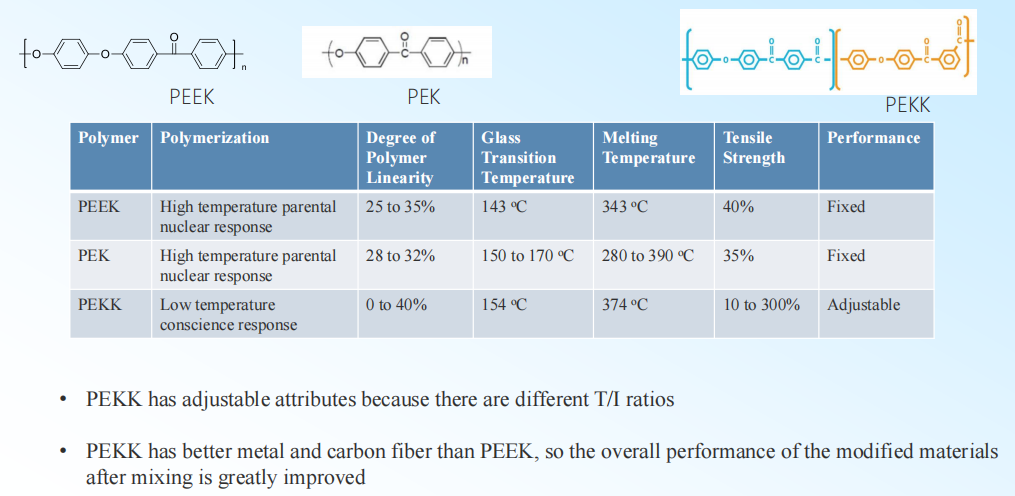

Polyaryletherketone (PAEK) covers PEEK, PEK, PEKK and their blends—semi-crystalline thermoplastics with alternating ether and ketone links, valued for mechanical strength, thermal stability, and chemical resistance. Many OEM programs need performance that a single neat grade cannot deliver, or need a supplier who can carry the part from modified pellets through profiles and finished components.
Customer need
Customers typically ask JUTAI to tune stiffness, wear, conductivity/ESD, or process window; then to prototype quickly and scale to volume without changing suppliers mid-program. Support for 0→1 development and 1→100 iteration is expected, including mold design, extrusion, injection, and CNC.
Material approach

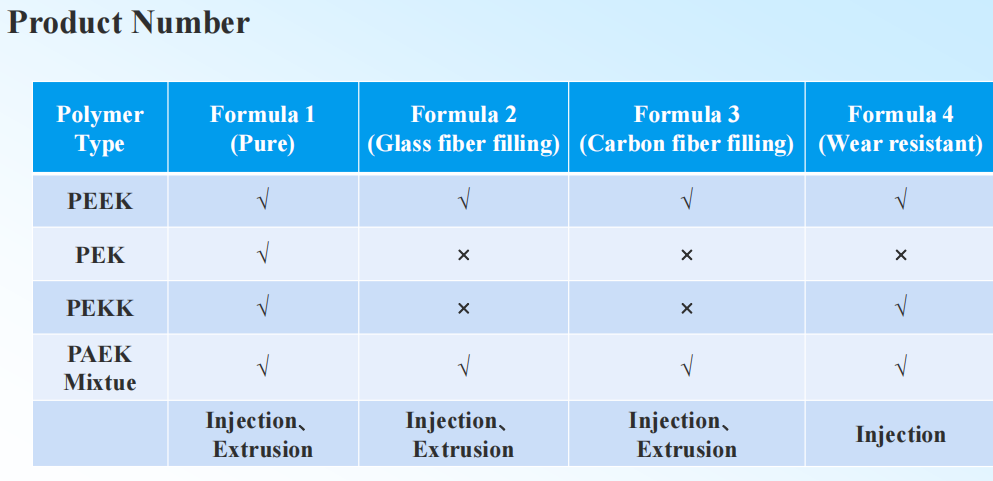

JUTAI integrates PAEK family members and adjusts blend ratios to hit application-specific targets. Resin sourcing includes first-tier PAEK suppliers (strategic cooperation with Victrex since 2018; also SABIC, BASF, Solvay where applicable). Stock and custom routes cover natural, GF/CF, wear (WR), conductive, and ESD grades under the JUTAIPEEK® family. In-house R&D has studied a broad set of known PAEK chemistries to develop compounded grades; a 2024 joint venture with overseas experts further focuses on PAEK blend formulation.
Process
One chain: material selection / custom compounding → structural design support → extrusion of sheets/rods (incl. wide-sheet capability) or precision injection → CNC finishing (tolerance down to 0.005 mm; parts >3000 mm possible) → inspection. Customers can enter at pellets, profiles, or finished parts.
Result
A single OEM partner for PAEK from formulation to mass-produced parts, reducing multi-vendor handoffs and shortening iteration cycles for 0→1 and 1→100 programs across semiconductor, energy, aerospace, petrochemical, and machinery uses.

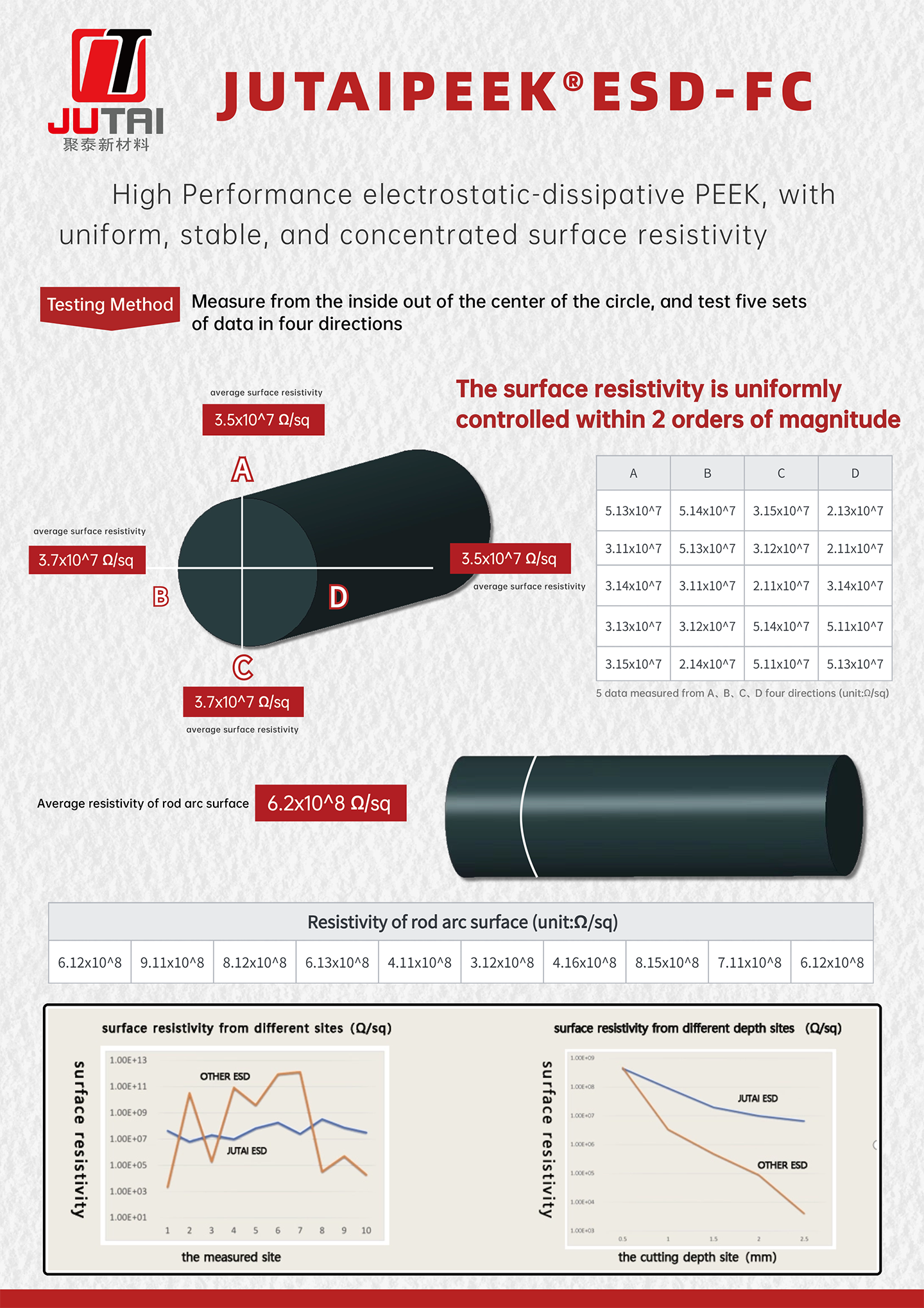

ESD PEEK with Stable Surface Resistivity 10^7–10^9 Ω/sq — JUTAIPEEK® ESD-FC

Background
Semiconductor and display lines need permanent antistatic plastics for wafer carriers, chip trays, LCD equipment parts, and fixtures. Many commercial ESD PEEK profiles target roughly 10^6–10^9 Ω/sq by adding carbon powder. Powder can shed, hurting cleanliness and lifetime, and resistivity often drifts across the surface.
Customer need
Working from end-customer requirements at Samsung (2022 export program), JUTAI was asked for a narrower, more uniform surface resistivity window, no powder shedding, and stable performance suitable for complex structural parts—while improving production efficiency and lowering cost versus earlier antistatic options.
Material
JUTAIPEEK® ESD-FC — a second-generation antistatic PEEK profile doped with highly dispersible carbon nanotubes (CNT). Target surface resistivity: uniform and stable 10^7–10^9 Ω/sq (permanent antistatic), without carbon-powder shedding. The grade keeps PEEK’s mechanical strength, heat resistance, wear resistance, and chemical resistance while adding controlled ESD behavior.
Process
Materials R&D screened formulations against the resistivity and cleanliness targets, then locked a CNT composite route. Profiles are produced on JUTAI’s automated extrusion lines with in-house surface-resistance testing for batch consistency. Parts can move from stock shapes into CNC-machined complex geometries for semiconductor and LCD equipment.
Result
ESD-FC shipped for Samsung-related use in 2022, helping demonstrate that a domestic high-end antistatic PEEK can meet export cleanliness and resistivity expectations. Typical applications: semiconductor equipment parts, wafer carriers and pods, chip carriers and trays, LCD manufacturing fixtures, plus industrial ESD-sensitive environments.
