A Standout in Radiation Resistance:
Polyether Ether Ketone (PEEK) Engineering Plastic
In extreme-environment engineering - particularly in the nuclear industry, aerospace, and particle-physics experiments - a material's ability to remain stable under prolonged exposure to high-energy radiation such as gamma rays, X-rays, electron beams, and neutron flux is critical to equipment life and safety. Among high-performance polymers, polyether ether ketone (PEEK) stands out for its exceptional all-round performance and, above all, its outstanding radiation resistance. It is therefore one of the preferred materials for demanding radiation environments. |
PEEK's radiation resistance is no accident; it arises from its distinctive molecular architecture.

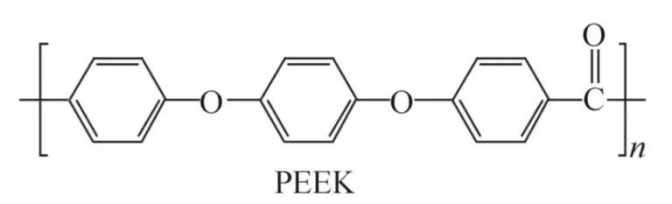

Robust molecular backbone: PEEK contains numerous benzene (aromatic) rings together with strongly polar ketone (-CO-) groups and ether (-O-) linkages. The highly stable conjugated pi-bond system of the aromatic rings absorbs and disperses energy from high-energy radiation, helping prevent molecular-chain scission. This aromatic-ring structure is central to PEEK's radiation resistance.
High bond energy: The C-C and C-O bonds in the polymer chain have high bond energies and require substantial energy to break. Free radicals generated by irradiation are therefore less likely to trigger main-chain scission (degradation) and more likely to promote crosslinking.
Crosslinking rather than degradation: Under irradiation, PEEK predominantly undergoes interchain crosslinking rather than chain-scission degradation. The resulting three-dimensional network may slightly increase brittleness, but it helps preserve structural integrity and mechanical strength, avoiding the rapid embrittlement and powdering seen in many commodity plastics.

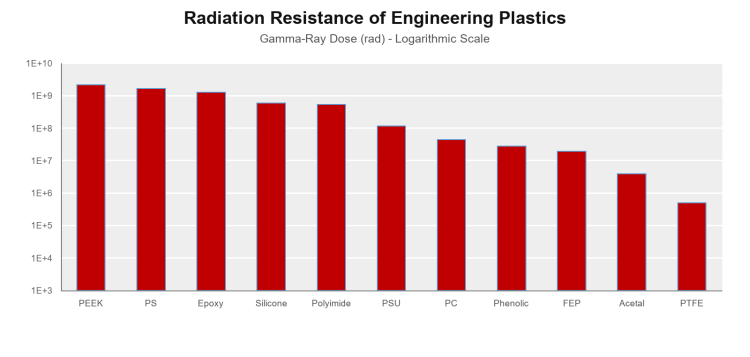

Research indicates that PEEK can withstand very high radiation doses while retaining useful performance.
High dose tolerance: PEEK can tolerate more than 1,000 kGy (approximately 100 Mrad) without catastrophic failure. By comparison, many general-purpose plastics deteriorate severely at doses of only 10-100 kGy. Some studies report that PEEK still retains a degree of mechanical performance even after exposure to 5,000 kGy.
Mechanical-property retention: Before the critical dose is reached, PEEK's tensile strength, elastic modulus, and other mechanical properties decline slowly. During the early stages of irradiation, crosslinking may even cause a slight increase in modulus, while much of the material's toughness can also be retained.
Stable electrical performance: PEEK is an excellent electrical insulator. Although its volume resistivity decreases under irradiation, the reduction is far smaller than in many other insulating materials, such as epoxy resin, helping electrical components maintain reliable insulation during long-term radiation exposure.
Low outgassing: In high-vacuum radiation environments, volatile substances released by a material can contaminate precision instruments such as space telescopes and particle detectors. PEEK has extremely low volatility and generates very little gas after irradiation, making it well suited to high-cleanliness applications.
Radiochemical yield (G) refers to the number of radicals, ions, molecules, or other products generated when 1 g of material absorbs 100 eV of energy. A lower radiation-induced radical yield generally indicates stronger radiation resistance. The table below lists typical radical yields for selected polyaryletherketones. The yield is higher for specimens irradiated in vacuum than in air, and higher at 77 K than at 300 K in vacuum. In other words, radical yield decreases as irradiation temperature rises under vacuum, and it also decreases as oxygen content increases at the same irradiation temperature.
Polymer | Vacuum, 77 K | Vacuum, 300 K | Air, 300 K |
PEEK | 0.11 | 0.004 | 0.001 |
PEEKK | 0.12 | 0.004 | 0.001 |
PEEK's radiation resistance is not absolute; it depends on several factors:
Radiation type and energy: Gamma rays, electrons, protons, and neutrons interact with materials through different mechanisms and therefore cause different forms and degrees of damage. Radiation with strong ionizing power and high penetration tends to affect bulk properties more uniformly, while high-energy particles may produce more pronounced localized damage.
Irradiation environment - oxygen-rich conditions (air): This is the most demanding environment. Oxygen reacts with radiation-generated radicals, accelerating oxidative degradation and causing yellowing, embrittlement, and a much faster decline in performance than in vacuum or oxygen-free environments.
Inert conditions (vacuum or inert gas): PEEK performs best without oxygen. Crosslinking becomes the dominant reaction, substantially extending the material's service life.
Temperature: Elevated temperatures intensify radiation-induced chemical changes and accelerate oxidation and degradation. Combined heat and radiation therefore impose a more severe challenge. Nevertheless, PEEK retains an advantage because of its inherent heat resistance, with long-term service temperatures of up to 250°C.
Additives: Neat PEEK resin offers the strongest intrinsic radiation resistance. Reinforcements such as glass or carbon fiber may introduce interfacial defects that become stress-concentration points during irradiation, potentially causing a modest reduction in radiation tolerance. This is typically an accepted trade-off when greater mechanical strength is required.

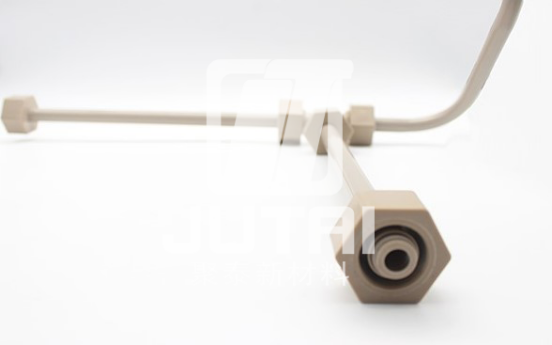

Nuclear reactors: Cable insulation, sensor sheathing, seals, bearings, and other internal components that must withstand long-term neutron and gamma irradiation.
Nuclear-waste handling: Components for equipment used to contain or process radioactive materials.
Satellites and space stations: Wire and cable systems, connectors, and structural supports that must remain stable during long-term exposure to cosmic radiation and charged particles.
Particle accelerators: Detector components and vacuum-chamber insulators used in intense radiation fields, including facilities such as the Large Hadron Collider (LHC).
Medical-device sterilization: Housings and internal structures for surgical instruments sterilized by gamma radiation or electron beams, enabling repeated sterilization cycles with limited aging.
Electronics: Insulation and encapsulation for electronic components operating in specialized environments, such as areas near nuclear power stations.
Thanks to its distinctive aromatic molecular structure, polyether ether ketone (PEEK) offers radiation resistance that surpasses most engineering plastics. Its ability to maintain structural integrity and key physical and mechanical properties under high temperatures and high radiation doses makes it a standout material for extreme-environment engineering.
