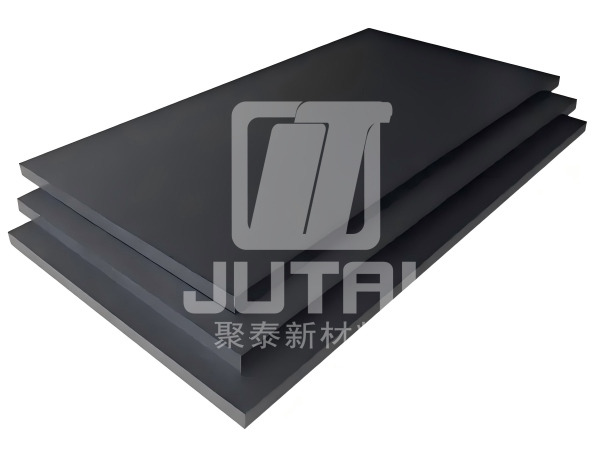

High mechanical strength stable PPS GF40 Sheet

Availability:
Quantity:
Inquire Add to Basket


PPS GF40 Sheet is a 40% short-cut glass fiber reinforced PPS grade that offers higher stiffness and creep resistance compared to other PPS grades. Due to its improved dimensional stability, this grade performs excellently in structural applications involving high static loads, even over long periods and at high temperatures. Although the glass fiber reinforcement enhances the material's dimensional stability, this additive can cause wear on mating surfaces in sliding parts.






● Excellent chemical resistance

● Excellent creep resistance

● Excellent electrical properties

● High mechanical strength

● Improved heat distortion temperature compared to unfilled PPS

●  Higher dimensional stability compared to unfilled PPS

● Higher stiffness compared to unfilled PPS




● Electrical applications

● Housings

● Semiconductor applications

● Structural components


Storage Instructions
Avoid exposure to light, moisture, oily substances, and direct UV radiation.
If not in use, wrap the product properly with a protective film.



For milling, use tungsten steel tools designed for aluminum.
For drilling, follow a stepwise approach, starting with a small hole and then expanding. Avoid using large-diameter drill bits for direct drilling.
Ensure sufficient coolant during the machining process to prevent material burning or tool sticking.
It is recommended to use water-soluble cutting fluids.



Performance Test Method Unit PPSRNAV
Color Eye / Black
Density ISO1183-1 g/cm3 1.66
Tensile Strength ISO 527-2 MPa ≥80
Tensile Modulus ISO527-2 GPa ≥5.0
Izod Impact Strength(Notched) ISO 180 kJ/m2 ≥6.0
Flexural Strength ISO 178 MPa ≥135
FlexuralModulus ISO 178 GPa ≥7.0
Coefficient of Linear Thermal Expansion ISO11359-2 10-6/K ≤45
Long-term Service Temperature UL 746B ℃ 200-220
Heat Deflection Temperature ISO 75-2 ℃ ≥230
Water Absorption(23℃、Water、24h) ISO 62 method 1 % ≤0.05
Flame Retardancy UL 94 / V-0
Volume Resistivity IEC 62631-3-1 Q-cm ≥10A14
Dielectric Strength IEC 60243-1 kV/mm ≥15
DielectricConstant(1MHz) IEC 62631-2-1 / 3.8

Dielectric Loss(1MHz)		 IEC 62631-2-1
/		 4.8*10^-3
