| JTYPEI®NA, JUTAI manufactures Ultem™ 1000 PEI sheets made from virgin SABIC resin with excellent heat resistance, electrical insulation, dimensional stability, custom cutting and CNC machining services. | |||||||||

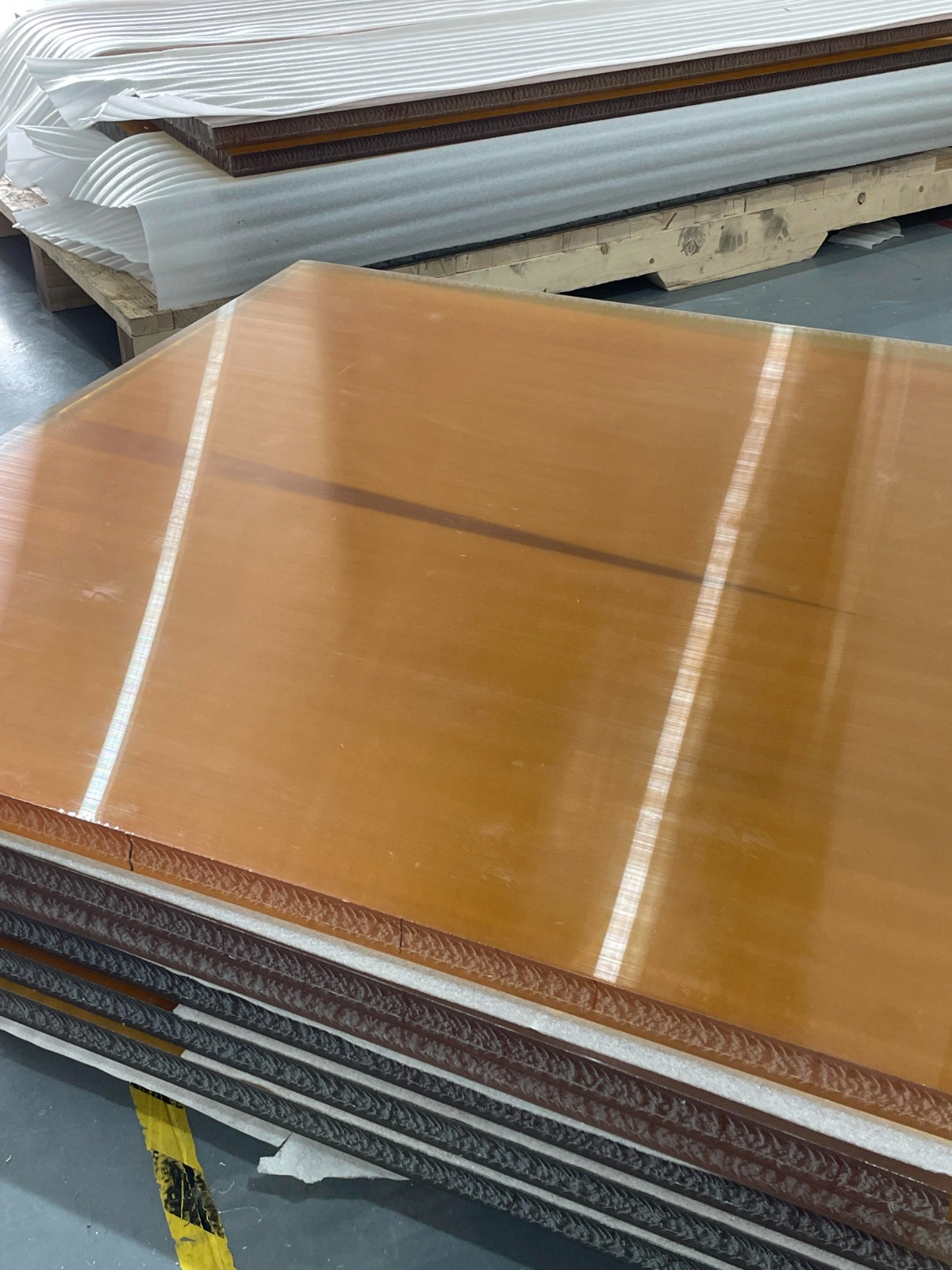

JTYPEI® NA is an unfilled, natural amber polyetherimide sheet manufactured for flat, rectangular and plate-shaped components used in electrical, semiconductor, industrial, aerospace, medical equipment and new-energy applications.
The amorphous structure of PEI provides an excellent combination of mechanical strength, dimensional stability, electrical insulation, inherent flame resistance and reliable long-term thermal performance.
Compared with machining flat components from round rod, PEI sheet provides better material utilization for mounting plates, insulating panels, equipment bases, frames, covers, trays, fixtures and rectangular machined components.
JTYPEI® NA sheets are available in thicknesses from 1 to 100 mm. Standard widths include 620 mm and 1,240 mm, with lengths of 1,000 mm, 2,000 mm and 3,000 mm available depending on thickness and production requirements.
Customized cutting, thicknesses, panel dimensions and machining tolerances can be evaluated according to the application, order quantity and manufacturing process.
SABIC ULTEM™ 1000 resin can be supplied for customers requiring a recognized resin grade, material traceability and supporting resin documentation.
ULTEM™ is a trademark of SABIC.
PEI sheet is the more efficient stock shape for components with predominantly flat, rectangular or plate-like geometry.
Typical examples include:
• Electrical insulating panels
• Mounting plates
• Fixture bases
• Semiconductor equipment plates
• Equipment covers
• Structural frames
• Machined blocks
• Inspection fixtures
• Support plates
• Trays and holders
• Flat spacers
• Electrical barriers
• Instrument panels
• Manifold-style components
Using sheet for these components can reduce material waste, shorten milling time and simplify clamping compared with machining the same geometry from an oversized rod.
For cylindrical components such as bushings, rollers, sleeves and round spacers, PEI rod normally provides better material utilization.
JTYPEI® NA can provide reliable long-term performance at temperatures up to approximately 170°C, depending on mechanical load, pressure, chemical exposure, component geometry and other operating conditions.
The typical glass transition temperature of natural PEI is approximately 217°C.
The glass transition temperature should not be treated as the recommended continuous operating temperature of a finished component.
Final suitability must be evaluated according to the actual operating temperature, exposure duration, mechanical stress and environmental conditions.
PEI offers low moisture absorption, good creep resistance and relatively low thermal expansion compared with many conventional engineering plastics.
These properties help milled plates, frames and fixtures maintain their dimensions during assembly, temperature changes and long-term operation.
For components requiring tight flatness, parallelism or dimensional tolerances, controlled annealing may be required before, during or after machining.
Natural unfilled PEI provides high volume resistivity, good dielectric strength and stable electrical performance over a wide temperature and frequency range.
PEI sheet is particularly suitable for flat components that must provide both structural support and electrical separation.
Typical examples include:
• High-voltage insulating plates
• Electrical barriers
• Connector mounting panels
• Sensor support plates
• Battery insulation components
• Test-equipment bases
• Terminal support plates
• Semiconductor equipment fixtures
JTYPEI® NA provides high tensile and flexural strength together with a favorable strength-to-weight ratio.
The material is suitable for precision plates, mounting components, equipment supports and other parts requiring a combination of stiffness, electrical insulation and reduced weight.
Component thickness, mounting method, unsupported span and operating temperature must be considered during structural design.
PEI is inherently flame-resistant in many standard formulations and can provide low smoke generation.
A UL94 V-0 rating may be available depending on the selected resin grade, sheet thickness and test conditions.
Compliance with aviation, railway, electrical or other industry-specific flame and smoke requirements must be confirmed according to the selected resin grade and finished component.
JTYPEI® NA offers good resistance to many oils, fuels, hydrocarbons, alcohols, weak acids, hot water and industrial cleaning environments.
However, PEI may be affected by:
• Strong alkalis
• Chlorinated solvents
• Certain polar solvents
• Chemical exposure combined with high mechanical stress
• Aggressive chemicals at elevated temperatures
Chemical compatibility should be evaluated according to the actual medium, concentration, temperature, pressure, exposure time and mechanical load.
PEI sheet is suitable for:
• CNC milling
• Drilling
• Pocket machining
• Profiling
• Engraving
• Surface machining
• Thread machining
• Cut-to-size fabrication
• Precision dimensional inspection
Sharp tools, suitable cutting parameters, stable clamping and adequate cooling should be used to minimize cutting heat and internal stress.
JTYPEI® NA sheet covers thin insulating panels, medium-thickness machined plates and thick stock for precision-milled components.
Availability should be confirmed according to thickness, width, length and required quantity.
Standard widths include 620 mm and 1,240 mm, with lengths up to 3,000 mm available depending on thickness and manufacturing process.
Large-format sheets can improve nesting efficiency when producing multiple components from one panel.
SABIC ULTEM™ 1000 resin can be supplied according to customer requirements for material performance, resin traceability and supporting documentation.
JUTAI maintains stock of commonly requested PEI sheet thicknesses to support samples, urgent production, small orders and recurring purchasing requirements.
Current stock should be confirmed according to thickness, sheet size, resin grade and quantity.
PEI sheets can be cut into smaller panels, strips, blocks or near-net-size blanks.
Cut-to-size supply can reduce freight volume, customer handling time, machining preparation and material waste.
Annealing can be provided for components requiring extensive material removal, tight dimensional tolerances or improved stability at elevated temperatures.

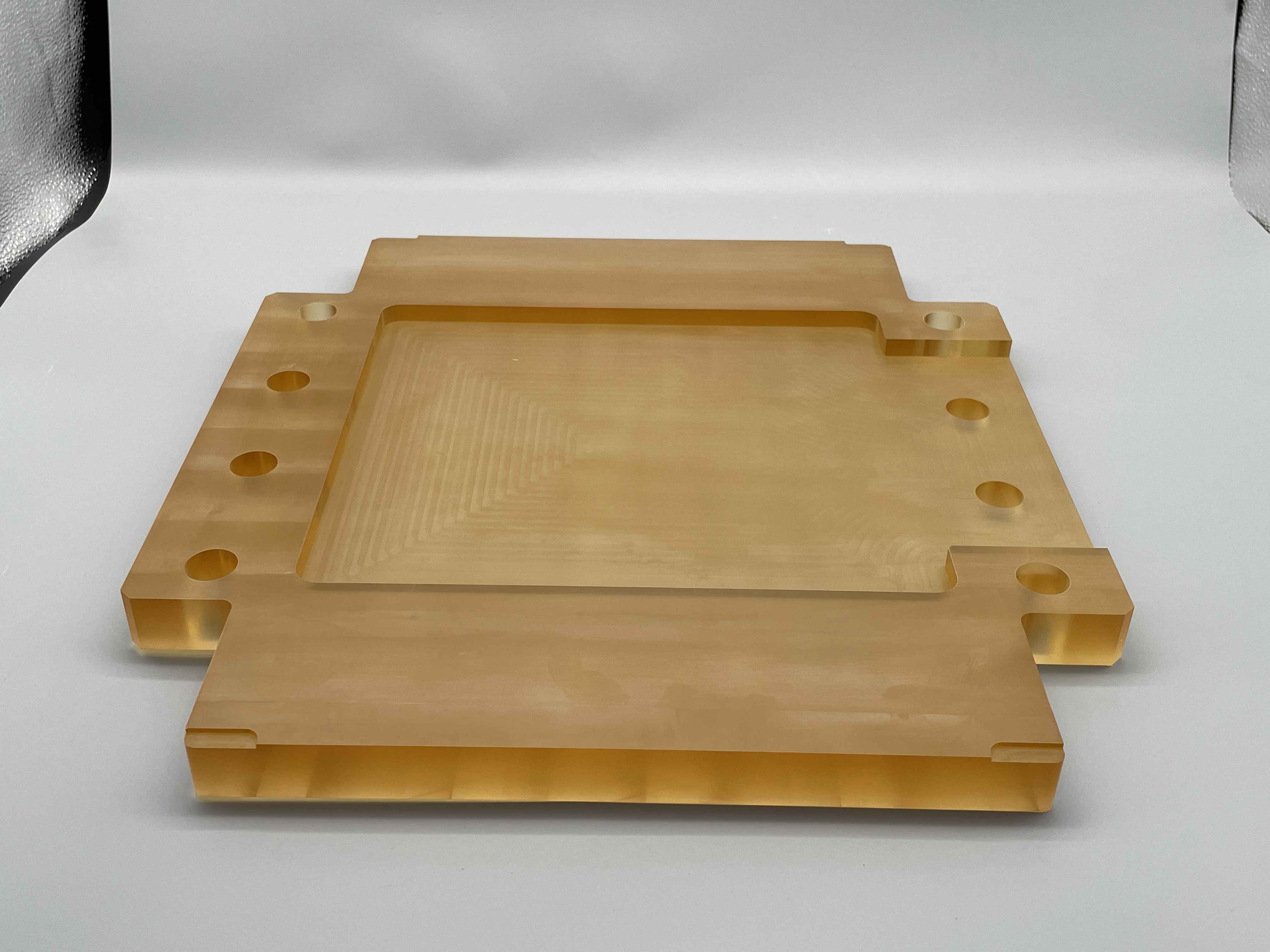

JUTAI provides CNC milling, drilling, grinding, profiling and dimensional inspection according to customer drawings or samples.
Machining tolerances depend on component dimensions, thickness, geometry, wall thickness, material removal and inspection requirements.
JUTAI services cover:
• Resin selection
• Material modification
• Sheet extrusion or compression molding
• Controlled annealing
• Cut-to-size service
• CNC milling
• Drilling and grinding
• Surface machining
• Dimensional inspection
• Component assembly
• Worldwide delivery
JUTAI operates under an ISO 9001:2015 quality management system.
The following documents can be provided where applicable:
• Technical Data Sheet
• Resin Certificate of Analysis
• Certificate of Conformity
• Material Safety Data Sheet
• RoHS documentation
• REACH documentation
• Dimensional inspection report
• Material traceability information
