In the field of extreme environment engineering, particularly involving nuclear industry, aerospace, and particle physics experiments, a material's ability to remain stable under prolonged bombardment by high-energy radiation (such as gamma rays, X-rays, electron beams, neutron flux) is crucial for determining equipment lifespan and safety. Among numerous high-performance polymers, Polyetheretherketone (PEEK) stands out with its exceptional comprehensive properties, especially its outstanding radiation resistance, making it one of the preferred materials for demanding irradiation environments.
PEEK's radiation resistance is not accidental but determined by its unique molecular structure.

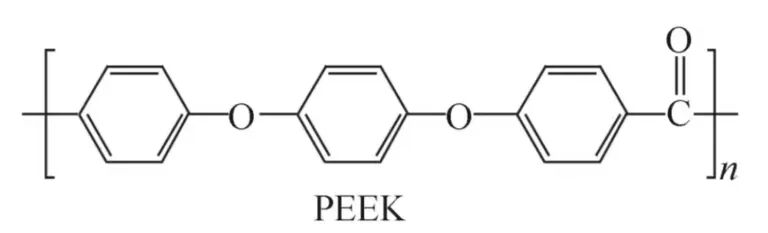

Robust Molecular Backbone: PEEK's molecular backbone consists of numerous benzene rings (aromatic rings) and highly polar ketone groups (-CO-) and ether linkages (-O-). The benzene rings possess a highly stable conjugated π-bond structure, capable of effectively absorbing and dispersing the energy from high-energy radiation, preventing molecular chain breakage. This "aromatic structure" is the core of PEEK's radiation resistance.
High Bond Energy: The C-C and C-O bonds within the molecular chain have high bond energies, requiring extremely high energy to break them. Radicals generated by irradiation are relatively less likely to initiate backbone breakage (degradation) and tend to promote cross-linking reactions instead.
Cross-linking Over Degradation: Under irradiation conditions, PEEK primarily undergoes molecular chain cross-linking reactions rather than chain scission degradation. Cross-linking can form a three-dimensional network structure between molecular chains. While this may slightly increase material brittleness, it effectively maintains the integrity of its overall structure and mechanical strength, preventing rapid pulverization and failure seen in many conventional plastics.
High Tolerance Dose: PEEK can tolerate radiation doses exceeding 1000 kGy (approximately 100 Mrad) without catastrophic failure. In contrast, many general-purpose plastics severely degrade at doses of 10-100 kGy. Some studies show PEEK can retain certain mechanical properties even at doses up to 5000 kGy.
Mechanical Property Retention: Before reaching the critical dose, the decline in PEEK's mechanical properties like tensile strength and elastic modulus is slow. In the initial stages of irradiation, the modulus may even slightly increase due to cross-linking. Its excellent toughness can also be retained to a certain extent.
Stable Electrical Properties: PEEK is inherently an excellent electrical insulating material. In irradiation environments, its volume resistivity decreases, but the extent of decrease is far less than other insulating materials (e.g., epoxy resins), ensuring the insulation reliability of electrical components under long-term irradiation.
Low Outgassing: In high-vacuum and irradiation environments, material release of volatile substances (outgassing) can contaminate precision instruments (e.g., space telescopes, particle detectors). PEEK has extremely low volatility and produces minimal gas after irradiation, making it highly suitable for high-cleanliness environments.
The Radiation Chemical Yield (G value) refers to the number of broken radicals, ions, or molecules produced per 100eV of energy absorbed by 1g of material. The radiation radical yield can reflect a material's radiation resistance; a smaller radiation radical yield indicates stronger radiation resistance. Table 1 shows the typical radiation radical yields G(R) for some representative polyaryletherketone polymer materials. It can be observed that the radical yield of samples irradiated under vacuum conditions is greater than those irradiated in air. Furthermore, the radical yield for samples irradiated under vacuum at 77K is greater than for those irradiated under vacuum at 300K. This indicates that under vacuum conditions, as the irradiation temperature increases, the radical yield decreases. Under the same irradiation temperature, as oxygen content increases, the radical yield decreases.

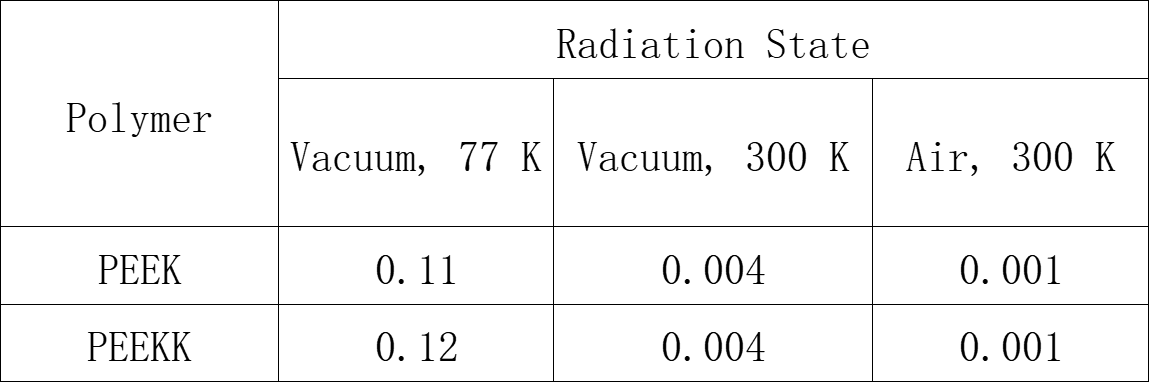

Table 1: Typical Radiation Radical Yields G(R) for Polyaryletherketones (Image placeholder note: Table content would be translated from the Chinese table provided.)
PEEK's radiation resistance is not absolute and is influenced by the following factors:
Radiation Type and Energy: Different types of radiation (gamma rays, electrons, protons, neutrons) interact with materials through different mechanisms, causing varying degrees of damage. Typically, radiation with stronger ionizing power and higher penetration causes more uniform effects on overall properties, while high-energy particles may cause more significant localized damage.
Irradiation Environment:
Oxidizing Environment (Air): This is the most severe condition. Oxygen reacts with radicals generated by irradiation, accelerating the oxidative degradation process, causing material yellowing, embrittlement, and a much faster decline in performance compared to vacuum or inert environments.
Inert Environment (Vacuum or Inert Gas): PEEK performs best. Due to the lack of oxygen, cross-linking reactions primarily occur, significantly extending material life.
Temperature: High temperatures exacerbate chemical changes induced by irradiation, accelerating oxidation and degradation processes. Therefore, scenarios combining high temperature and irradiation pose a more severe challenge. However, PEEK's inherent high heat resistance (long-term use temperature up to 250°C) gives it an advantage in this field.
Additives: Pure PEEK resin offers optimal radiation resistance. The addition of some reinforcing fillers (e.g., glass fiber, carbon fiber) may introduce interfacial defects, which can become stress concentration points under irradiation, potentially slightly reducing tolerance. This is usually a trade-off made to meet higher mechanical strength requirements.

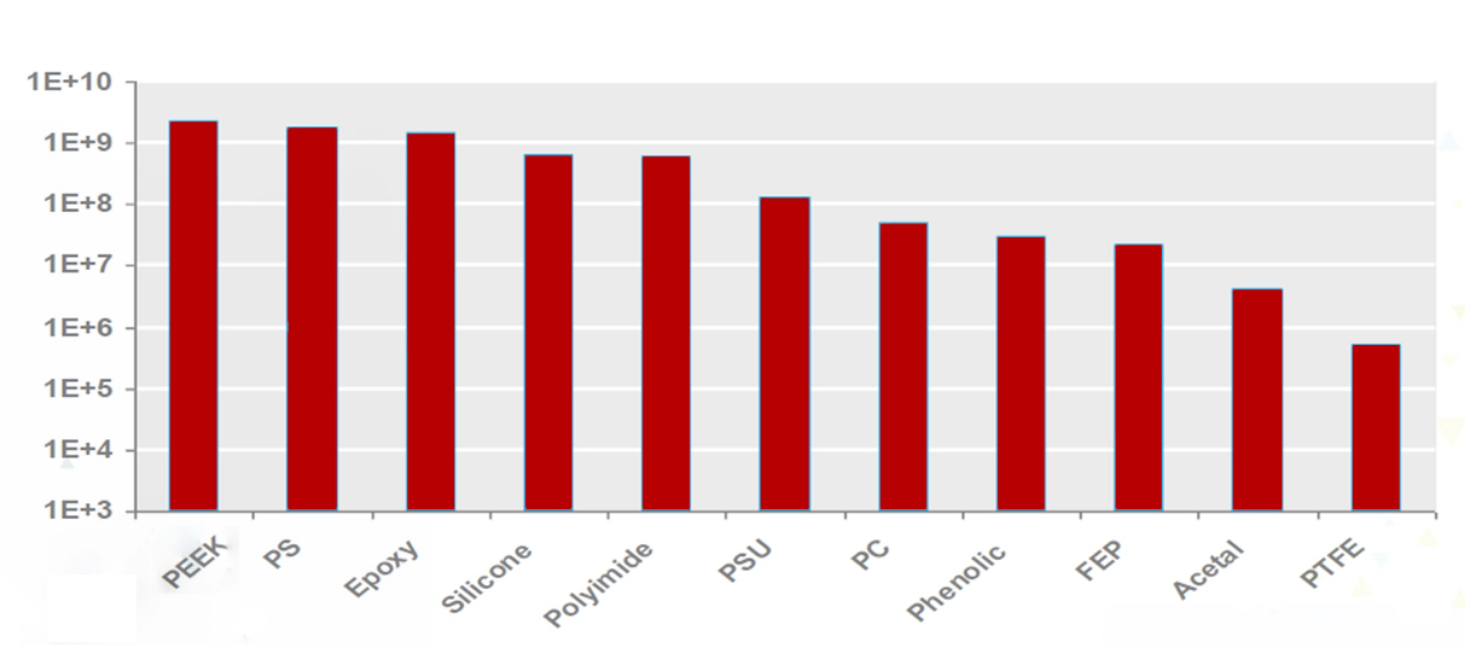

Comparison of Radiation Resistance of Engineering Plastics
Nuclear Reactors: Used for manufacturing cable insulation, sensor sheaths, seals, bearings, and other internal components requiring long-term endurance against neutron and gamma radiation.
Nuclear Waste Processing: Components for equipment handling or containing radioactive materials.
Satellites and Space Stations: The space environment is filled with cosmic rays and charged particles. PEEK is used for manufacturing wires/cables, connectors, structural supports, etc., ensuring long-term stable operation of equipment in orbit.
Particle Accelerators: Used in devices like the Large Hadron Collider (LHC) for manufacturing detector components, vacuum chamber insulators, requiring endurance in extremely strong radiation fields.
Medical Device Sterilization: For surgical instruments sterilized using gamma rays or electron beams, using PEEK for casings or internal structures allows them to withstand multiple sterilization cycles without aging.
Electronics Industry: Insulation and packaging for electronic components in special environments (e.g., near nuclear power plants).
Polyetheretherketone (PEEK), due to its unique aromatic molecular structure, possesses radiation resistance surpassing that of the vast majority of engineering plastics. Its ability to maintain structural integrity and key physical-mechanical properties under high temperatures and high radiation doses makes it a "top performer" among extreme environment engineering materials.
-Topic for Thought-
We believe that among radiation-resistant materials, PEEK, PI (Polyimide), and PBI (Polybenzimidazole) all belong to the first tier!
Interested in learning more about radiation resistance? Let's chat in the comments section!
