UV resistance PEEK Black Sheet for outdoor applications

Availability:

Quantity:




Inquire Add to Basket

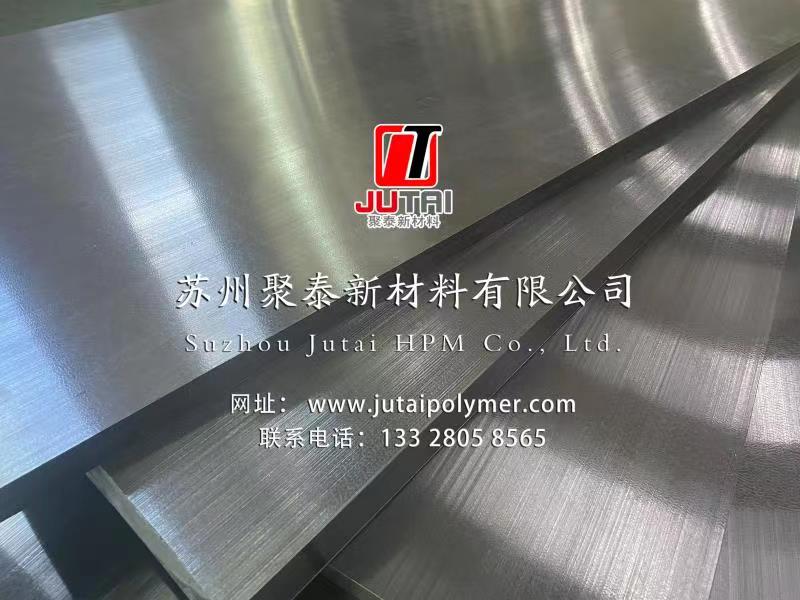

JUTAIPEEK®NA, Polyether Ether Ketone black color sheet, virgin PEEK black sheet.

Besides unfilled natural PEEK in beige color, a black version of PEEK sheet profile is also available. Beyond the typical PEEK characteristics, this black version offers improved UV resistance, making it an ideal material choice for outdoor applications. PEEK (Polyether Ether Ketone) Natural Sheet has excellent overall performance, good mechanical properties, high-temperature resistance, and outstanding chemical resistance.

The exceptional chemical resistance of PEEK allows it to effectively replace metals and stainless steel in harsh environments and has proven to be a reliable alternative to other materials costing up to 10 times more. PEEK is inert to all common solvents and can withstand various organic and inorganic liquids. This black PEEK sheet is a versatile high-performance plastic with excellent UV resistance, making it ideal for outdoor applications.

1. Heat Resistance: A high-temperature resistant thermoplastic resin with a melting point of 334°C. PEEK Natural Sheets have excellent high-temperature properties, with a glass transition temperature of up to 151°C, and a melting point of 348°C. The long-term use temperature recognized by UL in the USA is 260°C.

2. Flexibility: Among commercially available high-temperature resins, PEEK ranks among the best, outperforming polyimide and diphenyl ether resins.

3. Flame Retardancy: UL94 V-0 grade self-extinguishing, low smoke.PEEK rods are naturally flame retardant without the need for additional flame retardant additives. Samples with a thickness of 1.45 mm can achieve the UL-94 V0 standard, and the smoke emission is significantly lower than that of other types of resins.

4. Chemical Resistance: Dissolves only in concentrated sulfuric acid.Aside from strong oxidizing acids like concentrated sulfuric acid, PEEK exhibits chemical resistance similar to PTFE resin. It can maintain its mechanical properties in various chemical reagents, making it an excellent corrosion-resistant material.

5. Processability: Good flowability, suitable for secondary processing.PEEK can be directly molded into parts using injection molding techniques. It can also be processed through turning, milling, drilling, tapping, bonding, and ultrasonic welding.

6. Outstanding Mechanical Properties: PEEK is the material that combines toughness and rigidity most perfectly among all resins, with strength and fatigue resistance even superior to some metals and alloys.

7. Hydrolysis Resistance: PEEK maintains good mechanical properties even after long-term exposure to high-temperature steam and hot water, making it the best resin in terms of hydrolysis resistance.

8. Dimensional Stability: PEEK has an extremely low water absorption rate and linear thermal expansion coefficient, providing excellent dimensional stability in various application environments.

9. Electrical and Insulation Properties: Even under conditions of high temperature, high pressure, high speed, and high humidity, PEEK maintains excellent insulation and stable electrical properties.

10. Radiation and Weather Resistance: PEEK has excellent resistance to various types of radiation. It can withstand high doses of α, β, and γ radiation while maintaining its properties, making it suitable for use in harsh environments.

11. High Purity, Low Volatility, and Non-Toxicity: PEEK resin is inherently non-toxic, with a very stable molecular structure that makes it resistant to the generation of volatiles. It also has anti-radiation properties, and high-purity PEEK obtained through purification is an excellent material for biochemical and medical applications.

12. Wear Resistance: PEEK and its composites exhibit exceptional wear resistance in extremely harsh environments, including high temperatures, high loads, and strong corrosive conditions.

13. Self-Lubrication: PEEK has a low coefficient of friction, allowing for oil-free lubrication. It can operate for extended periods in mediums such as oil, water, steam, and weak acids and bases.

14. Corrosion Resistance: PEEK does not dissolve in ordinary solvents and shows good corrosion resistance to various organic and inorganic chemical reagents.

15. High Strength: PEEK has the best mechanical strength among plastics. It also has high rigidity and surface hardness.

16. Peel Resistance: PEEK has excellent peel resistance, making it suitable for use in thin coatings or electromagnetic wires, and can be used under harsh conditions.

PEEK Natural Sheet Specification
Dimension Thickness*Width（mm）	Length(mm)	1M Length Weight(kg)	Length(mm)	2M Length Weight(kg)	Length(mm)	3M Length Weight(kg)
1 x 620	1000	1.49	2000	2.98	3000	4.47
2 x 620	1000	2.32	2000	4.63	3000	6.95
3 x 620	1000	3.31	2000	6.62	3000	9.93
4 x 620	1000	4. 14	2000	8.27	3000	12.41
5 x 620	1000	4.94	2000	9.88	3000	14.82
6 x 620	1000	5.75	2000	11.50	3000	17.25
8 x 620	1000	7.42	2000	14.83	3000	22.25
10 x 620	1000	9.23	2000	18.45	3000	27.68
12 x 620	1000	10.85	2000	21.70	3000	32.55
15 x 620	1000	13.26	2000	26.53	3000	39.80
16 x 620	1000	14. 15	2000	28.30	3000	42.45
20 x 620	1000	17.50	2000	35.00	3000	52.50
25 x 620	1000	22.33	2000	44.65	3000	66.98
30 x 620	1000	26.35	2000	52.70	3000	79.05
35 x 620	1000	30.45	2000	60.90	3000	91.35
40 x 620	1000	34.55	2000	69. 10	3000	103.65
45 x 620	1000	39. 10	2000	78.20	3000	117.30
50 x 620	1000	43.65	2000	87.30	3000	130.95
60 x 620	1000	51.75	2000	103.50	3000	155.25
70 x 620	1000	60.50	2000	121.00	3000	181.50
80 x 620	1000	68.75	2000	137.50	3000	206.25
90 x 620	1000	77.25	2000	154.50	3000	231.75
100 x 620	1000	86.00	2000	172.00	3000	258.00
5 x 1240	1000	9.88	2000	19.76	3000	29.64
6 x 1240	1000	11.50	2000	23.00	3000	34.50
8 x 1240	1000	14.83	2000	29.66	3000	44.49
10 x 1240	1000	18.45	2000	36.90	3000	55.35
12 x 1240	1000	21.70	2000	43.40	3000	65. 10
15 x 1240	1000	26.53	2000	53.04	3000	79.59
16 x 1240	1000	28.30	2000	56.60	3000	84.90
20 x 1240	1000	35.00	2000	70.00	3000	105.00
25 x 1240	1000	44.65	2000	89.30	3000	133.95
30 x 1240	1000	52.70	2000	105.40	3000	158. 10
35 x 1240	1000	60.90	2000	121.80	3000	182.70
40 x 1240	1000	69. 10	2000	207.30	3000	207.30
45 x 1240	1000	78.20	2000	156.40	3000	234.60
50 x 1240	1000	87.30	2000	174.60	3000	261.90
60 x 1240	1000	103.50	2000	207.00	3000	310.50
70 x 1240	1000	121.00	2000	242.00	3000	363.00
80 x 1240	1000	137.50	2000	275.00	3000	412.50
90 x 1240	1000	154.50	2000	309.00	3000	463.50
100 x 1240	1000	172.00	2000	344.00	3000	516.00

PEEK Black Sheet PEEK Black Sheet for outdoor applications UV resistance PEEK Black Sheet high-temperature resistance PEEK Black Sheet outstanding chemical resistance PEEK Black Sheet

*Verify Code

RELATED PRODUCTS

Black stable Conductive Polyether Ether Ketone ROD

Low Coefficient of Friction Polyether Ether Ketone Black Tube

Bearing Grade Polyether Ether Ketone SHEET

Bearing Grade wear resistance Polyether Ether Ketone SHEET

Wear Resistance Polyether Ether Ketone SHEET for Sealing industry

PEEK SHEET, Chemical Resistance Polyether Ether Ketone Sheet

Performance	Test Method	Unit	PEEK Natural
Color	beige	/	Beige
Density	ISO 1183-1	g/cm³	1.3
Tensile Strength	ISO 527-2	MPa	≥100
Tensile Modulus	ISO 527-2	GPa	≥4.0
Elongation At Break	ISO 527-2	%	≥25
Charpy Impact Strength (Notched)	ISO 179	kJ/m²	≥4.0
Flexural Strength	ISO 178	MPa	≥150
Flexural Modulus	ISO 178	GPa	≥3.5
Rockwell Hardness	ISO 2039-2	M	≥100
Shore D Hardness	ISO 868	Shore D	≥85
Coefficient of Linear Thermal Expansion	ISO 11359-2	10-6/K	≤65
Long-term ServiceTemperature	UL 746B	℃	250
Heat DeflectionTemperature	ISO 75-2	℃	≥150
Water Absorption (23℃、Water、24h)	ISO 62	%	≤0.1
Flammability Resistance (1.6mm)	UL94	/	V-0
Volume Resistivity	IEC 62631-3-1	Q-cm	1014-1016
Dielectric Strength	IEC 60243-1	kV/mm	≥15
Dielectric Constant(1MHz)	IEC 62631-2-1	/	3.4
Dielectric Loss(1MHz)	IEC 62631-2-1	/	0.086

Performance	Test Method	Unit	PEEK Natural
Color	beige	/	Beige
Density	ISO 1183-1	g/cm³	1.3
Tensile Strength	ISO 527-2	MPa	≥100
Tensile Modulus	ISO 527-2	GPa	≥4.0
Elongation At Break	ISO 527-2	%	≥25
Charpy Impact Strength (Notched)	ISO 179	kJ/m²	≥4.0
Flexural Strength	ISO 178	MPa	≥150
Flexural Modulus	ISO 178	GPa	≥3.5
Rockwell Hardness	ISO 2039-2	M	≥100
Shore D Hardness	ISO 868	Shore D	≥85
Coefficient of Linear Thermal Expansion	ISO 11359-2	10-6/K	≤65
Long-term ServiceTemperature	UL 746B	℃	250
Heat DeflectionTemperature	ISO 75-2	℃	≥150
Water Absorption (23℃、Water、24h)	ISO 62	%	≤0.1
Flammability Resistance (1.6mm)	UL94	/	V-0
Volume Resistivity	IEC 62631-3-1	Q-cm	1014-1016
Dielectric Strength	IEC 60243-1	kV/mm	≥15
Dielectric Constant(1MHz)	IEC 62631-2-1	/	3.4
Dielectric Loss(1MHz)	IEC 62631-2-1	/	0.086
