The shift in modern procurement is clear. Sourcing high-performance plastics is no longer just about basic metal substitution. Today, it demands strict risk control. You must ensure dimensional stability and avoid expensive scrap. We write this guide specifically for engineers and procurement professionals. You routinely evaluate manufacturing partners for mission-critical components. These parts operate in highly demanding medical, aerospace, and semiconductor environments. A single failure is catastrophic here. Successfully manufacturing custom PEEK machined parts requires a highly specialized approach. You must match the correct material grade to your exact application. Furthermore, you need a supplier who intimately understands complex thermal physics. They must master the rigorous stress-relief protocols inherent to semi-crystalline polymers. You simply cannot treat these advanced materials like ordinary plastics. In the following sections, you will learn how material physics affect tooling and why precise annealing dictates component success.
PEEK’s low thermal conductivity (0.25 W/m·K) means heat accumulates in the tool and part, requiring specialized tooling and cooling to prevent warping.
Achievable tolerances reach ±0.01 mm (±0.0002") for precision CNC PEEK parts, provided stringent multi-stage annealing is applied.
Selecting between Unfilled, GF30, and CF30 PEEK fundamentally alters tool wear (Carbide vs. PCD) and unit cost.
For volumes under 500 units, PEEK machining provides a faster, lower-risk alternative to PEEK injection molding, especially for thick-walled or highly isotropic components.
Many machine shops treat advanced polymers like soft aluminum. This mistake ruins components daily. The mechanics of PEEK machining differ fundamentally from traditional metalworking.
Metal cutting relies on brittle or ductile shearing. The tool breaks the material into distinct chips. Polymer cutting, conversely, involves plastic flowing or plowing. If you use the neutral rake angles common in metalwork, you cause severe friction. The material yields and pushes rather than cutting cleanly. This incorrect geometry produces long, stringy chips and poor edge quality.
Heat generation presents a massive manufacturing hurdle. Consider the thermal conductivity of 6061 Aluminum at roughly 167 W/m·K. PEEK sits at a mere 0.25 W/m·K. Chips cannot carry heat away from the cut efficiently. Heat accumulates immediately in the cutting tool and the workpiece. The cutting zone can quickly exceed the glass transition temperature of 143°C. When this happens, you get severe burrs and localized edge melting.

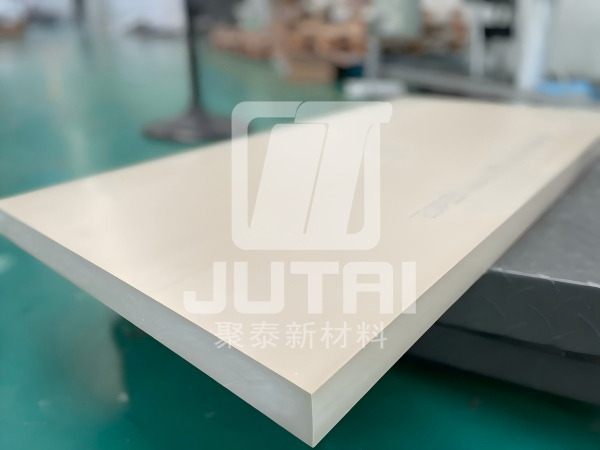

Extruded polymer blanks trap immense residual stress during initial manufacturing. When a tool removes surface material, it unleashes this trapped energy. Skipping multi-stage machining protocols remains a frequent error. It leads to immediate dimensional shifting the moment operators un-clamp the part. Proper stress management requires patience and deliberate resting periods.

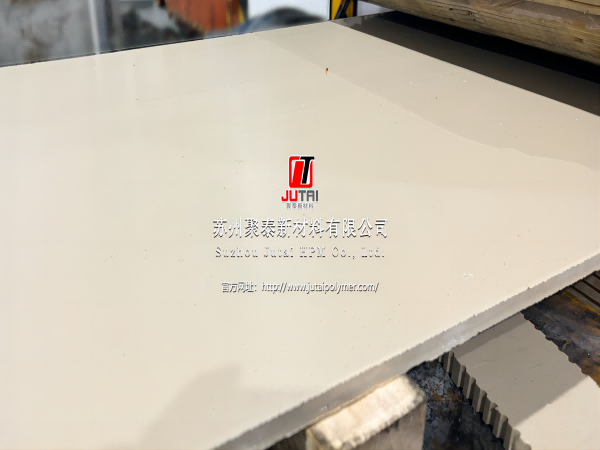

Choosing a material grade dictates both ultimate performance and manufacturability. Evaluating custom engineering plastic parts requires balancing end-use environmental demands against realistic tool wear rates.
This grade remains the top choice for FDA/ISO 10993 medical and high-purity semiconductor applications. Unfilled resin offers the highest elongation and is easiest on tooling. However, it generates continuous chips during turning. Operators must maintain strict chip control to prevent spindle wrapping and surface scoring.
Glass reinforcement adds high structural rigidity. It also significantly lowers thermal expansion. The major risk factor is extreme abrasion. Glass fibers destroy standard tooling rapidly. Dull tools pull fibers instead of shearing them. This dynamic causes destructive edge chatter and micro-delamination on the finished surface.
Carbon filling delivers ultimate wear resistance and compressive strength. Standard carbide tools fail quickly here. You must deploy Polycrystalline Diamond (PCD) tooling for reliable high performance plastic machining. Additionally, carbon-filled grades pose a higher risk of localized stress cracking. You absolutely cannot skip intermediate annealing steps.
These specialized blends typically include PTFE, graphite, and carbon fiber. They excel in low-friction wear environments. The varied filler density creates highly unpredictable tool wear rates. We strongly recommend pre-production trial cuts to establish stable feeds and speeds.
Achieving tight tolerances requires strict environmental controls. We must define realistic expectations for CNC PEEK parts before production ever begins.
The table below outlines achievable metrics based on equipment and environmental capabilities.
Machining Condition | Achievable Tolerance |
|---|---|
Standard High-Performance Machining | ±0.05 mm (±0.002") |
Extreme Precision (Controlled Environment) | ±0.01 mm (±0.0002") |
Standard CNC output: Ra 1.6–3.2 μm. This leaves a uniform, matte finish suitable for industrial use.
Fine finishing: Ra 0.8–1.6 μm. This requires slower feed rates and provides a smooth tactile feel.
Medical/Polished finish: Ra 0.2–0.4 μm. This near-mirror finish is essential for implants and critical seals.
Features thinner than 2mm present significant distortion risks. The cutting force can easily deflect thin walls. Programmers must utilize strict climb milling strategies. Climb milling pushes the cutting forces downward into the rigid fixture. Furthermore, operators must use custom soft jaws. These specialized jaws spread clamping pressure evenly to prevent crushing delicate geometries.
Process control separates profitable production runs from expensive waste. Manufacturers must address material memory, tooling degradation, and fluid compatibility proactively.
We transparently share our baseline requirement for thermal stress relief. First, pre-bake the raw blanks at 150°C to eliminate moisture. Next, ramp the oven temperature up to 200–250°C. Hold this peak temperature for exactly 4 hours per inch of wall thickness. Finally, initiate a very slow cool down phase. This rigorous cycle neutralizes dangerous internal stress.
Proper tool selection directly impacts your final unit price. Standard carbide tools offer excellent initial sharpness. However, their cutting edges break down in roughly 4 hours on filled grades. Upgrading to PCD tooling requires a larger upfront investment. Yet, PCD provides 10 or more hours of absolute cutting stability. This prevents mid-run tolerance drift entirely.
End-use regulations heavily restrict shop floor coolant choices. Industrial components safely utilize water-soluble flood coolant. You need a minimum flow rate of 3 L/min to extract heat effectively. Medical and vacuum applications demand completely different protocols. These critical components must rely on pure compressed air. Dry machining prevents dangerous outgassing risks and guarantees biocompatibility compliance.
Engineers frequently weigh material removal against molding processes. You must consider tooling investments, direct component integrity, and raw material expenses.
CNC processing stands as the primary choice for New Product Introduction (NPI) and rapid prototyping. It remains highly cost-effective for low-to-medium runs under 500 units. You avoid zero tooling amortization. It provides a faster, lower-risk alternative to PEEK injection molding.
Cutting from solid extruded blanks is vastly superior for heavy or thick cross-sections. Thick sections suffer from severe sink marks during the molding cycle. They also develop internal voids and unpredictable anisotropic weakness. Machining ensures perfectly uniform mechanical properties across the entire component volume.
We must provide a grounded baseline for procurement departments. High-grade polymer costs can be 50 to 70 times higher than common free-machining steels. The actual raw material represents your highest expense. Therefore, the direct financial cost of scrap in machining drastically outweighs any minor cycle time improvements. Slow, stable processing always wins.
Not every precision machine shop can handle advanced semi-crystalline polymers. Use this framework to audit potential manufacturing partners effectively.
Do they process to a specific polymer annealing standard, or treat the material like common aluminum?
Do they have climate-controlled metrology? They must hold parts for 4 to 12 hours at 20°C before final inspection due to high thermal expansion.
Do they utilize multi-stage machining? Roughing, resting, and finishing cycles are mandatory for tight-tolerance features.
Can they provide ISO 13485 compliance or ASTM E595 outgassing documentation if your project requires it?
Do they strictly separate polymer coolants from metal coolants to avoid destructive cross-contamination?
Custom components fail primarily because shops machine them using metal-working assumptions, not because the material is inherently flawed.
Always specify the exact operating environment, including thermal peaks and chemical exposure, during your early design phase.
Move beyond simple 2D drawings and engage with expert manufacturing partners early to validate true tolerance necessities before requesting an RFQ.
Demand detailed annealing documentation to ensure your precision parts remain dimensionally stable over their entire lifecycle.
A: Warping typically occurs due to inadequate intermediate stress-relief. When manufacturers skip mandatory annealing cycles, residual stress remains trapped inside the material. As the part experiences minor temperature changes or mechanical loads in the field, this stress releases. The result is delayed dimensional shifting. Proper multi-stage processing prevents this issue entirely.
A: No, the surface finishes differ significantly. Unfilled grades machine smoothly, allowing for near-mirror finishes. Glass-filled (GF30) and carbon-filled (CF30) grades contain hard, abrasive fibers. Even with extremely sharp tools, microscopic fiber pull-out occurs during cutting. This inherent material characteristic limits filled grades to a slightly textured, matte finish.
A: Medical-grade components require strict contamination control to maintain FDA and ISO 10993 compliance. Therefore, dry machining is the absolute best method. We use directed blasts of pure, chilled compressed air to clear chips and manage heat. This eliminates the risk of biocompatibility failures caused by residual cutting fluids.
A: Yes, it closely mimics human cortical bone. The elastic modulus of this polymer ranges from 3 to 21 GPa. Cortical bone typically measures between 10 and 30 GPa. In contrast, titanium exceeds 100 GPa. This similarity prevents stress shielding in medical implants, ensuring surrounding bones maintain their natural load-bearing strength.
