| JUTAIPEEK®CF30 is PEEK (Polyether Ether Ketone)reinforced with 30% short cut glass fiber. | |||||||||

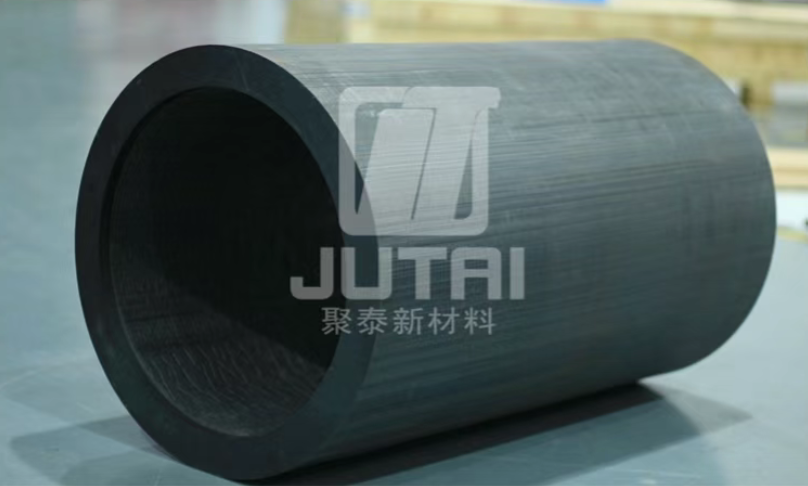

JUTAIPEEK®CF30 is a 30% short carbon fiber-reinforced polyetheretherketone (PEEK) profile, composed of carbon fibers and a PEEK resin matrix. Typically appears black in color.
JUTAIPEEK®NA is a profile made from pure PEEK resin. Typically appears beige in color.
The addition of carbon fibers enhances the overall mechanical strength of JUTAIPEEK®CF50, showing a 50% improvement compared to JUTAIPEEK®NA. It exhibits excellent tensile and flexural performance, with a modulus of no less than 10 GPa, ensuring high strength and stability under tension and bending.
Taking heat deflection temperature (HDT) as an example, JUTAIPEEK®CF50 demonstrates more than double the thermal performance of JUTAIPEEK®NA. It has strong thermo-mechanical load-bearing capacity, with an HDT exceeding 300°C, maintaining excellent mechanical properties in high-temperature environments and allowing for long-term use at 240°C.
JUTAIPEEK®NA exhibits outstanding electrical insulation, with low dielectric constant and dielectric loss. JUTAIPEEK®CF30, which incorporates carbon fibers, improves the electrical properties of the insulating PEEK matrix due to the conductive nature of carbon fibers.
Suitable for structural components, braking systems, transmission systems, and other high-temperature, high-pressure equipment in industries such as:
Mechanical engineering
Semiconductor & electronics
Chemical & petrochemical
Suitable for connectors, seals, pipelines, structural parts, etc., in industries including:
Mechanical engineering
Pump & valve manufacturing
Electronics
Chemical industry
New energy
Food & medical
Automotive
Aerospace
JUTAIPEEK®CF30 is a 30% short carbon fiber-reinforced polyetheretherketone (PEEK) profile, composed of carbon fibers and a PEEK resin matrix. Typically appears black in color.
JUTAIPEEK®NA is a profile made from pure PEEK resin. Typically appears beige in color.
The addition of carbon fibers enhances the overall mechanical strength of JUTAIPEEK®CF50, showing a 50% improvement compared to JUTAIPEEK®NA. It exhibits excellent tensile and flexural performance, with a modulus of no less than 10 GPa, ensuring high strength and stability under tension and bending.
Taking heat deflection temperature (HDT) as an example, JUTAIPEEK®CF50 demonstrates more than double the thermal performance of JUTAIPEEK®NA. It has strong thermo-mechanical load-bearing capacity, with an HDT exceeding 300°C, maintaining excellent mechanical properties in high-temperature environments and allowing for long-term use at 240°C.
JUTAIPEEK®NA exhibits outstanding electrical insulation, with low dielectric constant and dielectric loss. JUTAIPEEK®CF30, which incorporates carbon fibers, improves the electrical properties of the insulating PEEK matrix due to the conductive nature of carbon fibers.
