Which Material Is the Ultimate Gas Barrier?
A Permeability Comparison of Special Engineering Plastics
In advanced fields such as hydrogen storage and transportation, semiconductor processing, medical devices, and deep-sea oil and gas extraction, a material's gas permeability can directly determine system safety. When PEEK, PEI, PPS, fluoropolymers, and other top-performing materials are compared, which one is the true barrier champion? |

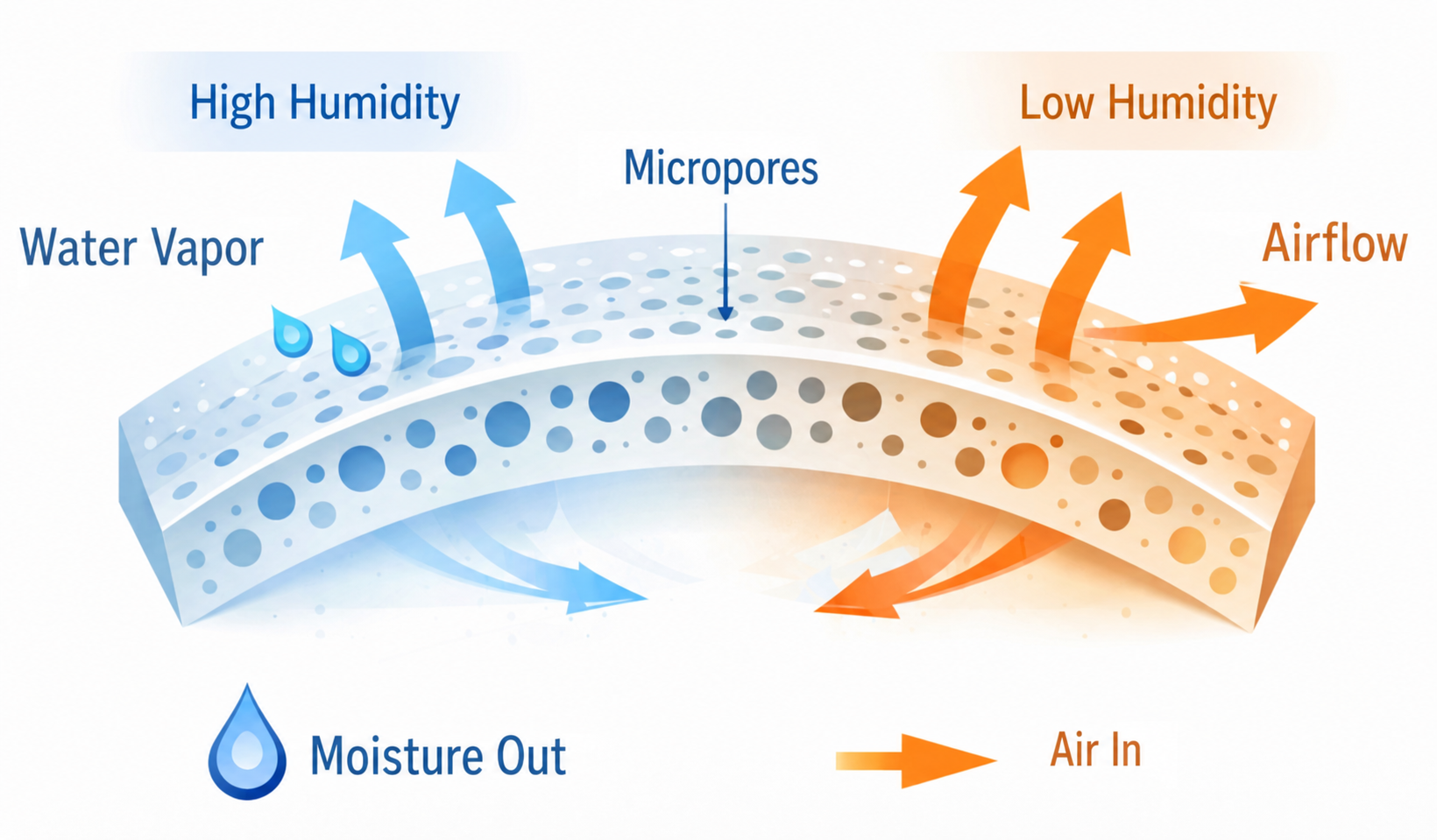

Gas permeability is the ability of a gas to pass through a material of a given area and thickness under specified temperature, pressure, and time conditions. Put simply, it describes how readily a material allows gas to pass. A lower value means the gas has greater difficulty penetrating the material and therefore indicates stronger barrier performance; a higher value means the material is more readily permeated.
In applications such as hydrogen storage and transportation, semiconductor fluid delivery, and medical packaging, permeability is often directly related to safety, stability, and service life.

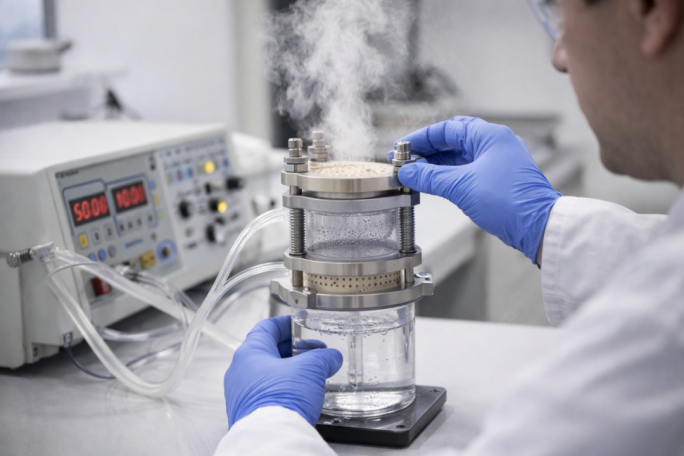

Permeability is measured under defined test standards and environmental conditions. A specimen is fixed in a test cell, and a gas-pressure differential is established across the material so that gas migrates from the high-pressure side to the low-pressure side. The instrument records the volume of gas passing through over a given time, which is then converted into a permeability value.
Test reports normally specify the gas species, temperature, humidity, pressure differential, and specimen thickness because all of these factors affect the result.
Crystalline regions act like rigid fortresses. The higher the crystallinity, the more difficult it is for gas molecules to pass through.
Stiffer molecular chains leave less free volume available for gas molecules to move through.
Stronger intermolecular attraction creates greater resistance to gas transport.
The benchmark for barrier performance. Its rigid chains are highly ordered, resulting in extremely low permeability.
Provides excellent resistance to hydrogen permeation and is a strong candidate for liners in high-pressure hydrogen cylinders.
A leading amorphous barrier material. Its rigid imide-ring structure restricts gas-transport pathways.
A cost-effective barrier performer widely used in automotive fuel systems.
A counterintuitive case: despite excellent chemical stability, processing can leave micropores that result in relatively high permeability.
Material | Structure | O₂ Permeability | Core Advantage | Typical Application |
LCP | Liquid-crystalline | < 0.5 | Exceptional barrier | 5G antenna encapsulation |
PPS | Semi-crystalline | ~ 3.5 | High crystallinity / corrosion resistance | Chemical pumps and valves |
PEEK | Semi-crystalline | ~ 7.5 | High strength / low H₂ permeation | Hydrogen energy / aerospace |
PVDF | Semi-crystalline | ~ 15 | Leading fluoropolymer barrier | Semiconductor piping |
PEI | Amorphous | ~ 38 | Rigid chains / strong barrier | Medical sterilization |
PTFE | Highly crystalline | ~ 350 | High- and low-temperature resistance | Seals / breathable membranes |
PSU | Amorphous | ~ 280 | Selective permeability | Gas-separation membranes |
In practical engineering applications, material selection requires balancing permeability against the full performance profile:
Prioritize PEEK or PPS.
When transparency, repeated steam sterilization, and useful gas-barrier performance are all required, PEI is the strongest choice.
PVDF is an industry standard because of its very low permeability and exceptionally high chemical purity.
Consider PSU, using its combination of higher permeability and selectivity to separate gas species.
