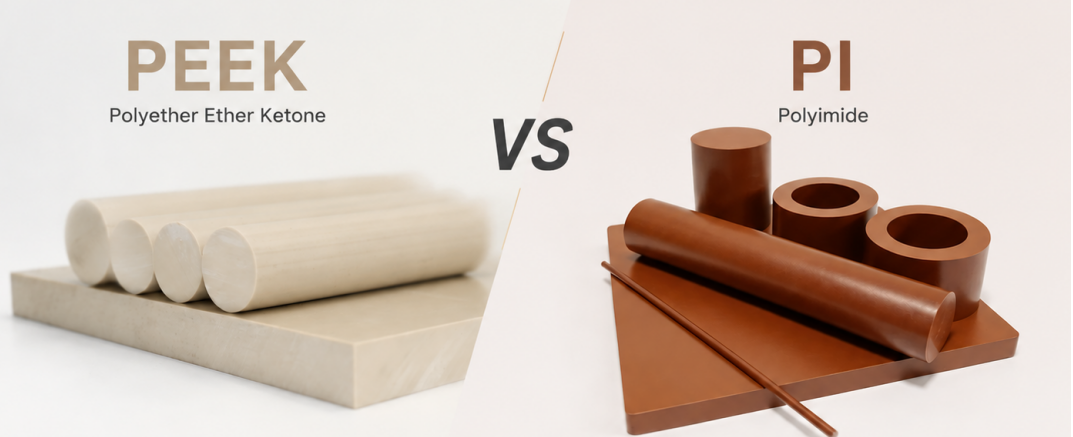

PEEK vs PI (Polyimide): How to Choose the Right High-Performance Engineering Plastic

1. Overview

Polyether Ether Ketone (PEEK) and Polyimide (PI) are two of the most advanced high-performance engineering plastics available today.

Widely used in aerospace, medical, semiconductor, electronics, and other demanding industries, these materials have become the “core materials” of high-end manufacturing thanks to their outstanding overall performance far beyond traditional plastics and metals.

Both materials can operate reliably under extreme conditions such as:

• High temperatures

• Strong chemical corrosion

• Radiation exposure

• Harsh mechanical environments

However, each material has its own performance focus and application advantages.

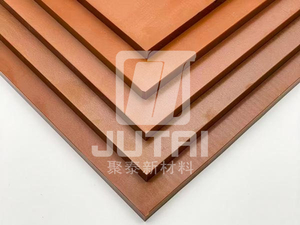

Polyimide (PI)

Typical Structure

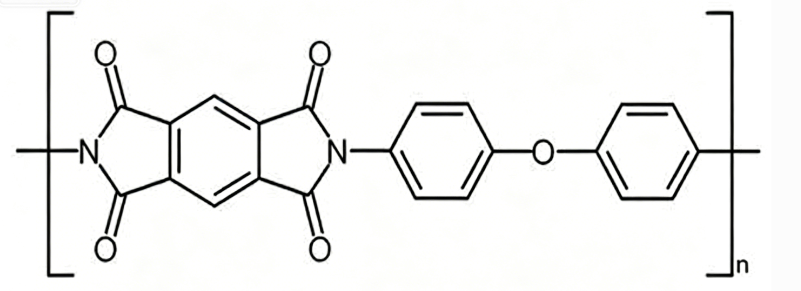

PI is typically synthesized through the polycondensation of pyromellitic dianhydride (PMDA) and 4,4’-oxydianiline (ODA). Its repeating unit contains a five-membered imide ring connected with three benzene rings.

Polyether Ether Ketone (PEEK)

Typical Structure

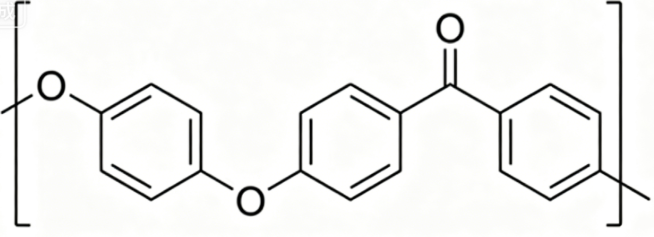

Typical molecular structure:

–[O–C₆H₄–O–C₆H₄–CO–C₆H₄]ₙ–

Ether bonds (-O-) and ketone groups (-CO-) alternate in the polymer chain, with an ether-to-ketone ratio of 2:1.

2. Core Performance Comparison

3. Core Advantages and Limitations

PEEK

Key Advantages

• Extremely balanced overall performance

• Excellent toughness, fatigue resistance, wear resistance, and self-lubrication

• Easy thermoplastic processing

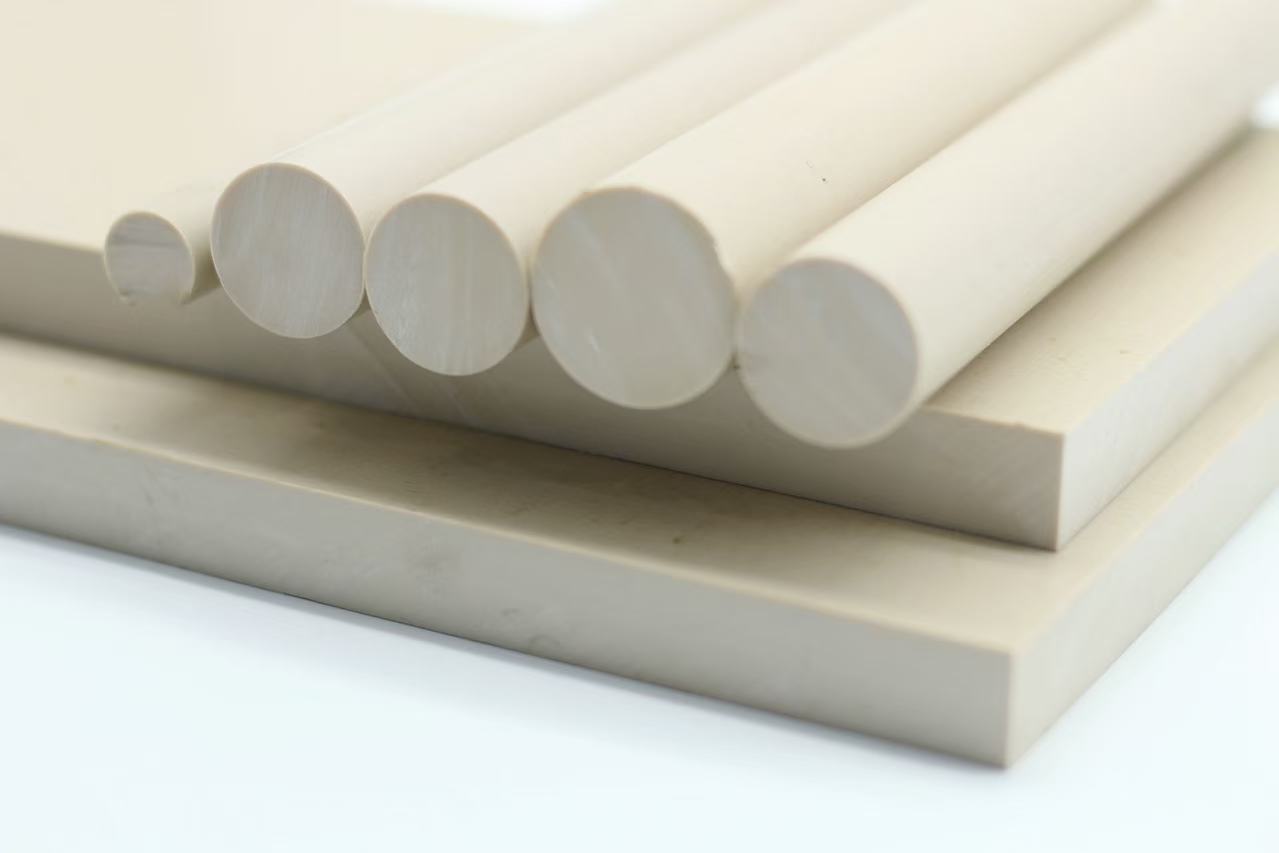

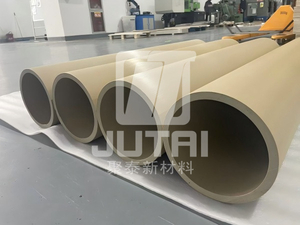

• Suitable for rods, sheets, tubes, and precision machined parts

• Mature ISO-certified medical biocompatibility

• Outstanding hydrolysis and steam resistance

• Excellent dimensional stability in humid environments

Limitations

• Inferior to PI in:

  • Extreme high-temperature resistance

  • Ultra-high electrical insulation

  • Radiation resistance

PI

Key Advantages

• Outstanding high-temperature resistance across the full temperature range

• Stable from cryogenic to ultra-high temperatures

• Industry-leading electrical insulation and arc resistance

• Exceptional radiation and oxidation resistance

• Mechanical properties remain stable even at very high temperatures

Limitations

• Higher brittleness

• Lower impact resistance

• Not ideal for heavy-load dynamic wear components

• Difficult processing

• Long lead times

• Higher production costs

4. Typical Application Scenarios

Recommended Applications for PEEK

Medical Industry

• Orthopedic implants

• Surgical instruments

• Endoscope components

• Dental consumables

Mechanical Transmission

• Bearings

• Gears

• Wear pads

• Valve seats

• High-speed moving parts

New Energy Vehicles

• Motor wear-resistant components

• Sealing parts

• Battery thermal insulation structures

Chemical & Fluid Systems

• High-pressure steam components

• Corrosion-resistant piping

• Precision pump and valve parts

Mass Production

• Complex injection molded parts

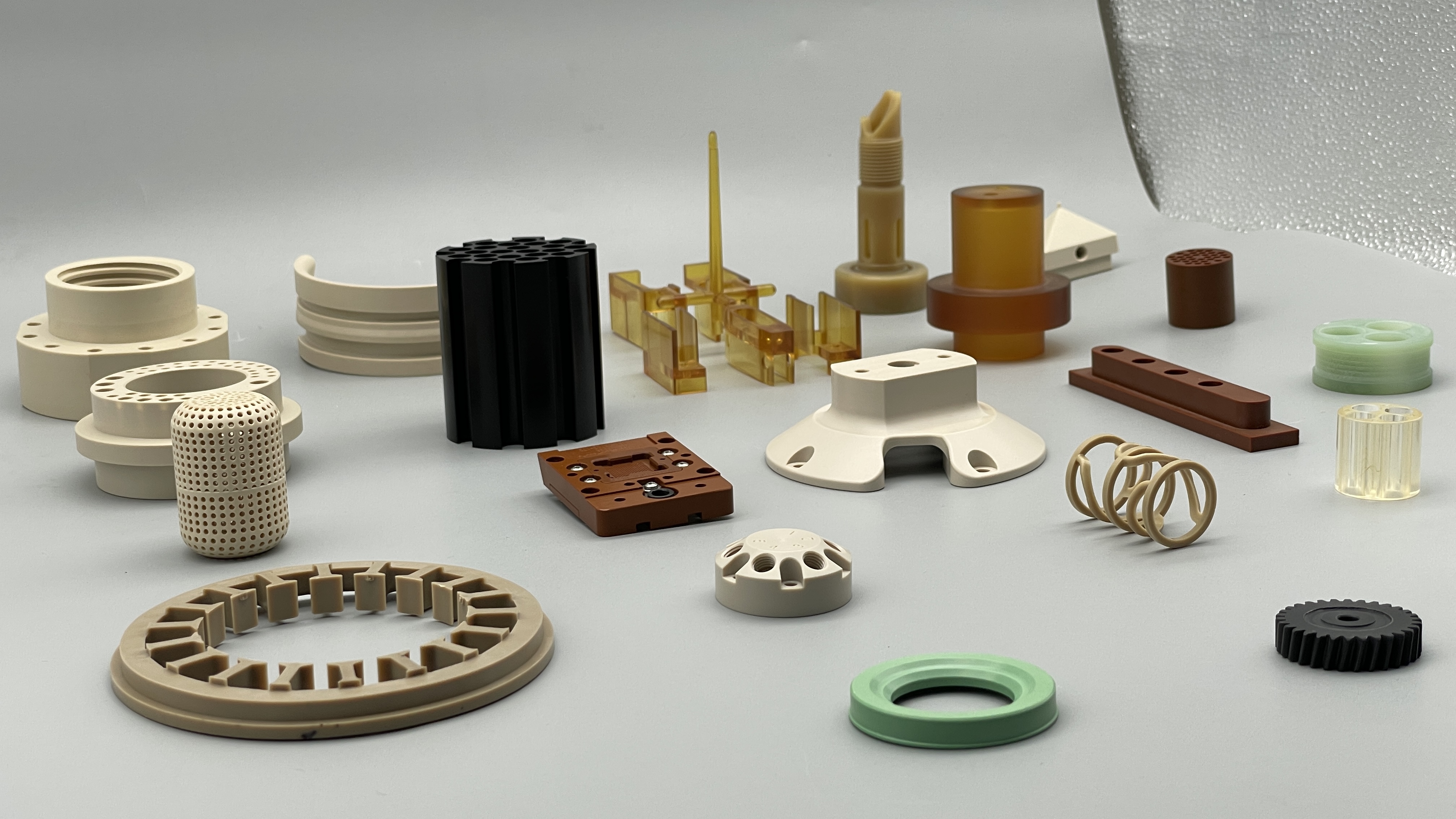

• Precision CNC machined components

Recommended Applications for PI

Semiconductor Industry

• High-temperature fixtures

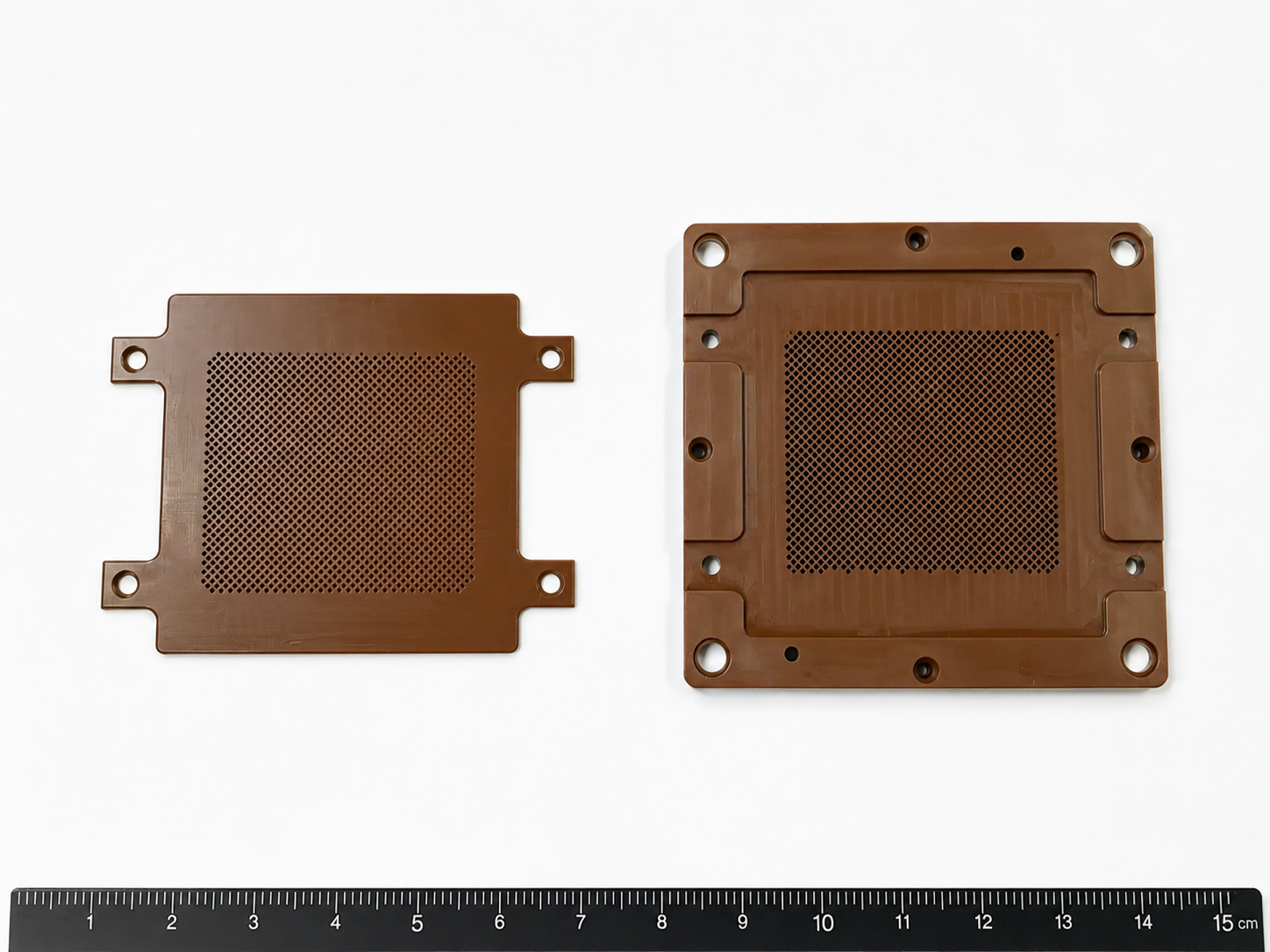

• Wafer carriers

• Insulation spacers

• Cleanroom high-temperature components

Electronics & Electrical

• Flexible FPC substrates

• High-voltage insulation films

• High-frequency circuit components

• Transformer insulation parts

Aerospace

• Extreme thermal insulation structures

• Aircraft wire insulation

• Radiation-resistant aerospace components

Extreme Environments

• Cryogenic applications

• Nuclear industry components

• Continuous operation above 260°C

High-End Electrical Insulation

• High-temperature cable insulation

• Electromagnetic isolation

• High-voltage insulation components

5. Quick Selection Guide

Choose PEEK if you need:

• Wear resistance

• Toughness

• Mass production

• Medical-grade compliance

• Easier machining

Choose PI if you need:

• Ultra-high temperature resistance

• Superior electrical insulation

• Radiation resistance

• Extreme thermal stability

General Rule

• Precision mechanical structures at normal/mid temperatures → PEEK

• Semiconductor insulation and extreme environments → PI

6. Extended Upgrade Option: PBI

For applications exceeding 300°C and requiring both extreme heat resistance and wear resistance, consider:

Polybenzimidazole (PBI)

PBI offers even higher thermal performance than both PI and PEEK and is currently one of the highest-performing commercially available engineering plastics for ultra-high-temperature applications.

7. Conclusion

Both PEEK and PI are outstanding high-performance engineering plastics capable of solving long-standing industrial challenges such as:

• Lightweight vs. high strength

• Extreme resistance vs. machinability

PEEK

• Balanced overall performance

• Flexible processing

• Broad application range

• The “all-around performer”

PI

• Exceptional extreme-environment capability

• Specialized for high-end applications

• The “specialist performer”

Neither material is an absolute replacement for the other.

Material selection should consider:

• Operating temperature

• Mechanical load

• Electrical requirements

• Machining method

• Cost

• Environmental conditions
