In recent years, driven by the rapid growth of semiconductors, new energy, life sciences, analytical instruments and high-purity fluid systems, Ultra High Purity PEEK (abbreviated as UHP PEEK) has become a hot topic across industries.
Many people simply believe that UHP PEEK refers to materials with:
Lower metal content
No additives
Purer raw materials
However, leading global manufacturers hold a far more comprehensive understanding of UHP PEEK.
For advanced manufacturing industries, materials must deliver excellent mechanical properties, heat resistance and chemical resistance. More importantly, the material itself must not act as a source of contamination.

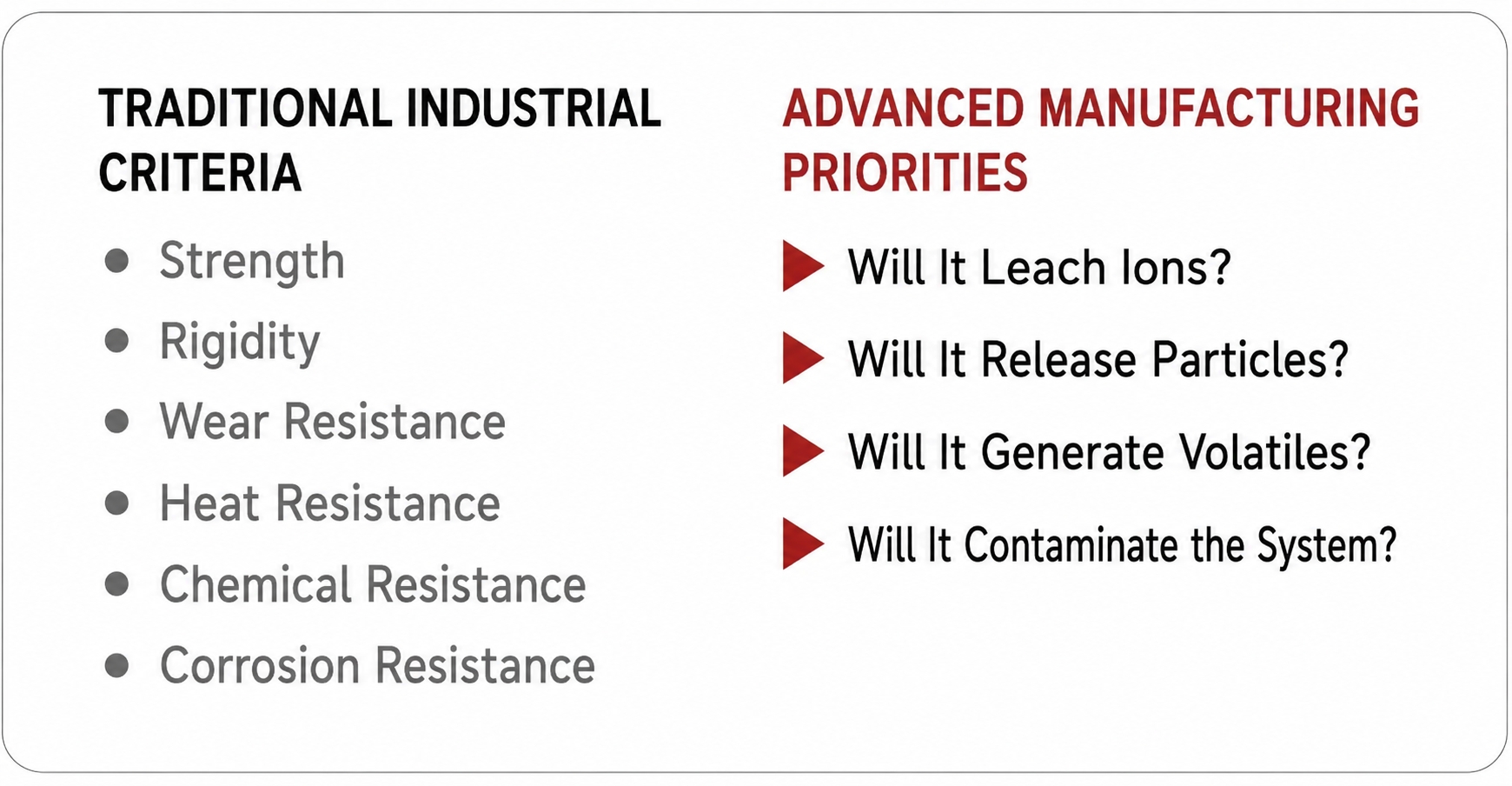

Traditional industrial evaluation of standard PEEK mainly focuses on:
Strength
Rigidity
Wear resistance
Heat resistance
Chemical corrosion resistance
By contrast, semiconductor and high-purity fluid system users care most about the following questions:
Will ions leach out?
Will particles shed off?
Will volatile substances be released?
Will the material contaminate the whole system?
Therefore, the core goal of UHP PEEK has shifted from "improving material performance" to "contamination control".

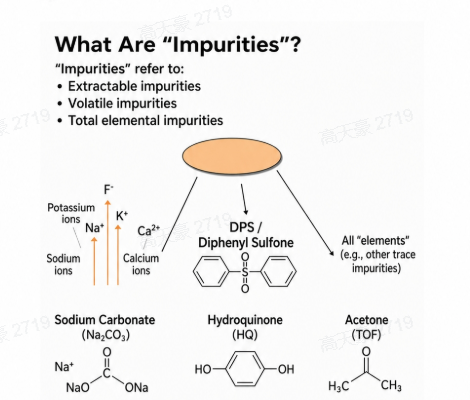

Global public technical data categorizes three main types of impurities that UHP PEEK needs to manage:
Contaminants released by materials when exposed to pure water, acid, alkali and other media.
Main leachable ions include:
Na⁺ (Sodium ion)
K⁺ (Potassium ion)
Ca²⁺ (Calcium ion)
F⁻ (Fluoride ion)
Trace organic residues inside materials that volatilize under high temperature, vacuum or plasma conditions.
Typical residual substances:
DPS (Diphenyl Sulfone)
Acetone
These invisible contaminants can cause severe damage to high-end precision equipment.
Total quantity of all elemental impurities contained in the material matrix.
Key monitored metallic elements:
Fe, Al, Cu, Ni
Even ppm-level contamination will damage product yield for advanced manufacturing processes.
Metal ions are one of the most harmful contamination sources for semiconductor manufacturing.
Elements including sodium (Na), potassium (K), calcium (Ca) and iron (Fe) can migrate onto wafer or product surfaces even at extremely low concentrations.
Public technical documents state one core R&D target of global leading UHP PEEK suppliers:
Sodium content < 1 ppm
Sodium content is controlled below 1 ppm, reaching as low as 0.2 ppm.

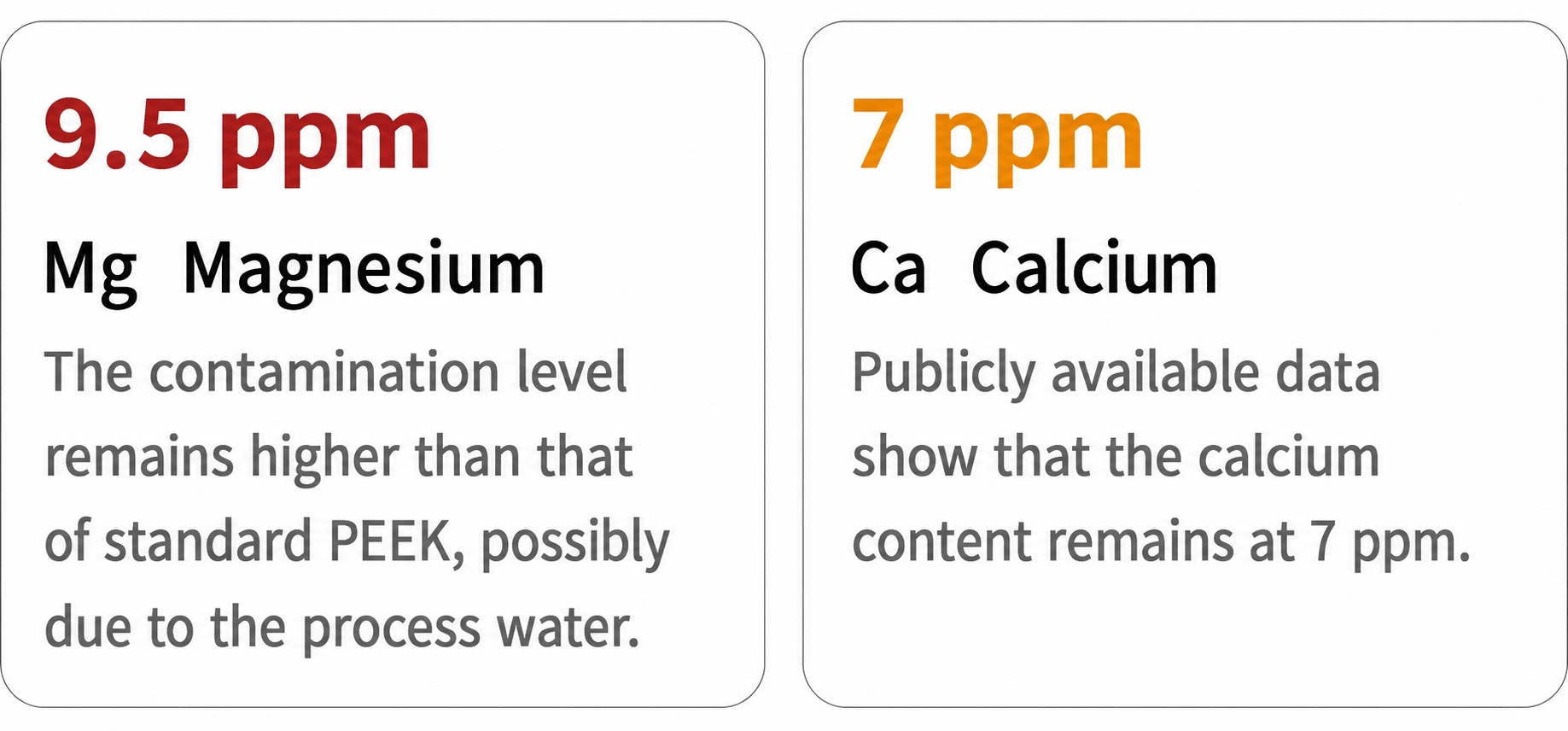

Magnesium contamination reaches 9.5 ppm, far exceeding the standard PEEK threshold of <1 ppm. Process water is suspected as the contamination source. We are conducting continuous verification tests with UPW (Ultra Pure Water) to solve this issue.
Calcium content remains at 7 ppm.
Many materials pass factory cleanliness tests, yet still trigger system contamination after long-term service.
The root cause is internal residuals that gradu
ally leach out under exposure to:
UPW (Ultra Pure Water)
Acid solution
Alkali solution
High-temperature environments
For this reason, testing standards such as SEMI F57 and ICP-MS are widely adopted.

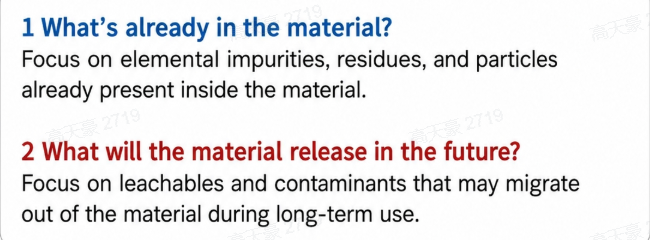

High-purity material assessment does not only analyze what impurities exist inside the material, but also what contaminants the material will release over time.
Under vacuum, high-temperature and plasma environments, trace organic residues inside the polymer will volatilize.
These volatile substances will lead to multiple risks:
Thin film contamination on precision components
Higher particulate pollution risks
Reduced long-term stability of production equipment
Truly qualified UHP PEEK requires both ultra-low metal ion content and low outgassing performance.
Most people assume the key difference between UHP PEEK and ordinary PEEK lies in testing standards. In fact, the manufacturing process creates the biggest cost gap.

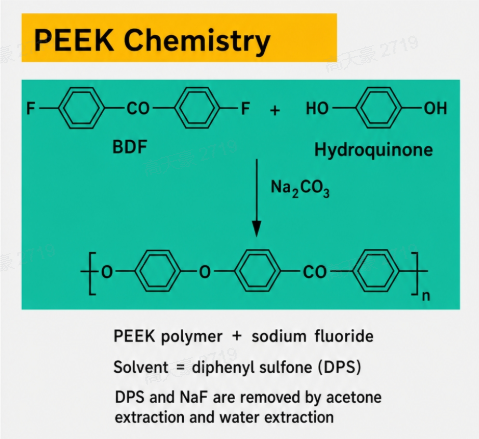

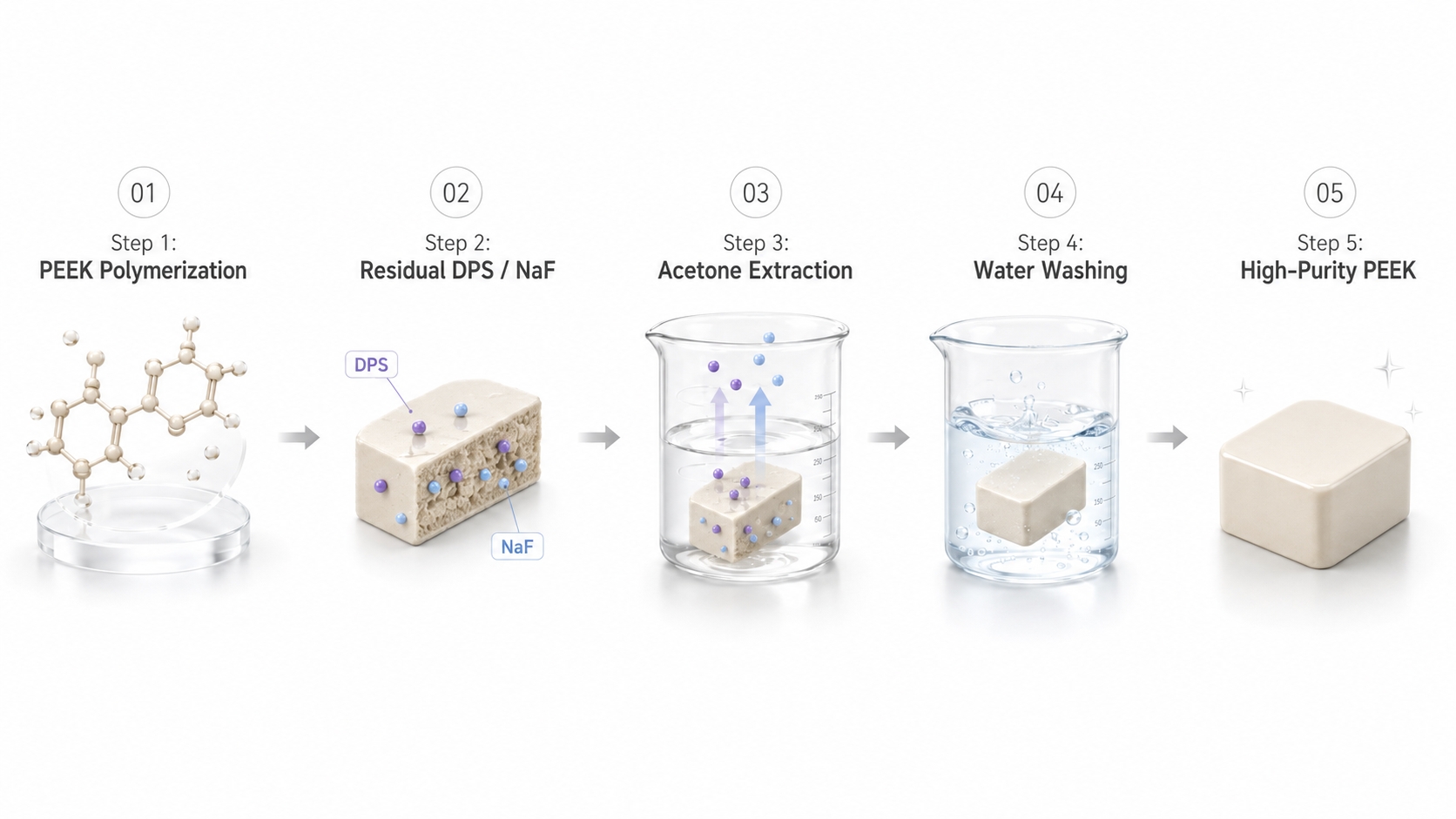

PEEK polymerization generates two major residuals:
DPS (Diphenyl Sulfone), the polymerization solvent residue
NaF (Sodium Fluoride), reaction by-product

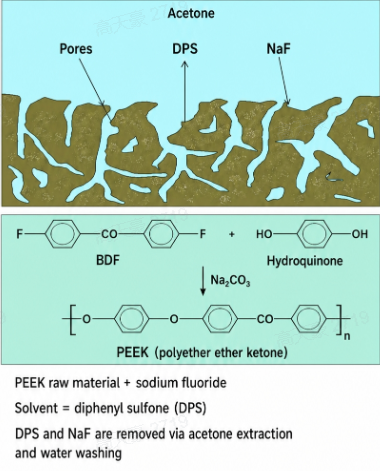

Extra dedicated purification procedures are required to remove these residuals:
Acetone leaching

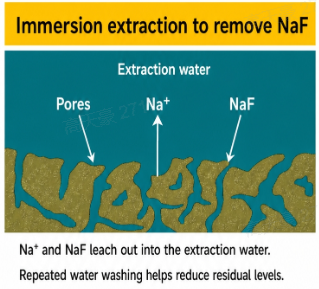

Water leaching
The premium cost of UHP PEEK comes not only from high-grade base resin, but also from additional purification processing expenses.
Residual levels are reduced through acetone leaching and water leaching.
Surface cleaning and post-treatment can deliver spotless exterior surfaces for most materials, yet long-term operational reliability depends entirely on the purity inside the material bulk.
A key concept proposed in global industry literature:

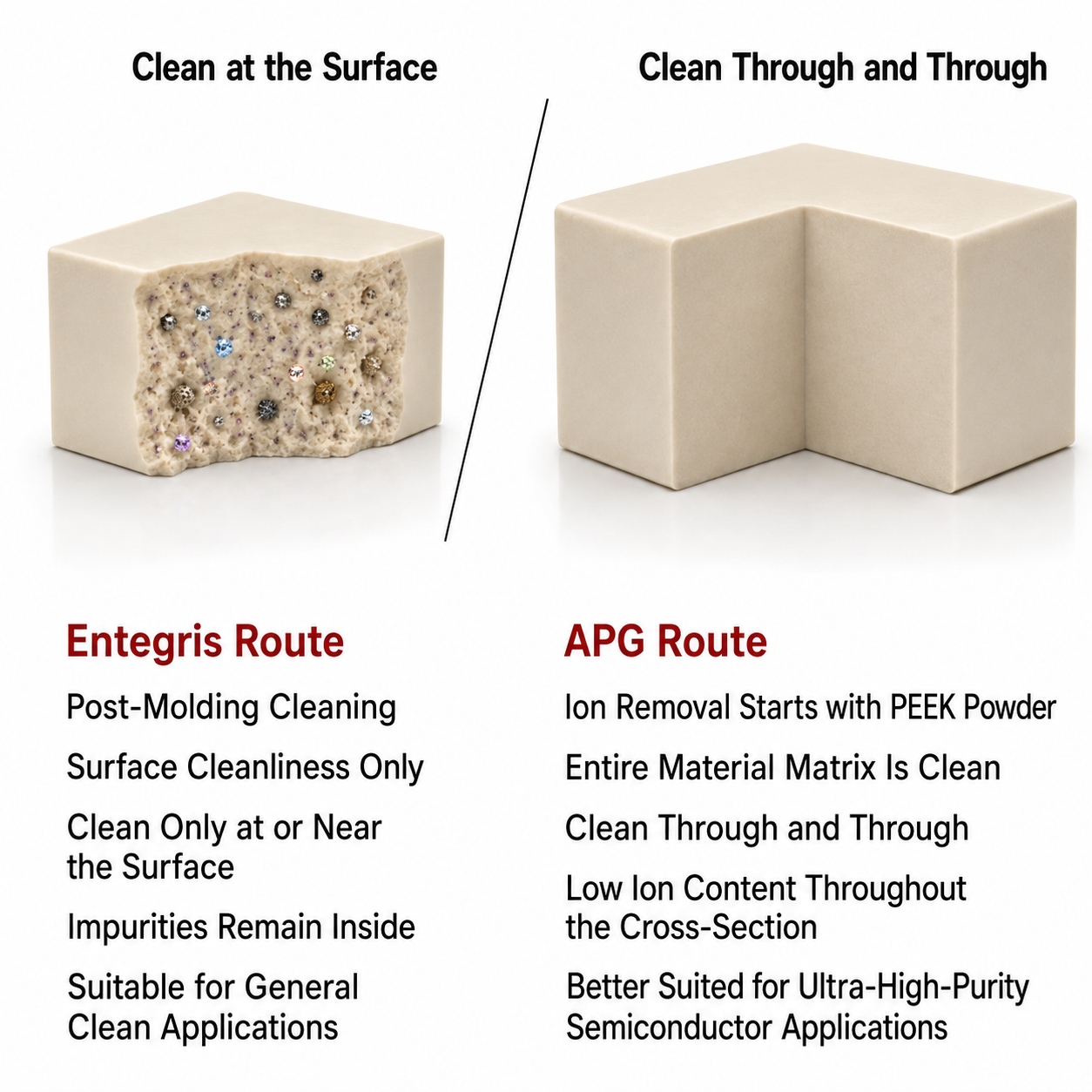

Clean Through and Through — Uniform purity from the material core to outer surface.
In contrast:
Clean only at or near the surface — Only the outer layer is clean, with contaminants trapped deep inside the material.
Even top global material manufacturers face persistent hurdles in UHP PEEK development. Public technical data shows:
Magnesium residual level hits 9.5 ppm
Calcium residual level stays at 7 ppm
Industry analysis links these elevated metal impurities to the water system used in purification cycles.
This proves that high-purity material standards are not fixed benchmarks, but targets requiring continuous iteration and optimization.
With the advancement of semiconductors, high-purity fluid systems, new energy and high-end precision equipment, clients’ requirements for PEEK have shifted from simply "whether the material can work" to "whether the material will introduce contamination".

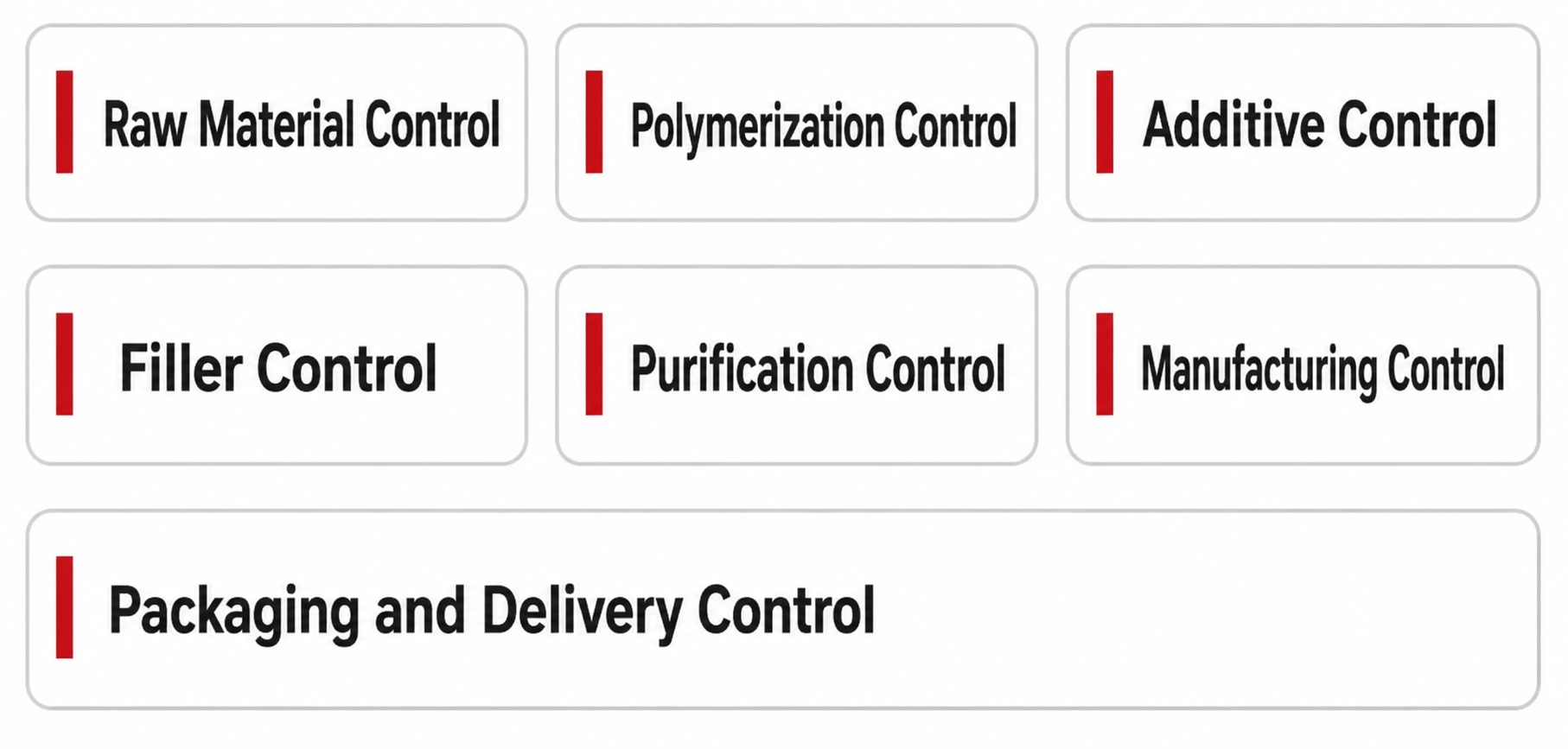

Genuine UHP PEEK is far more than a low-metal formulation. It relies on systematic strict control across all links:
Raw material control
Polymerization process control
Additive formulation control
Filler control
Purification process control
Molding & manufacturing control
Cleanroom packaging & delivery control
Competition in high-purity specialty materials has fundamentally transformed from performance rivalry to competition over contamination control capability.
