10⊃1;⁰–10⊃1;⊃2; Ω: The “Critical Point” of ESD-Safe PEEK — How to Balance Performance and Safety

In semiconductor fabs, static electricity is invisible and imperceptible, yet its destructive power can act within nanoseconds.

Direct breakdown:

Humans typically cannot sense electrostatic discharge below 3000 V. However, for chips with line widths of only a few nanometers, an accidental discharge of just a few dozen volts can break through the gate oxide layer, resulting in immediate wafer failure.

Potential Induced Damage (PID):
Even more dangerous are low-voltage discharges. The chip may not fail immediately, but internal damage remains, leading to early product failure and becoming a hidden reliability risk for equipment.

Particle attraction:
A charged surface behaves like a vacuum cleaner, attracting microscopic particles from the air. In a Class 10 cleanroom, a single 0.1 μm particle landing on the photolithography area may ruin the entire wafer pattern.

Therefore, from wafer fabrication to packaging, testing, and transportation, ESD-safe materials are essential. However, different processes and contact conditions require different levels of electrostatic protection—which leads to the key question of material resistivity selection.

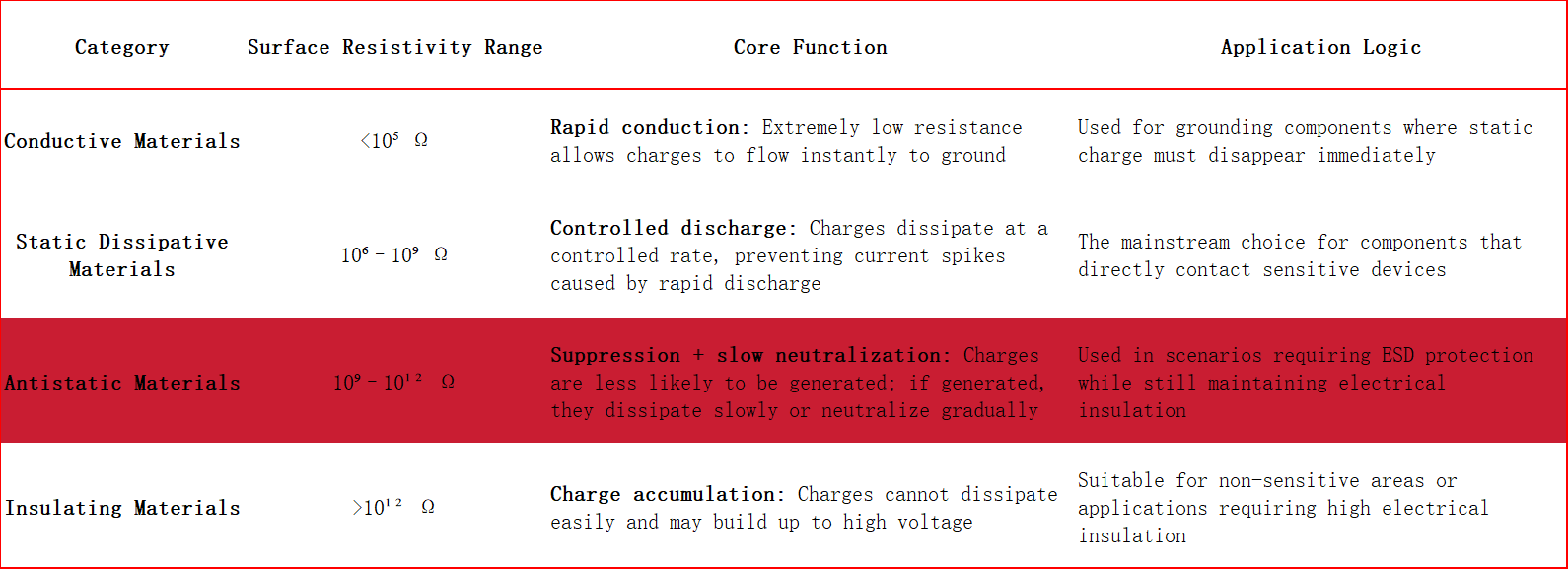

The ESD Material Family: Four Resistivity Levels, Four “Roles”

The core indicator of ESD materials is surface resistivity (Ω). It is not a matter of “the lower the better,” but rather matching the application scenario. These four categories can be viewed as four different “roles” within a semiconductor workshop.

10⊃1;⁰–10⊃1;⊃2; Ω ESD-Safe PEEK: Designed for “Critical Scenarios”

In semiconductor manufacturing, certain applications place seemingly contradictory requirements on materials:

• They must be ESD-safe but not conductive

• High-temperature resistant yet ultra-clean

• Maintain PEEK’s mechanical strength while providing anti-static functionality

This is exactly where 10⊃1;⁰–10⊃1;⊃2; Ω ESD PEEK comes into play.

Rather than replacing conductive or dissipative materials, it fills the gap between insulation and conductivity.

1. Suppressing Charge Generation Instead of Relying on Grounding

The core logic of static dissipative materials (10⁶–10⁹ Ω) is rapid charge dissipation, which requires a reliable grounding path. However, in certain precision structures, grounding may be inconvenient—or grounding itself may interfere with electrical design.

Materials in the 10⊃1;⁰–10⊃1;⊃2; Ω range follow a different strategy:

• Suppress charge generation:
  Material modification reduces the likelihood of triboelectric charging.

• Gradual neutralization:
  Even if charges are generated, they can slowly dissipate through micro-conductive pathways or neutralize with ions in the surrounding environment.

• Applicable scenarios:
  Ideal for situations where grounding is difficult or where both electrical insulation and ESD protection are required.










•

2. Preserving the “Signature Properties” of PEEK

Conductive PEEK (<10⁵ Ω) usually requires a large amount of carbon fillers. While conductivity improves, this can lead to reduced mechanical performance (e.g., increased brittleness).

In contrast, 10⊃1;⁰–10⊃1;⊃2; Ω ESD PEEK typically achieves anti-static performance through intrinsic modification or minimal additive technology, preserving PEEK’s original advantages:

• High temperature resistance (continuous use up to 260 °C)

• High mechanical strength (capable of replacing metal in many applications)

• Excellent chemical resistance (tolerates strong acid and alkali cleaning)

• Low ionic contamination (maintains wafer purity)




3. Bridging the Gap Between Insulation and Dissipation

• Standard PEEK (insulator >10⊃1;⊃2; Ω):
  Suitable for applications requiring high insulation but may accumulate static electricity under high-speed friction.

• Static dissipative materials (10⁶–10⁹ Ω):
  Ideal for grounded systems requiring rapid charge dissipation.

• ESD PEEK (10⊃1;⁰–10⊃1;⊃2; Ω):
  Positioned between the two—allowing slow charge release to prevent accumulation while maintaining insulation properties, ensuring circuit designs are not affected.

It is not necessarily “better”, but “different”—a specialized solution for applications that require PEEK performance, ESD protection, and electrical insulation simultaneously.Typical Engineering Applications of JUTAIPEEK® ESD10#12

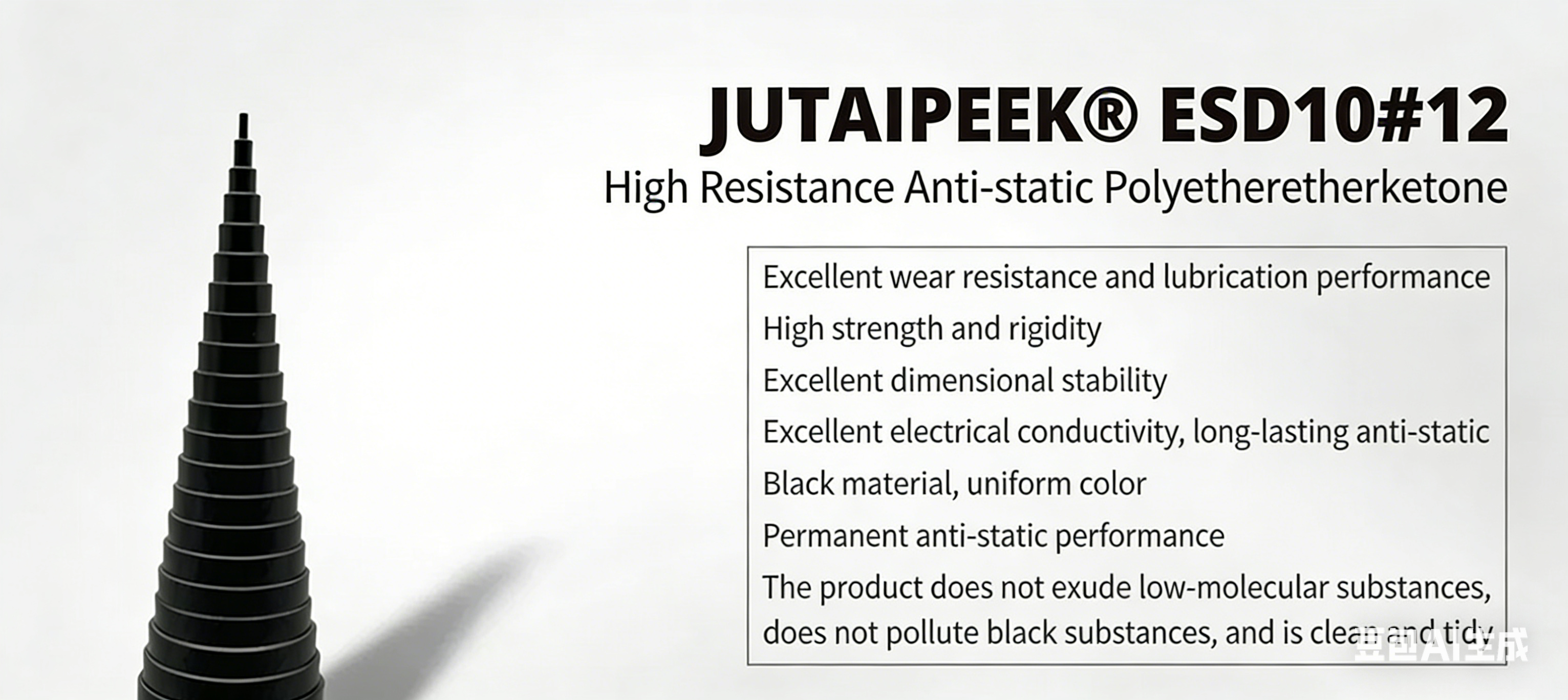

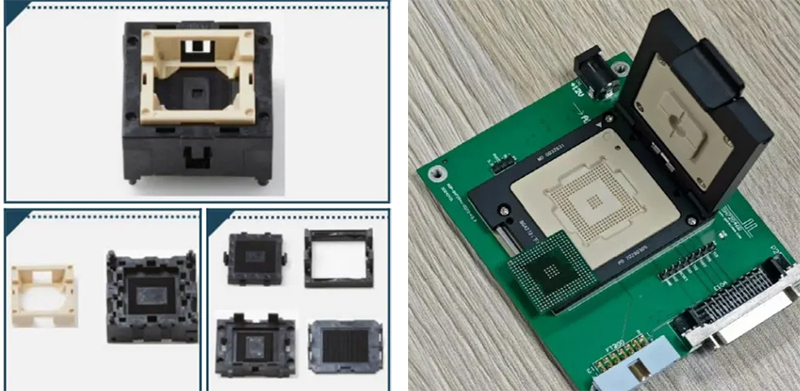

• Semiconductor IC test sockets

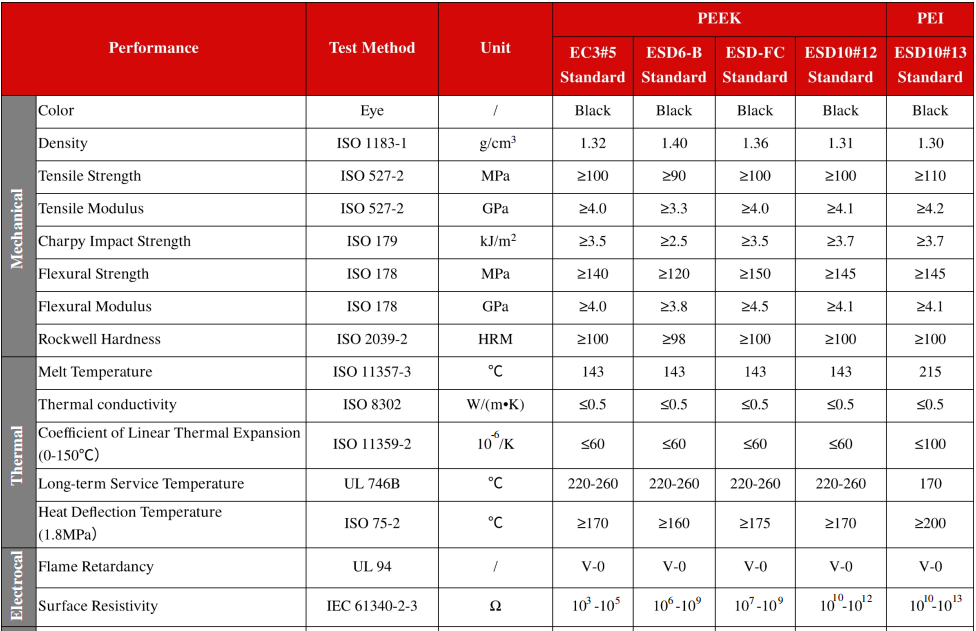

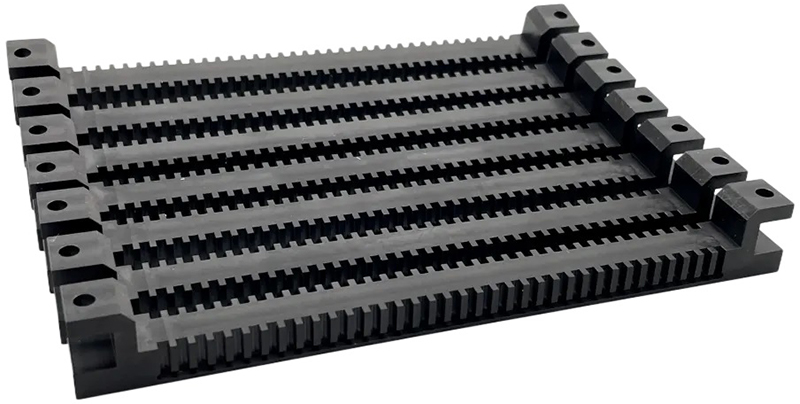

• Wafer handling components (Waffle Pads, Trays)

• Probe station components

• Insulating support structures
