Availability: | |||||||||
---|---|---|---|---|---|---|---|---|---|
Quantity: | |||||||||

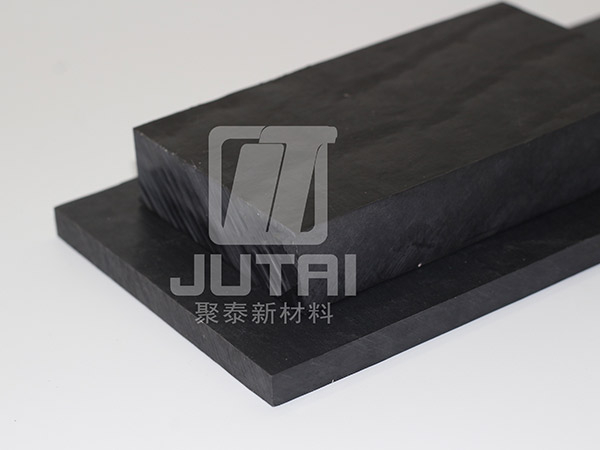

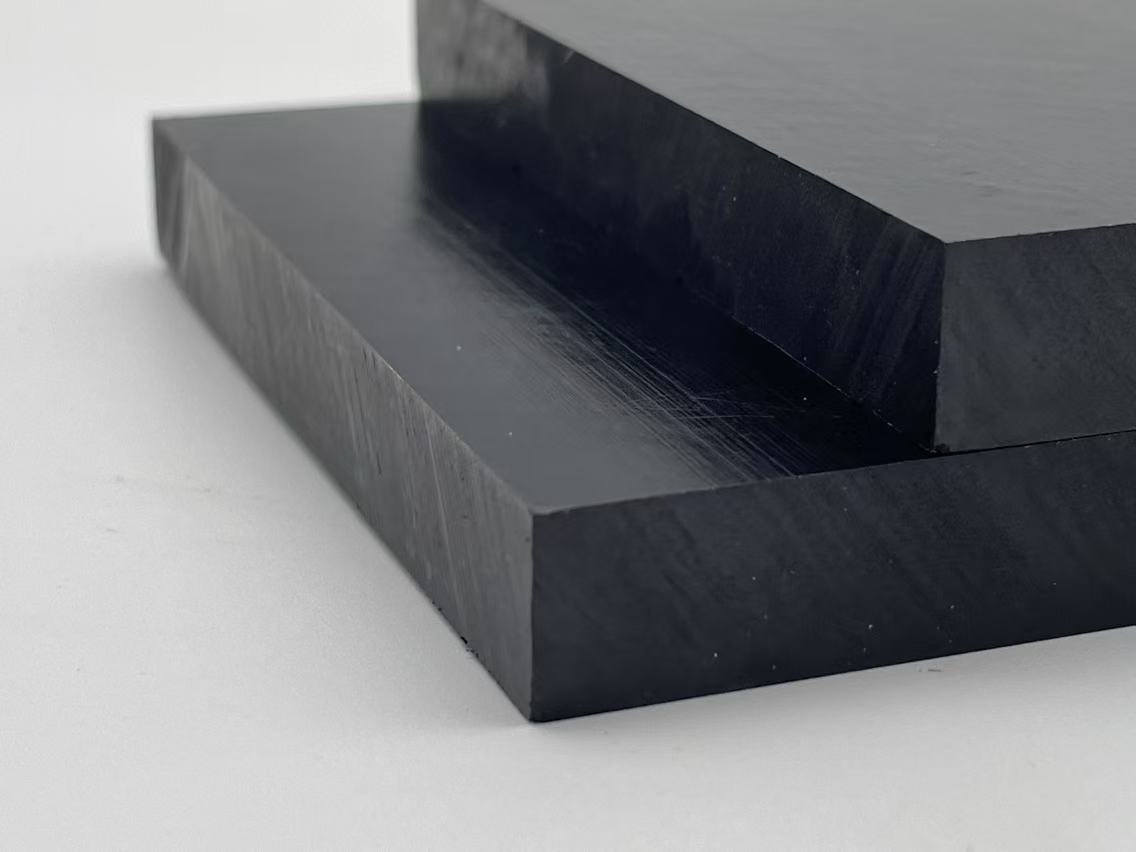

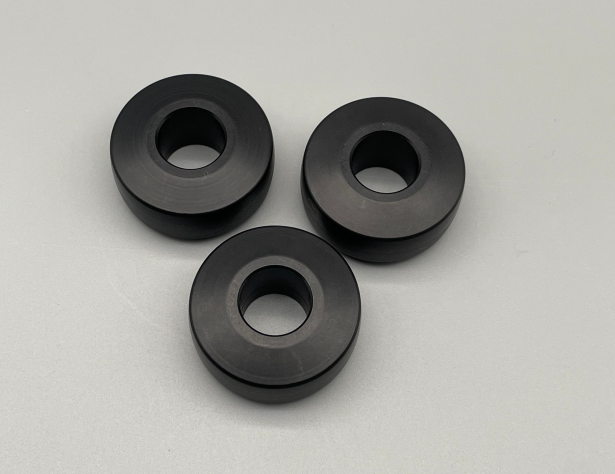

JUTAIPEEK®ESD-FC, PEEK ESD sheet is a kind of PEEK sheet profile materials with uniform, stable, and concentrated surface resistivity, keep surface resistivity at 10^7-10^8Ω/sq & 10^8-10^9Ω/sq.
it could used for complex structure components. It also had outstanding mechanical properties, heat-resistance, chemical resistance, wear-resistance and antistatic property. This type of products can be applied as auxiliary material in semiconductor products processing, semiconductor parts, industrial explosion-proof parts and other required strict ESD components. It is mainly used in handling high-sensitivity components and can remarkably minimize the damage of electronics components.
JUTAIPEEK®ESD-FC, PEEK ESD sheet is a kind of PEEK sheet profile materials with uniform, stable, and concentrated surface resistivity, keep surface resistivity at 10^7-10^8Ω/sq & 10^8-10^9Ω/sq.
it could used for complex structure components. It also had outstanding mechanical properties, heat-resistance, chemical resistance, wear-resistance and antistatic property. This type of products can be applied as auxiliary material in semiconductor products processing, semiconductor parts, industrial explosion-proof parts and other required strict ESD components. It is mainly used in handling high-sensitivity components and can remarkably minimize the damage of electronics components.
High stiffness and mechanical strength
Good sliding frictional property
High dimensional stability
Outstanding antistatic property with surface resistivity 10^7-8, 10^8-9Ω/sq, the surface resistivity was uniform, stable, and concentrated,
it could used for complex structure components
Black color, and uniform color
No small molecule substance releasing
High stiffness and mechanical strength
Good sliding frictional property
High dimensional stability
Outstanding antistatic property with surface resistivity 10^7-8, 10^8-9Ω/sq, the surface resistivity was uniform, stable, and concentrated,
it could used for complex structure components
Black color, and uniform color
No small molecule substance releasing

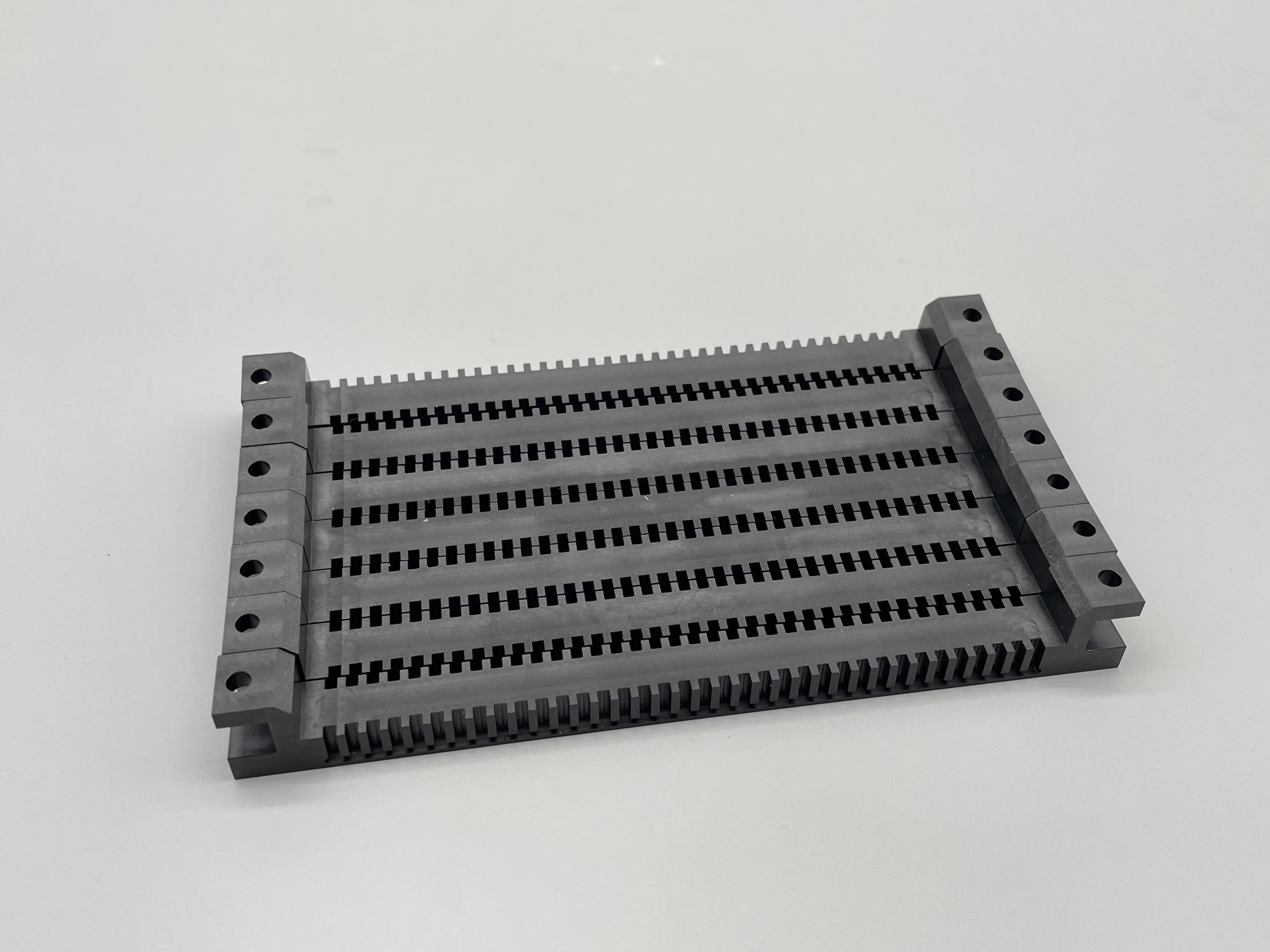

● ESD PEEK in Semi-conductor Industry
● Petrochemical Industry
● Aerospace Industry
● Industrial Explosion-proof
● Chemical Industry
● Light Spinning Industry
Instructions for Use
Machined by lathes or milling machine to remove surface
heat-treatment aged layers, the thickness of removal is 0.5-1mm.
PCD coating milling tool is recommended for machining.
PCD coating drill bit is recommended. Start with small hole
during machining and subsequently expand the hole.
Keep the cutting fluid fully cooled during machining to prevent
burning material from sticking to the knife.
Water-soluble cutting fluid is recommended
● ESD PEEK in Semi-conductor Industry
● Petrochemical Industry
● Aerospace Industry
● Industrial Explosion-proof
● Chemical Industry
● Light Spinning Industry
Instructions for Use
Machined by lathes or milling machine to remove surface
heat-treatment aged layers, the thickness of removal is 0.5-1mm.
PCD coating milling tool is recommended for machining.
PCD coating drill bit is recommended. Start with small hole
during machining and subsequently expand the hole.
Keep the cutting fluid fully cooled during machining to prevent
burning material from sticking to the knife.
Water-soluble cutting fluid is recommended
Performance | Test Method | Unit | PEEKESD-FC |
Color | Eye | / | Black |
Density | ISO1183-1 | g/cm3 | 1.35-1.36 |
Tensile Strength | ISO527-2 | MPa | 100 |
Tensile Modulus | ISO527-2 | GPa | 4.0 |
Izod Impact Strength (Notched) | ISO180 | kJ/m2 | 3.5 |
Flexural Strength | ISO178 | MPa | 150 |
Flexural Modulus | ISO178 | GPa | 4.5 |
Shore D Hardness | ISO868 | Shore D | 80 |
Rockwell Hardness | ISO2039-2 | M | 100 |
Melt Temperature | ISO11357-3 | ℃ | 334 |
Coefficient of Linear Thermal Expansion | ISO11359-2 | 10-6/K | ≤60 |
Long-term Service Temperature | UL 746B | ℃ | 220-260 |
Heat Deflection Temperature | ISO 75-2 | ℃ | 175 |
Water Absorption (23℃、water、24h) | ISO 62 method 1 | % | ≤0.1 |
Flame Retardancy | UL 94 | / | V-0 |
Surface Resistivity | EC61340-2-3 | Q/sq | 106-10s |
Notes: Antistatic property is characterized by surface resistivity and the test methods are in accordance with IEC61340-2-3, and the testing electrode is Concentric Ring Electrode.
Performance | Test Method | Unit | PEEKESD-FC |
Color | Eye | / | Black |
Density | ISO1183-1 | g/cm3 | 1.35-1.36 |
Tensile Strength | ISO527-2 | MPa | 100 |
Tensile Modulus | ISO527-2 | GPa | 4.0 |
Izod Impact Strength (Notched) | ISO180 | kJ/m2 | 3.5 |
Flexural Strength | ISO178 | MPa | 150 |
Flexural Modulus | ISO178 | GPa | 4.5 |
Shore D Hardness | ISO868 | Shore D | 80 |
Rockwell Hardness | ISO2039-2 | M | 100 |
Melt Temperature | ISO11357-3 | ℃ | 334 |
Coefficient of Linear Thermal Expansion | ISO11359-2 | 10-6/K | ≤60 |
Long-term Service Temperature | UL 746B | ℃ | 220-260 |
Heat Deflection Temperature | ISO 75-2 | ℃ | 175 |
Water Absorption (23℃、water、24h) | ISO 62 method 1 | % | ≤0.1 |
Flame Retardancy | UL 94 | / | V-0 |
Surface Resistivity | EC61340-2-3 | Q/sq | 106-10s |
Notes: Antistatic property is characterized by surface resistivity and the test methods are in accordance with IEC61340-2-3, and the testing electrode is Concentric Ring Electrode.

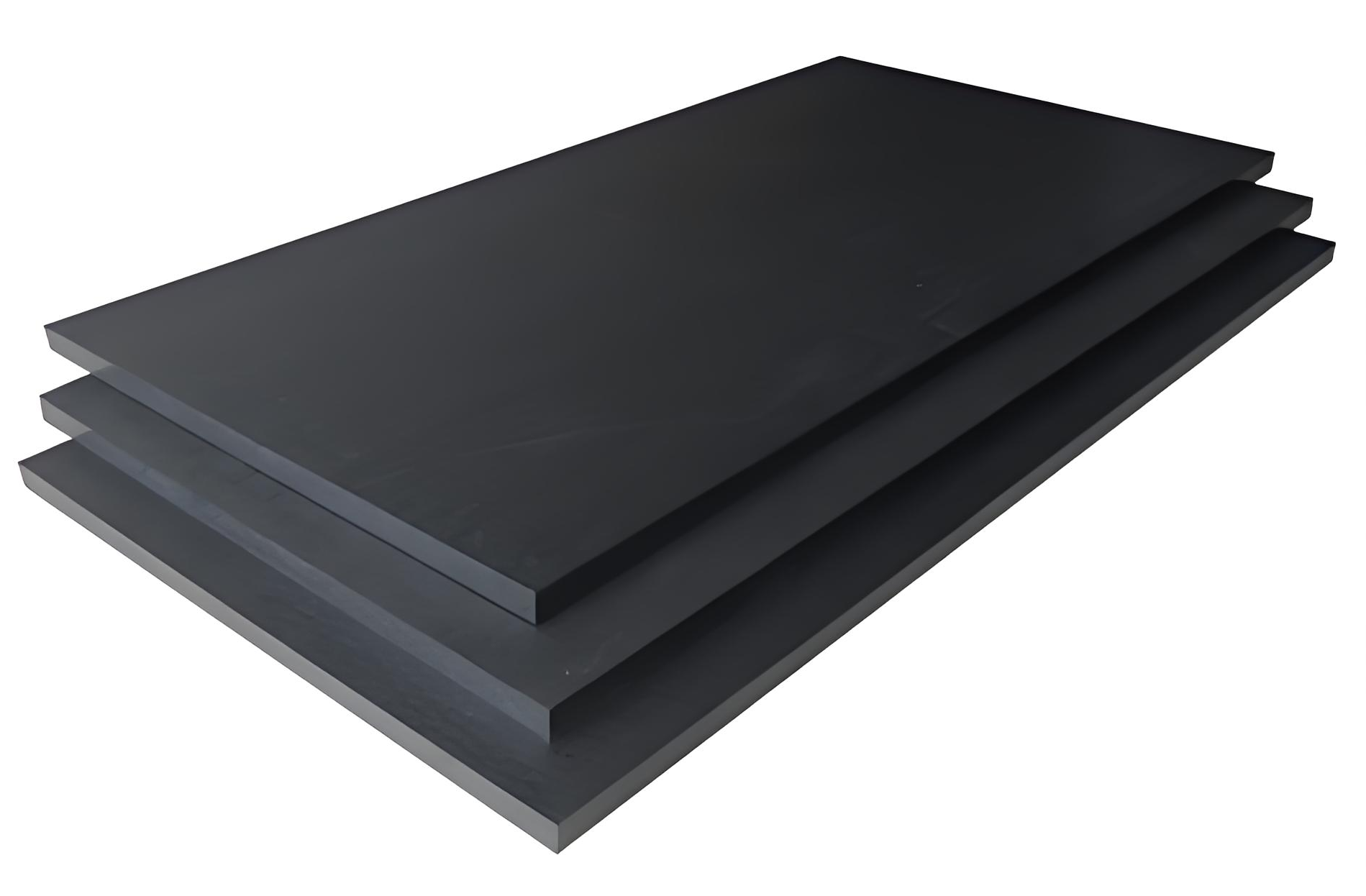

PEEK®ESD-FC Sheet Specification | ||
Dimension | Length(mm) | Weight(kg) |
6 x 620 | 1000 | 6.88 |
8 x 620 | 1000 | 8.61 |
10 x 620 | 1000 | 10.33 |
12 x 620 | 1000 | 12.05 |
15 x 620 | 1000 | 14.63 |
16 x 620 | 1000 | 15.49 |
20 x 620 | 1000 | 18.93 |
25 x 620 | 1000 | 23.23 |
30 x 620 | 1000 | 27.54 |
40 x 620 | 1000 | 36.14 |
50 x 620 | 1000 | 44.75 |
PEEK®ESD-FC Sheet Specification | ||
Dimension | Length(mm) | Weight(kg) |
6 x 620 | 1000 | 6.88 |
8 x 620 | 1000 | 8.61 |
10 x 620 | 1000 | 10.33 |
12 x 620 | 1000 | 12.05 |
15 x 620 | 1000 | 14.63 |
16 x 620 | 1000 | 15.49 |
20 x 620 | 1000 | 18.93 |
25 x 620 | 1000 | 23.23 |
30 x 620 | 1000 | 27.54 |
40 x 620 | 1000 | 36.14 |
50 x 620 | 1000 | 44.75 |
