the Heat Resistance Logic of High Performance Plastics

 the Heat Resistance Logic of High Performance Plastics

During material selection, "heat resistance" is almost always a required consideration, yet it is also one of the most easily misunderstood aspects.

Does a high Tg （Glass Transition Temperature）always mean better high-temperature resistance? Why do some materials have impressive parameters on paper but are not recommended for long-term use in reality?

In fact, instantaneous temperature resistance, long-term service temperature, and deformation temperature under load point to entirely different engineering problems. Confusing these concepts often leads material selection astray from the very beginning.

Below, we start with several commonly confused temperature concepts to help you see the true logic behind a material's "heat resistance."

Several Temperature Concepts Commonly Used in Engineering

1， Instantaneous Use Temperature
The peak temperature a material can withstand for a short period.
 Applicable for judging thermal shock and operational fluctuations. Not equivalent to long-term usable temperature.

2，Long-Term Service Temperature

The upper temperature limit at which a material can maintain structural and performance stability under long-term operating conditions.
This is the primary indicator we prioritize during material selection.

3， Heat Deflection Temperature (HDT)
The temperature at which a material begins to deform significantly when heated under a defined load.
Primarily used to judge dimensional stability at high temperatures, especially suitable for load-bearing components.

4， Softening Temperature
The temperature range at which a material begins to lose rigidity and soften noticeably.
 Used more for understanding material state changes, not directly as a service temperature.

5， Glass Transition Temperature (Tg)
The temperature range over which a material transitions from a "glassy state" (hard, high rigidity) to a "rubbery state" (soft, easily deformable).
 Tg marks a material state change zone, not a service limit temperature.

Differences in Temperature Resistance Indicators Among Typical Materials

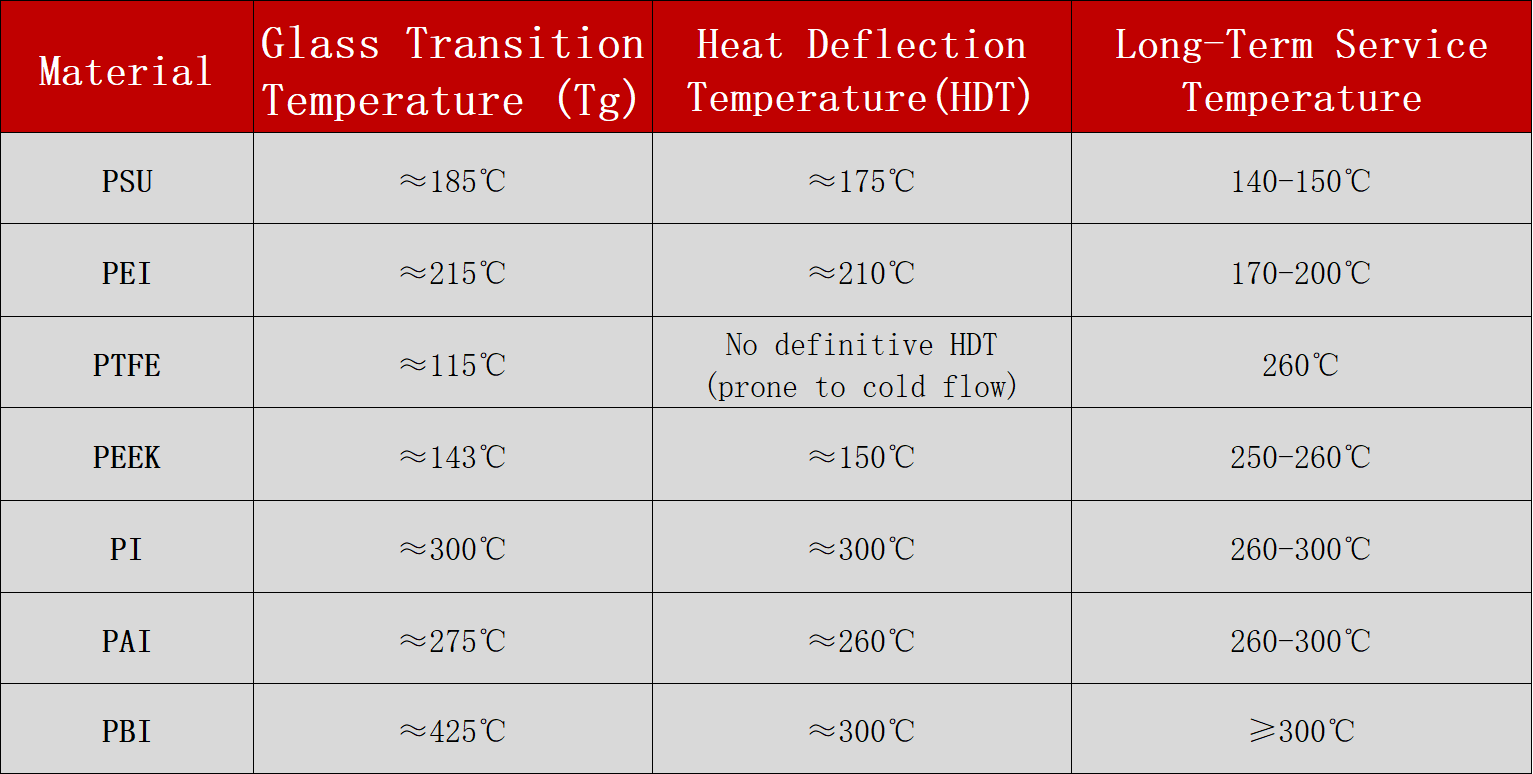

                                           Comparison of Common High-Performance Engineering Plastics (Typical Values)

                                   Note: Data are common typical values. Specific values depend on material grade and test conditions.

Why Tg Is Not the Sole Criterion for Judging Heat Resistance

A common misconception is:

The higher the Tg (Glass Transition Temperature), the more heat-resistant the material.

However, as seen in the table above:
● PEEK does not have a very high Tg
● Yet it possesses a long-term service temperature far exceeding that of PEI and PSU

The reason lies in material structure:
● PEI / PSU: Amorphous materials
Overall rigidity decreases rapidly as Tg is approached.

● PEEK: Semi-crystalline material
Crystalline regions can still provide structural support at high temperatures.

● PI / PAI / PBI: High-rigidity molecular structures
Maintain extremely low creep and high dimensional stability in high-temperature ranges.

What truly determines long-term heat resistance is the "ability to retain properties at high temperatures," not a single temperature point.

Factors Affecting Material Service Temperature

Under different operating conditions, the usable temperature can be completely different.

In engineering applications, the final temperature a material can "be used at" is typically determined collectively by the following factors:
1，Material structure (Amorphous / Semi-crystalline)
2，Whether it bears mechanical loads long-term
3，Duration of use and operation mode (Continuous / Intermittent)
4， Service environment (Air, Steam, Chemical media)
5， Need for reinforcement or modification
6，Component geometry, thickness, and heat dissipation conditions

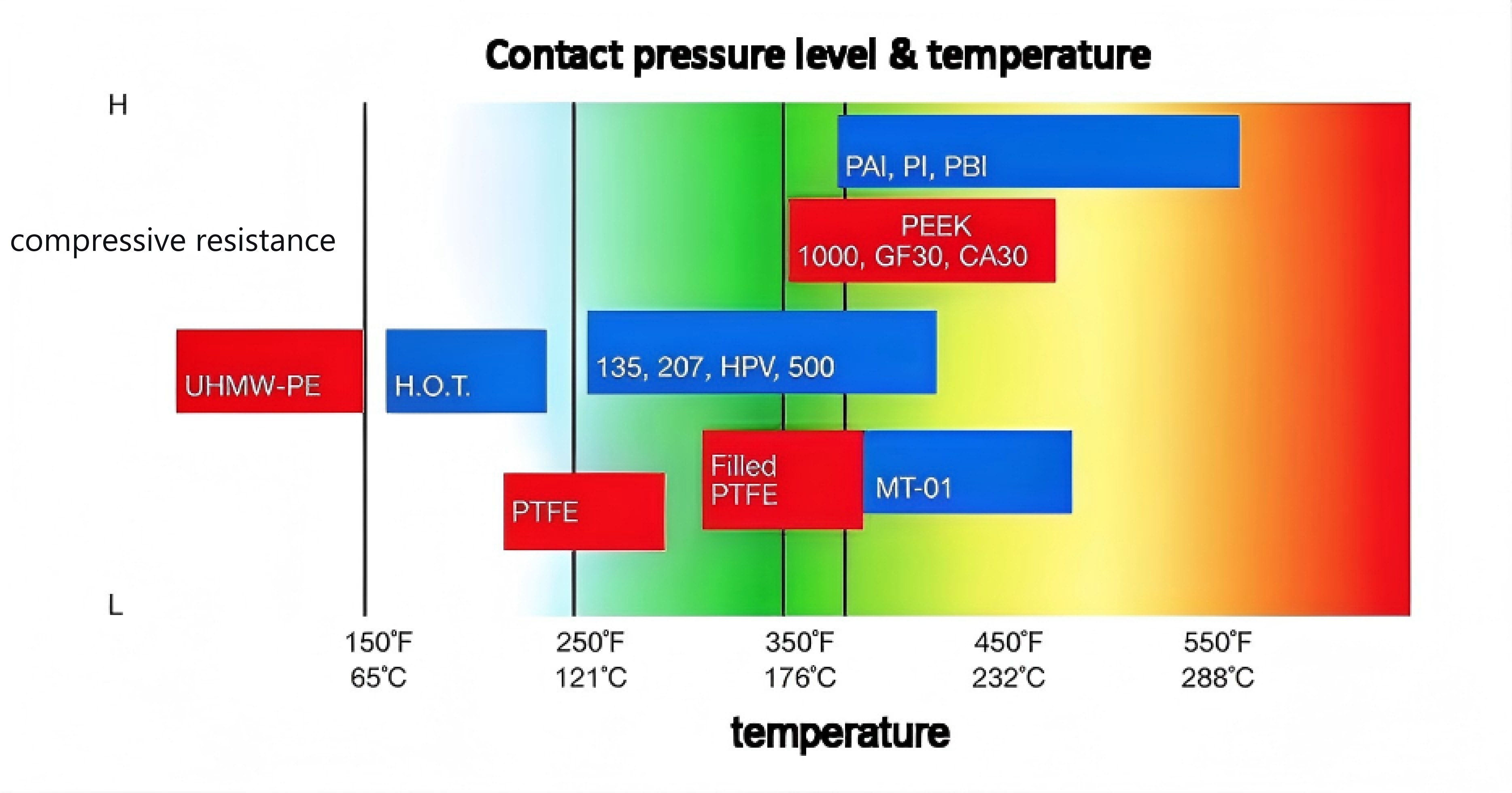

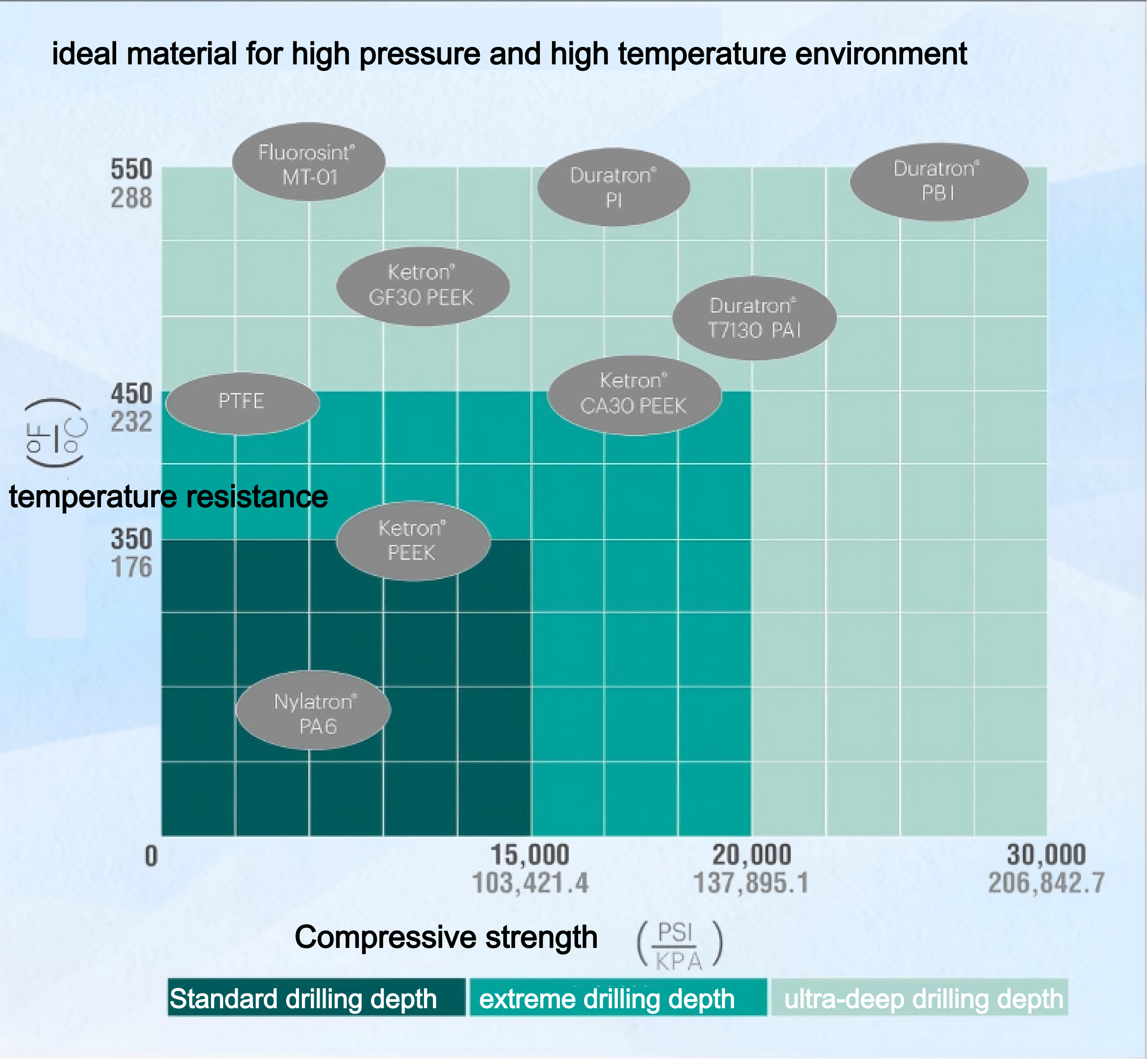

                                                             Performance comparison chart of sealing materials under high temperature and pressure.

From Material to Application: Systematic Material Selection is More Important

From an engineering perspective, these materials are not about "which one is more advanced," but about being suitable for different temperature ranges and operational needs.

● PSU / PEI
Primarily cover medium to high-temperature applications with higher requirements for dimensional stability and processing friendliness.

● PEEK
Suitable for long-term high-temperature operation while balancing comprehensive mechanical properties. A common choice among high-temperature engineering plastics.

● PI / PAI / PBI
Mainly used for even higher temperatures or more demanding environments. The focus shifts from "can it be processed" to "does it remain stable at high temperatures."

Within this context, material choice depends more on matching the actual operating conditions rather than simply ranking by heat resistance.

Conclusion

The "heat resistance" of a material is not a simple parameter, but a set of engineering judgment logic.

Material selection only becomes truly meaningful when temperature, time, load, and environment are considered together.

In complex operating conditions, a systematic material solution is often more important than a single material parameter.
