From Tribology Principles to the Wear-Resistant Design Philosophy of JUTAIPEEK®

In the high-performance engineering plastics industry, customers often ask questions such as:

· “We’re also using PEEK. Why does our product last only three months while our competitors’ products last two to three years?”

· “Why do two CF30 PEEK materials from different suppliers have such different service lives?”

· “Is there such a thing as the most wear-resistant PEEK material?”

Behind these questions lies a common misconception: many people regard wear resistance as merely a material property, while overlooking the fact that friction and wear are fundamentally the result of an entire tribological system.

1. The Service Life Is Determined by More Than the Material Itself

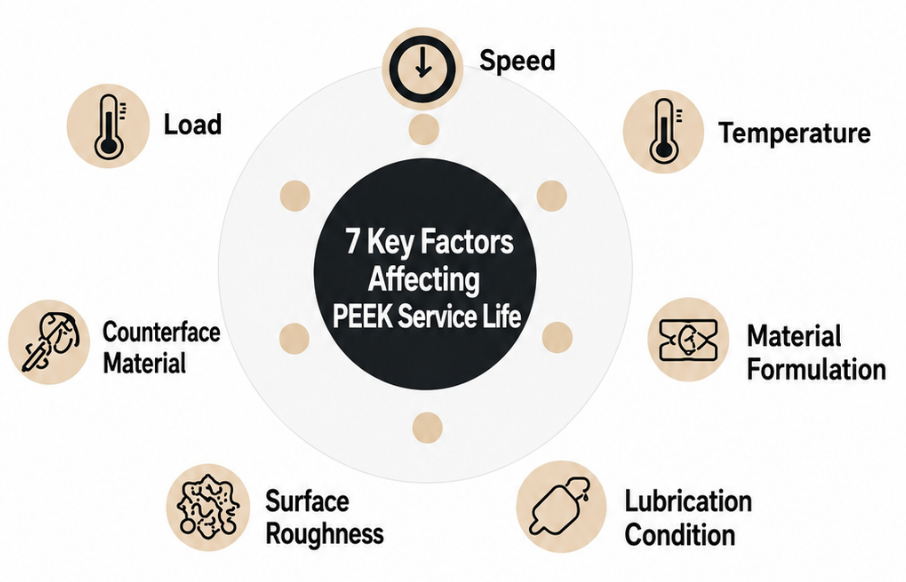

Based on JUTAI’s years of application experience, the service life of a PEEK component is typically influenced by:

· Applied load (Pressure)

· Sliding speed (Velocity)

· Operating temperature

· Counterface material

· Surface roughness

· Lubrication conditions

· Material formulation

The very same PEEK grade may exhibit several-fold—or even tenfold—differences in service life under different PV (Pressure × Velocity) operating conditions.

Therefore, professional wear-resistant design is not simply about selecting PEEK; it is about designing an optimized material system for the specific application.

2. Why PEEK Naturally Offers Excellent Wear Resistance

As a member of the polyaryletherketone (PAEK) family, PEEK possesses numerous outstanding characteristics:

· Continuous service temperature above 250°C

· Melting point of approximately 343°C

· Extremely low moisture absorption

· Outstanding chemical resistance

· Excellent dimensional stability

· Inherent wear and fatigue resistance

These advantages make PEEK widely used in:

· Bearing cages

· Guide rings

· Piston rings

· Pump and valve components

· Compressor valve plates

However, inherent wear resistance does not automatically make standard PEEK suitable for every operating condition.

3. Why CF30 PEEK Has Become the Industry Standard for Wear Applications

Many users assume carbon fiber reinforcement is added only to improve mechanical strength.

In reality, the greatest contribution of carbon fiber in tribological applications is thermal management.

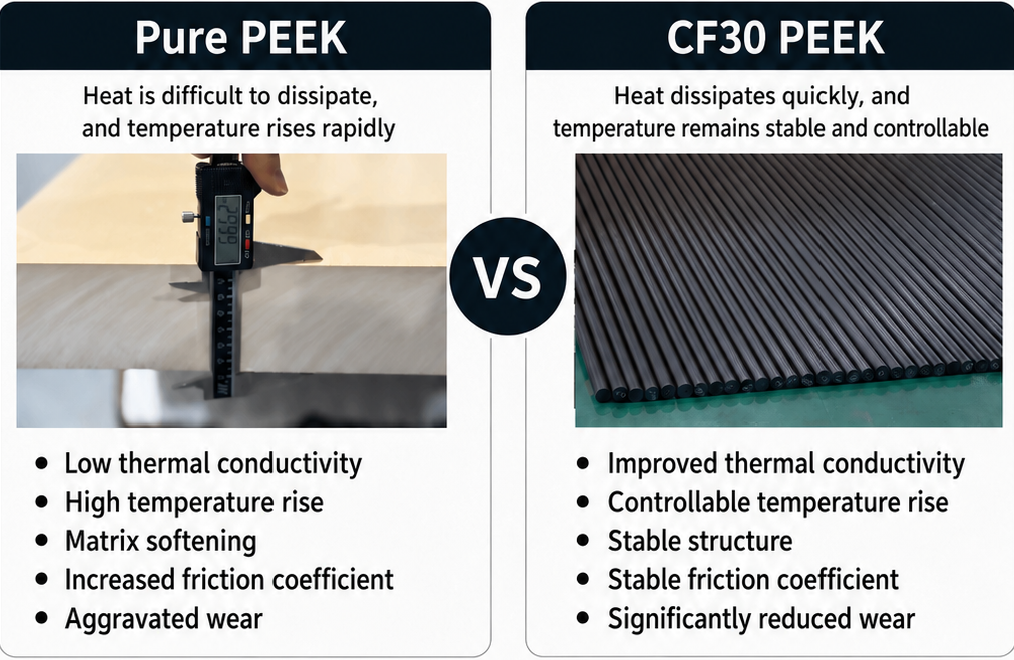

Pure PEEK has relatively low thermal conductivity, making it difficult to dissipate friction-generated heat efficiently. As interface temperatures rise:

· The polymer matrix begins to soften.

· Contact area increases.

· Friction coefficient rises.

· Wear accelerates.

This creates a self-reinforcing wear cycle.

With 30% carbon fiber reinforcement (CF30 PEEK):

· Elastic modulus increases.

· Compressive strength improves.

· Thermal conductivity is significantly enhanced.

· Heat dissipates more efficiently.

As a result, CF30 PEEK maintains a more stable friction behavior under high PV conditions, making it the preferred material for bearings, guide rails, and sliding components.

4. PTFE Is More Than Just a Lubricant

Many people believe PTFE simply makes the material “slipperier.”

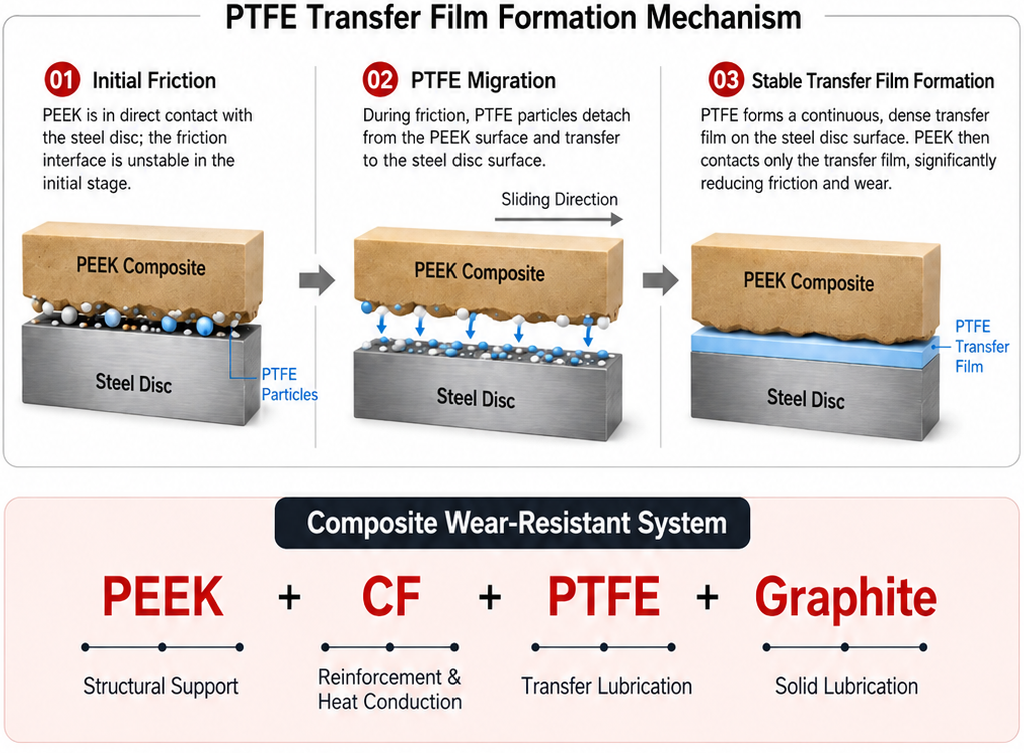

Its real value lies in its ability to form a stable transfer film.

During sliding against steel, PTFE gradually transfers onto the mating surface, creating a lubricating film that changes the contact interface from:

PEEK → Steel

to

PEEK/PTFE → PTFE Transfer Film

This dramatically reduces adhesive wear.

This explains why many premium bearing-grade PEEK materials utilize a composite formulation consisting of:

5. Why Hard Fillers Are Necessary for Heavy-Load Applications

Under extremely high loading conditions, fiber reinforcement alone is often insufficient.

Hard ceramic fillers such as:

· Silicon Carbide (SiC)

· Aluminum Oxide (Al₂O₃)

· Silicon Dioxide (SiO₂)

· Specialized mineral fillers

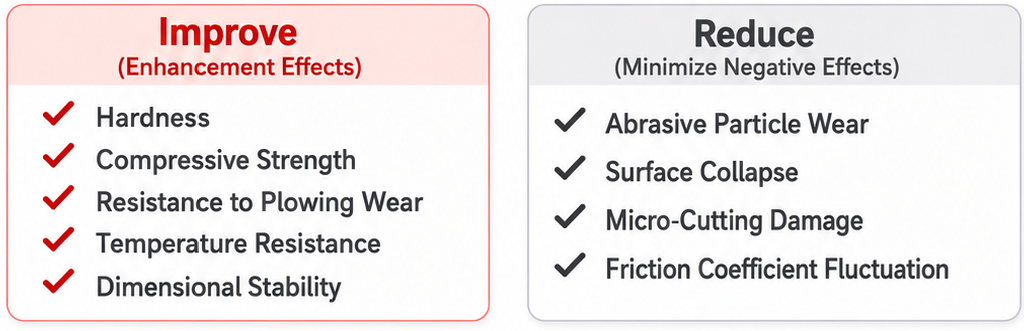

are frequently incorporated to:

Increase:

· Hardness

· Compressive strength

· Resistance to abrasive wear

Reduce:

· Particle wear

· Surface deformation

· Micro-cutting damage

These formulations are widely applied in heavy-duty sliding bearings and chemical processing equipment.

6. Why Some CF30 PEEK Materials Still Have Short Service Life

A common industry observation is that not all CF30 PEEK materials perform equally.

Major factors include:

Carbon Fiber Type

· Short fibers

· Long fibers

· Continuous fibers

Each provides significantly different tribological performance.

Fiber Dispersion

Poor dispersion creates stress concentration points that accelerate failure.

Fiber-Matrix Interfacial Bonding

Weak bonding allows fibers to detach during operation, increasing wear.

Crystallinity Control

Crystallinity directly influences:

· Stiffness

· Heat resistance

· Wear resistance

Manufacturing Process

Processing parameters including:

· Extrusion temperature

· Cooling rate

· Annealing process

all have substantial effects on final performance.

Therefore, wear-resistant PEEK depends not only on formulation but also on manufacturing expertise.

7. How JUTAI Designs Wear-Resistant PEEK Systems

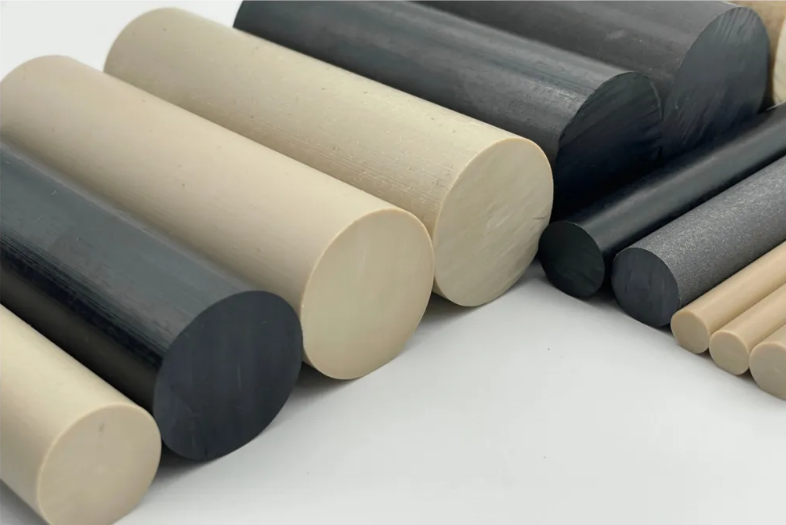

JUTAI specializes in manufacturing PEEK sheets, rods, and precision-machined components.

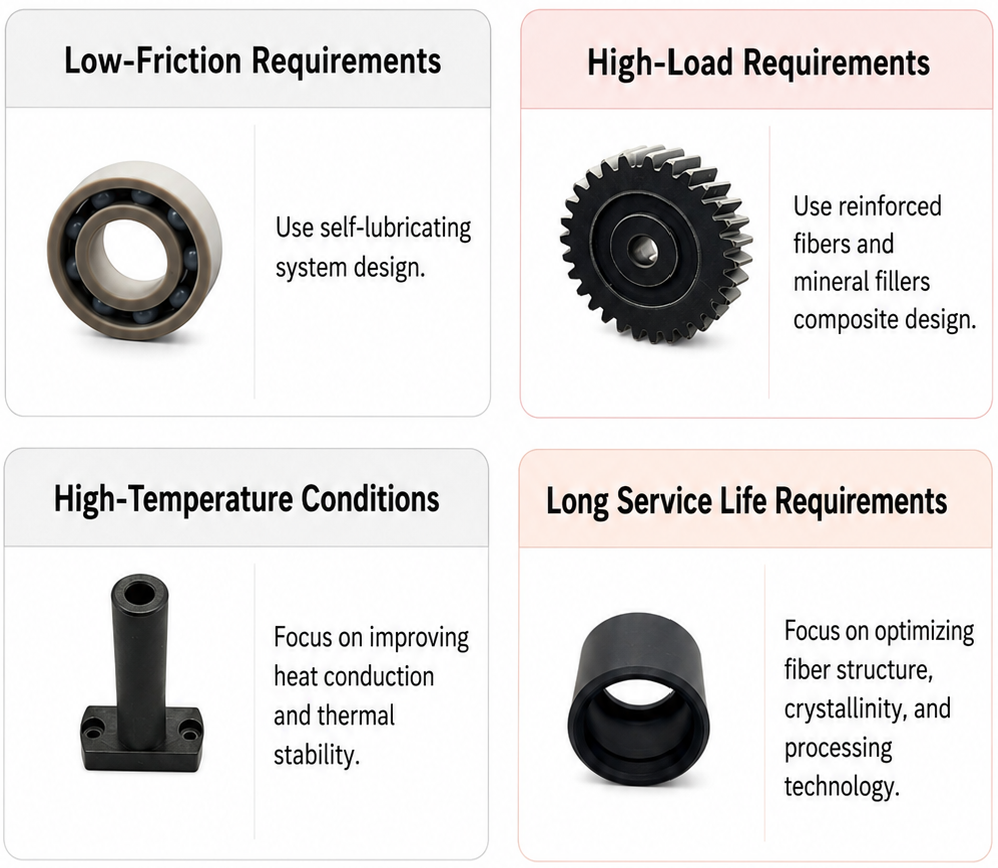

Through years of application experience, we have developed customized wear-resistant material systems for different operating conditions.

8. From Materials to Precision Components: JUTAI’s Engineering Expertise

Ultimately, customer value is determined not by laboratory material data, but by actual component service life.

JUTAI delivers complete engineering solutions rather than supplying raw materials alone.

Our wear-resistant PEEK technologies have been successfully applied in:

· Wind power sliding bearings

· Wear-resistant components for chemical pumps and valves

· High-temperature guide components

· Specialized sealing systems

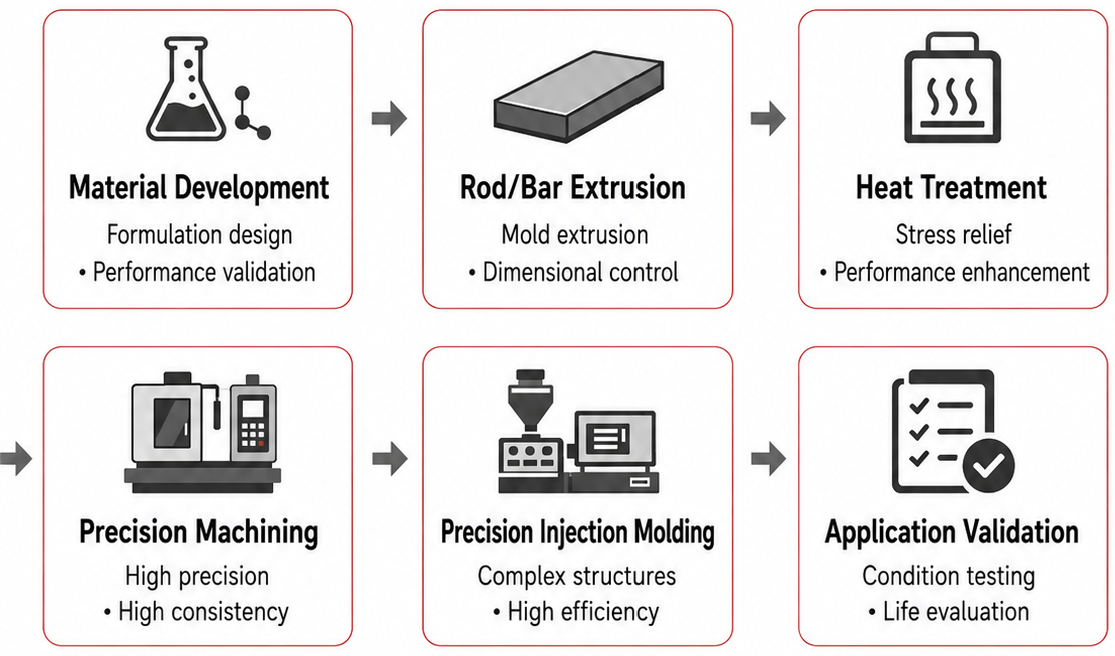

Through integrated capabilities in material development, sheet and rod extrusion, heat treatment, precision machining, injection molding, and application validation, JUTAI provides comprehensive solutions from raw material to finished component.

Conclusion

Wear-resistant PEEK is never simply a matter of selecting the right material.

Long service life results from the combined optimization of tribological mechanisms, material formulation, thermal management, manufacturing processes, and practical engineering experience.

Looking ahead, JUTAI will continue advancing the JUTAIPEEK® product portfolio, investing in wear resistance, self-lubricating technologies, high-temperature performance, and heavy-load applications to provide customers with more reliable, longer-lasting high-performance engineering plastic solutions.
