PSU Vs PPSU Vs PES: A Complete Guide To High-Performance Sulfone Plastics

Introduction

High-performance sulfone plastics are widely used in medical, aerospace, electronics, food processing, and industrial applications due to their excellent heat resistance, mechanical strength, and chemical stability. Among them, PSU (Polysulfone), PPSU (Polyphenylsulfone), and PES (Polyethersulfone) are the most commonly used materials.

Although these three materials belong to the sulfone polymer family, they differ significantly in thermal performance, impact resistance, hydrolysis resistance, transparency, and cost.

This article provides a comprehensive comparison of PSU, PPSU, and PES to help engineers and buyers select the most suitable material for their applications.

1. What Is PSU?

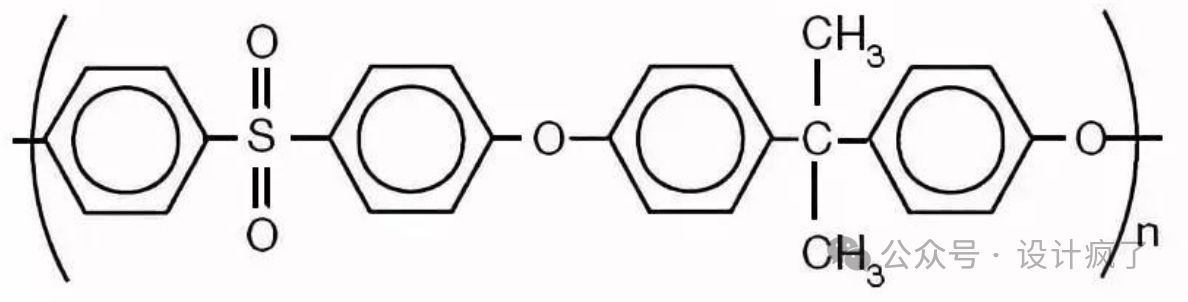

PSU (Polysulfone)

PSU is an amorphous high-performance thermoplastic known for its:

• High temperature resistance

• Good dimensional stability

• Excellent transparency

• Strong mechanical properties

• Good electrical insulation performance

Typical Applications

• Medical device housings

• Water treatment components

• Electrical insulators

• Food processing equipment

• Aerospace interior parts

2. What Is PPSU?

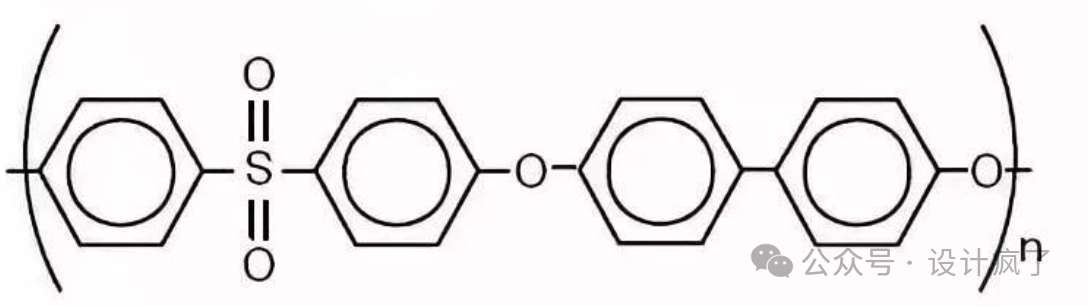

PPSU (Polyphenylsulfone)

PPSU offers superior toughness and hydrolysis resistance compared to PSU and PES. It is one of the best choices for repeated steam sterilization environments.

Key Advantages

• Exceptional impact resistance

• Outstanding hydrolysis resistance

• Excellent chemical resistance

• High long-term thermal stability

• Superior durability under repeated sterilization

Typical Applications

• Surgical instrument trays

• Medical sterilization equipment

• Baby bottles

• Aerospace components

• Plumbing and hot water systems

3. What Is PES?

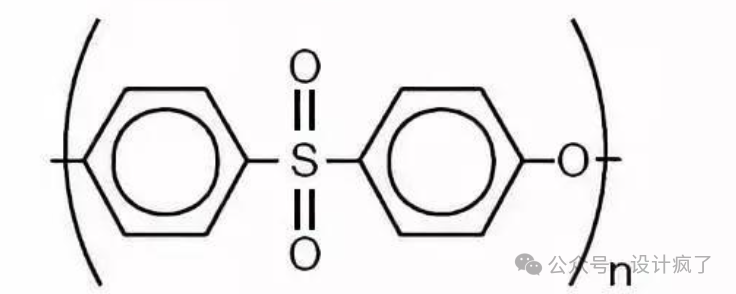

PES (Polyethersulfone)

PES combines high thermal performance with excellent rigidity and creep resistance. It is widely used in filtration and medical industries.

Key Advantages

• High stiffness

• Excellent heat resistance

• Good dimensional stability

• Excellent filtration performance

• Good hydrolysis resistance

Typical Applications

• Membrane filtration systems

• Medical devices

• Laboratory equipment

• Electrical connectors

• Automotive components

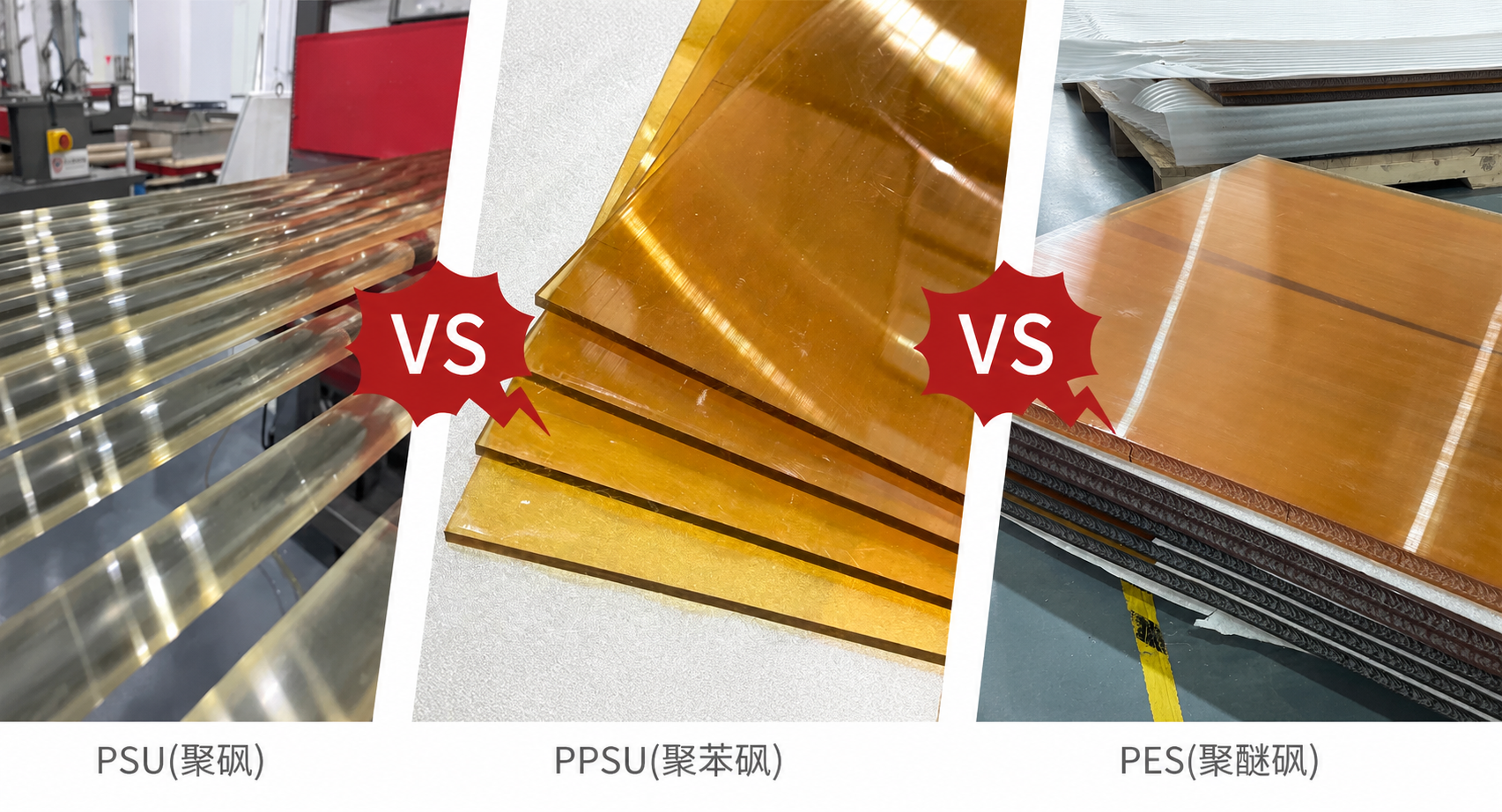

4. PSU vs PPSU vs PES Performance Comparison

5. How to Choose Between PSU, PPSU and PES

Choose PSU if you need:

• Cost-effective high-temperature performance

• Good transparency

• Stable electrical insulation properties

• General industrial applications

Choose PPSU if you need:

• Maximum impact resistance

• Repeated steam sterilization resistance

• Long-term hydrolysis resistance

• Medical-grade durability

Choose PES if you need:

• High rigidity and stiffness

• Excellent filtration performance

• Dimensional precision

• High-temperature engineering applications

6. Common Industrial Applications

Medical Industry

• Sterilization trays

• Surgical instrument handles

• Dental devices

• Dialysis equipment

Aerospace Industry

• Aircraft interior components

• Lightweight structural parts

• Electrical insulation systems

Water Treatment Industry

• Filtration membranes

• Pump components

• Valve systems

Food & Beverage Industry

• Hot water systems

• Food contact equipment

• Beverage processing components

7. Conclusion

PSU, PPSU, and PES are all important high-performance engineering plastics within the sulfone family. Each material has unique strengths:

• PSU offers balanced performance and cost efficiency.

• PPSU provides exceptional toughness and sterilization resistance.

• PES delivers excellent rigidity and filtration performance.

Selecting the right material depends on your application requirements, operating temperature, sterilization conditions, mechanical demands, and budget.

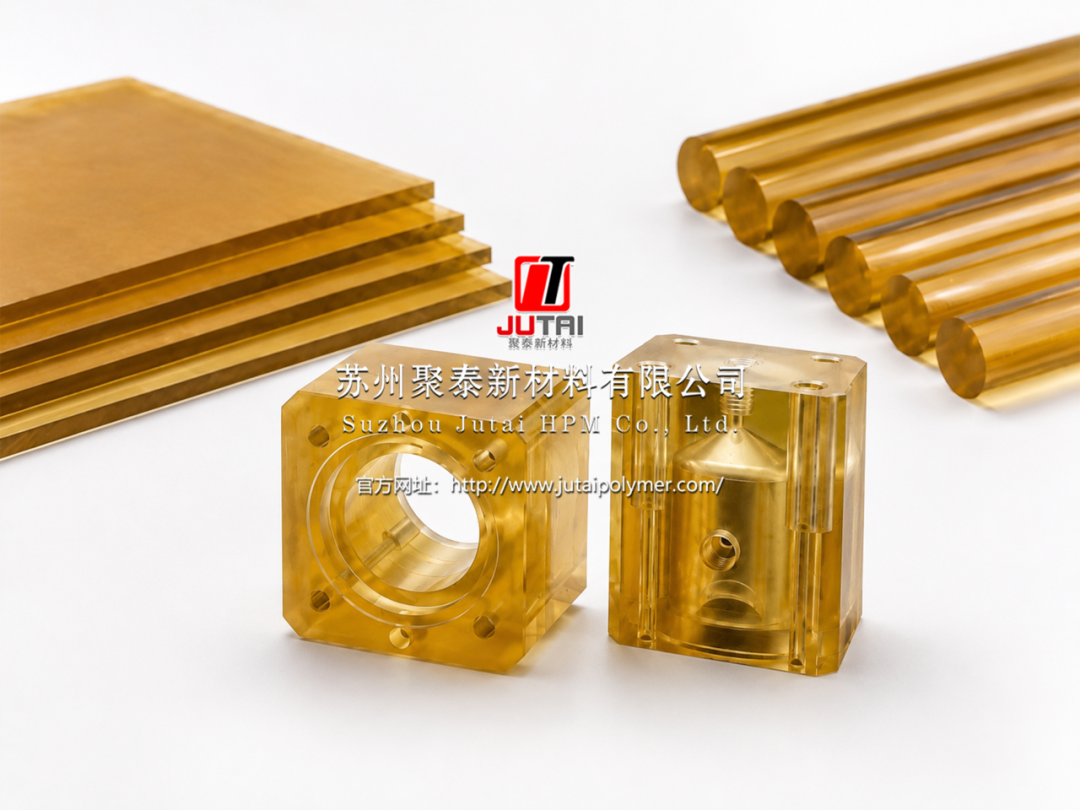

For high-performance plastic semi-finished products such as sheets, rods, tubes, machined parts, and injection molded components, choosing the proper sulfone material can significantly improve product reliability and service life.
