JUTAI Electrostatic Discharge (ESD) Dissipative Material Technology

What is Static Electricity

First of all,  Any substance is composed of atoms = Any object can carry static electricity

Electrostatic ：

Static electricity refers to static charges

Static electricity is a static charge on the surface of an object

Static electricity accumulates on the

Methods of Static Electricity Generation:

Friction

Electrostatic Field

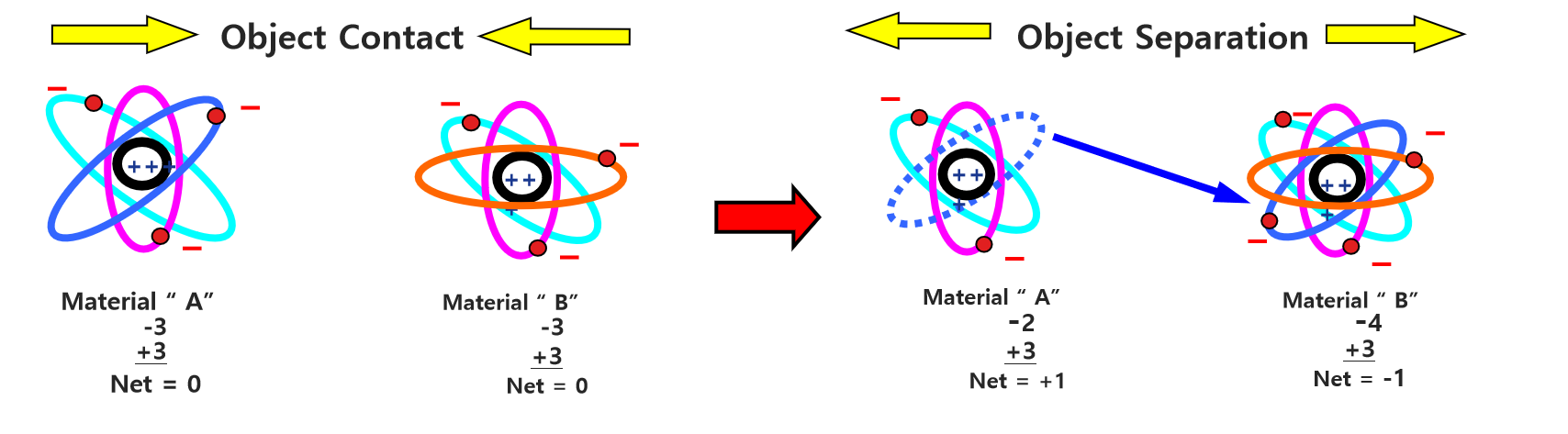

Contact and Separation

Uneven Ionization

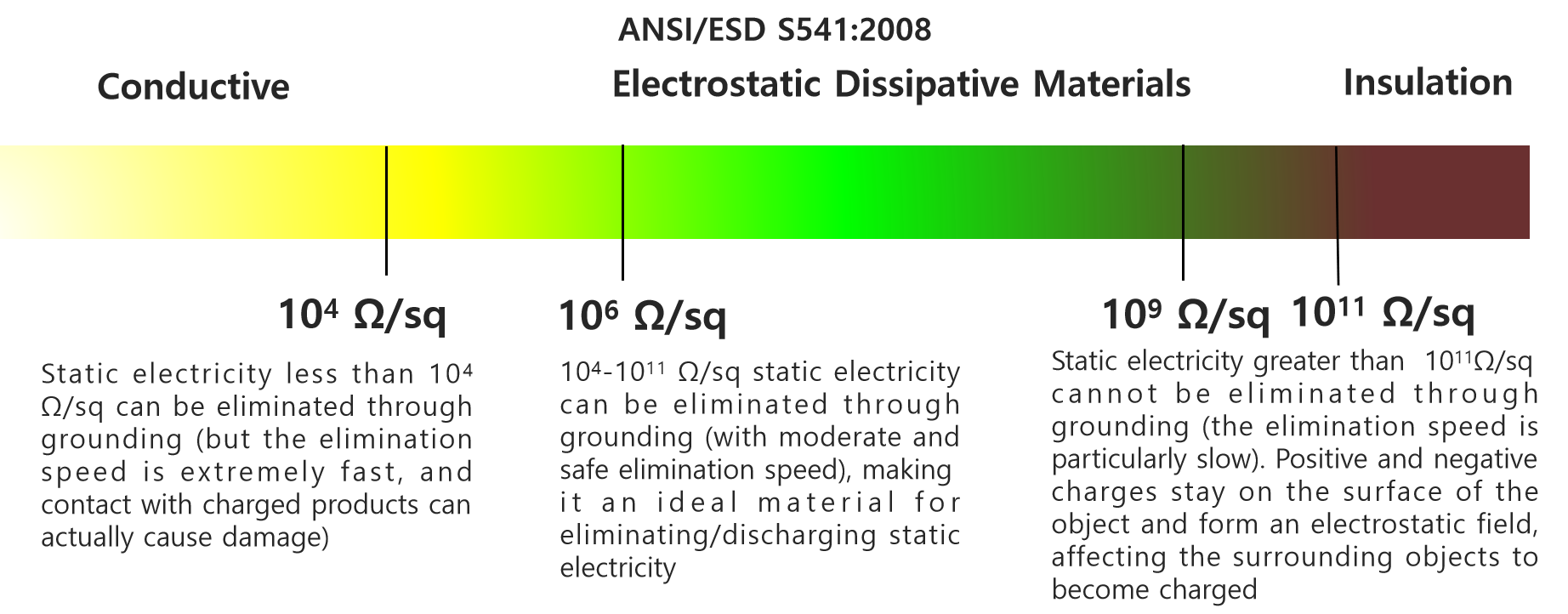

The consequence of object resistivity and static electricity

10^6 – 10^9 Ohms/sq is the most ideal ESD management

Why important of Electrostatic Discharge control?

Static discharge control method - Shielding/ Dissipation

Static charges transfer between objects and products with potential differences, generating instantaneous currents in a short period of time.

Therefore, electrostatic discharge has the characteristics of high voltage, low current, short action time, and high susceptibility to humidity.

(e.g. damaged products)

JUTAI Electrostatic Discharge (ESD) Dissipative Material Technology

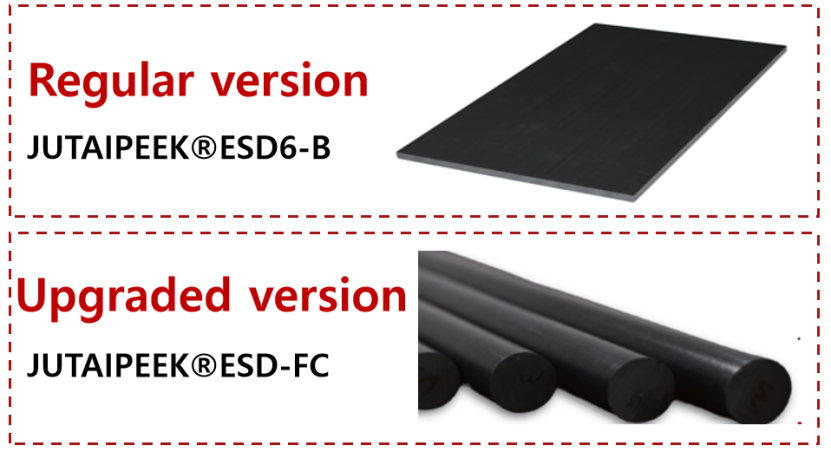

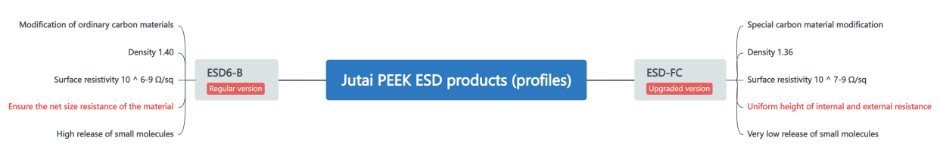

JUTAIPEEK®ESD6-B  &  JUTAIPEEK®ESD-FC

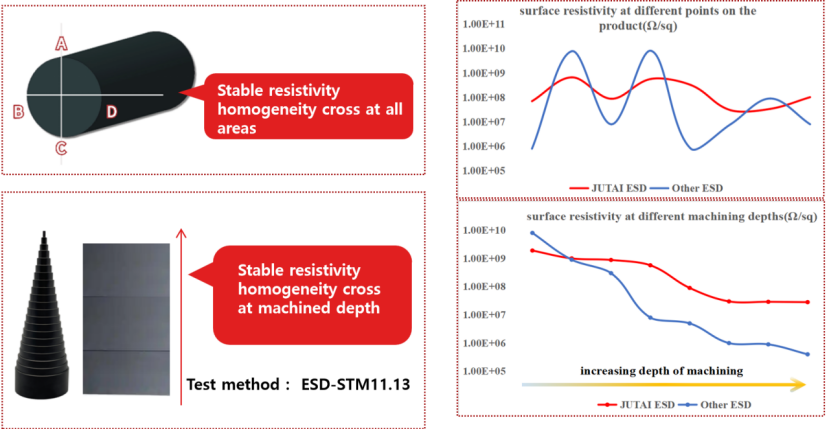

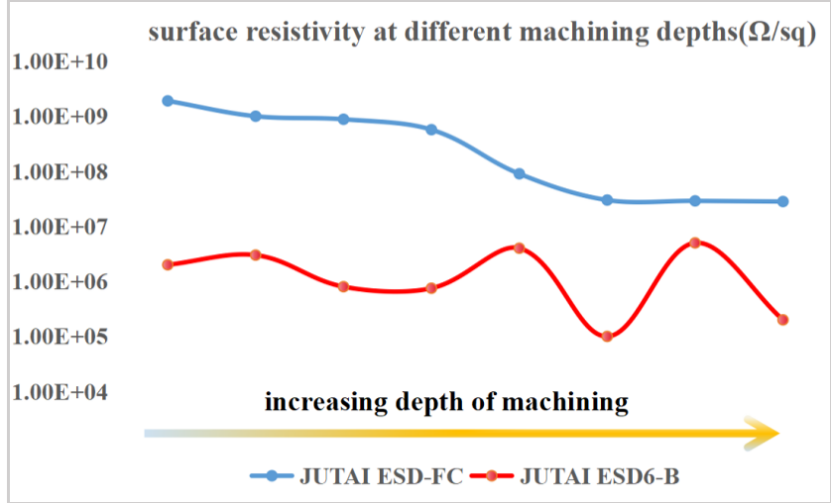

JUTAIPEEK®ESD-FC high homogeneity of resistivity

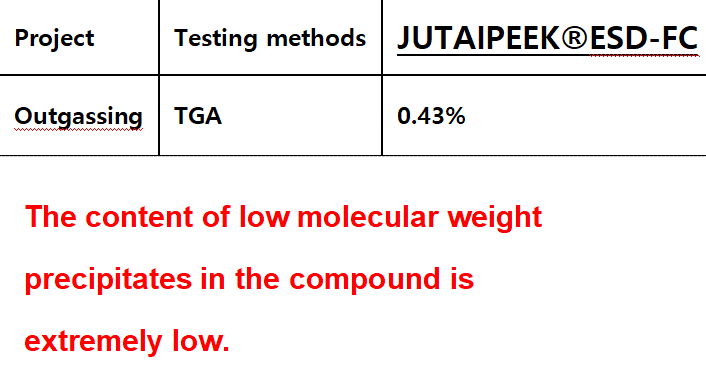

Low molecular weight substance precipitation amount of the compound

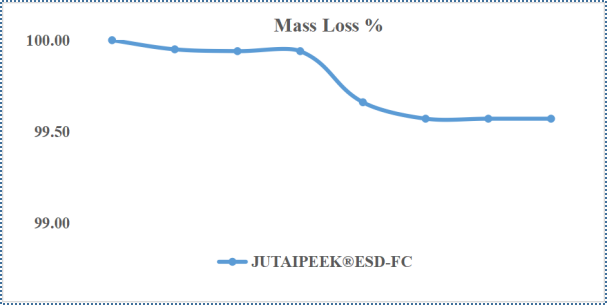

Gas release experiment: TGA based gas release test. Heat up to 200 ° C at a rate of 20 ° C/minute, then hold in air for 100 minutes and calculate the mass loss.

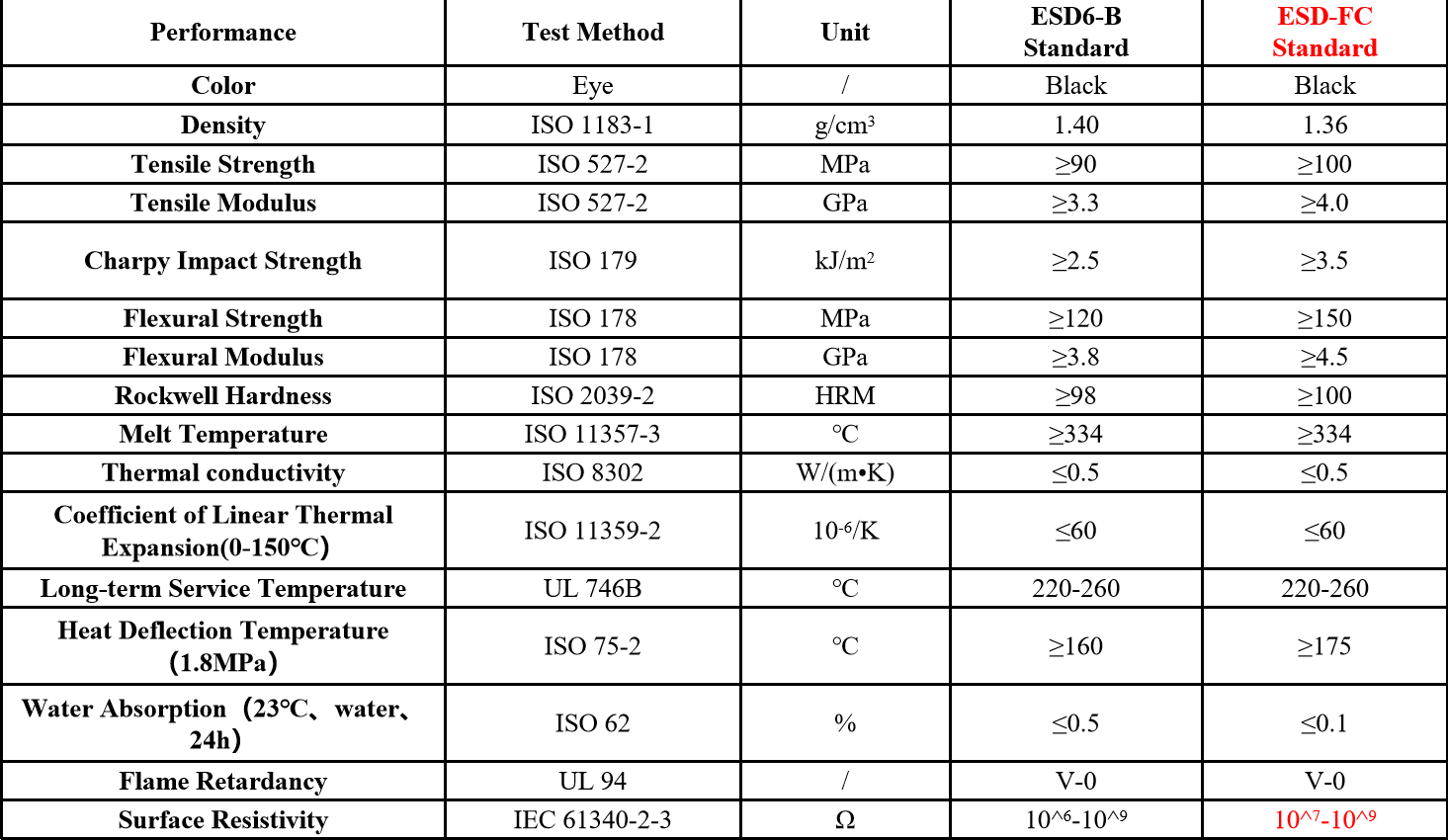

Technical Data Sheet
