PAI Sheet & Rod

Availability:
Quantity:
JUTAIPAI®NA PAI Sheet & Rod are high-performance polyamide-imide semi-finished profiles designed for demanding industrial environments requiring outstanding heat resistance, wear resistance, dimensional stability, and mechanical strength.

JUTAIPAI®NA PAI Sheet & Rod

JUTAIPAI®NA PAI Sheet & Rod are high-performance polyamide-imide semi-finished profiles designed for demanding industrial environments requiring outstanding heat resistance, wear resistance, dimensional stability, and mechanical strength. Manufactured from advanced PAI material, these sheets and rods maintain excellent rigidity and load-bearing capability even under continuous high-temperature operation.

Compared with conventional engineering plastics, JUTAIPAI®NA PAI sheets and rods provide superior creep resistance, low thermal expansion, and exceptional compressive strength, making them ideal for precision-machined structural and tribological components. The material performs reliably in dry-running, high-PV, and high-load applications where long service life and stable tolerances are critical.


JUTAIPAI®NA PAI Sheet & Rod also feature excellent dielectric properties, radiation resistance, and broad chemical compatibility with fuels, oils, solvents, and industrial fluids. Their outstanding machinability allows precise fabrication into complex industrial components.


Key Features

Excellent wear and friction performance

Continuous service temperature up to 250–260°C

High strength and rigidity

Outstanding dimensional stability

Low creep under long-term load

Excellent dielectric insulation properties

High resistance to radiation and UV exposure

Suitable for dry-running and non-lubricated applications

Typical Applications

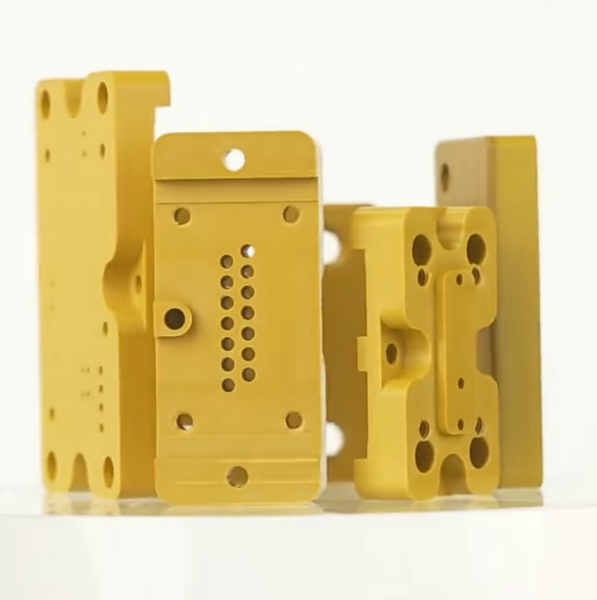

Precision structural components

Semiconductor fixtures and wafer handling parts

Electrical insulators and connectors

High-load bearings and guide components

Compressor wear rings and seal rings

Aerospace lightweight replacement parts

Industrial mechanical wear pads and sliding elements
