How PEEK Solves The Hubble Space Telescope's Size Challenge

In 1990, the Hubble Space Telescope was launched into orbit.

More than 500 kilometers above Earth, it repeatedly moved between sunlight and Earth’s shadow as it orbited the planet.

In sunlight, temperatures rose. In shadow, they dropped. These repeated temperature changes caused the support structure of Hubble’s early solar arrays to expand and contract, creating slight vibration.

The movement was too small to see, but it affected the telescope’s pointing accuracy. At its worst, nearly one-third of observation time was affected during each orbit.

For a precision instrument designed to observe the distant universe, the problem was surprisingly practical: under repeated temperature changes, could its critical structures hold their dimensions?

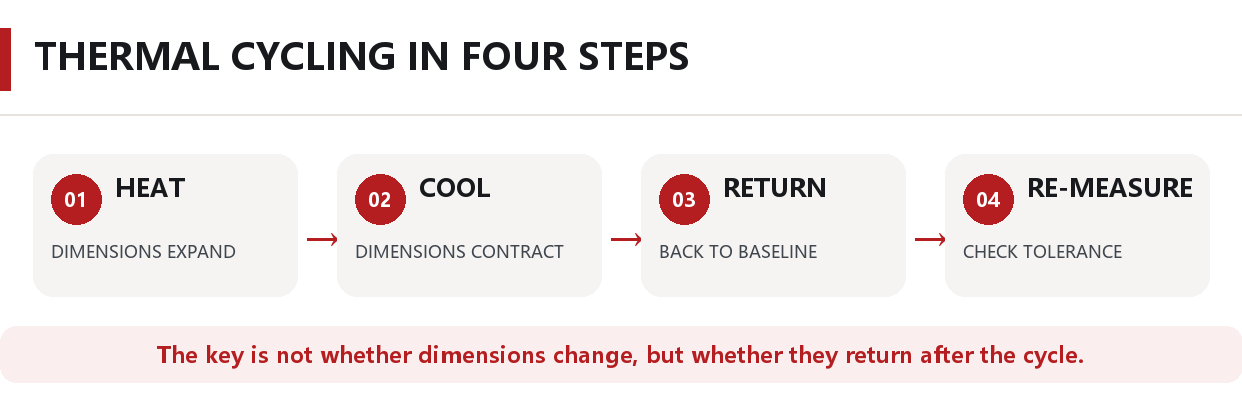

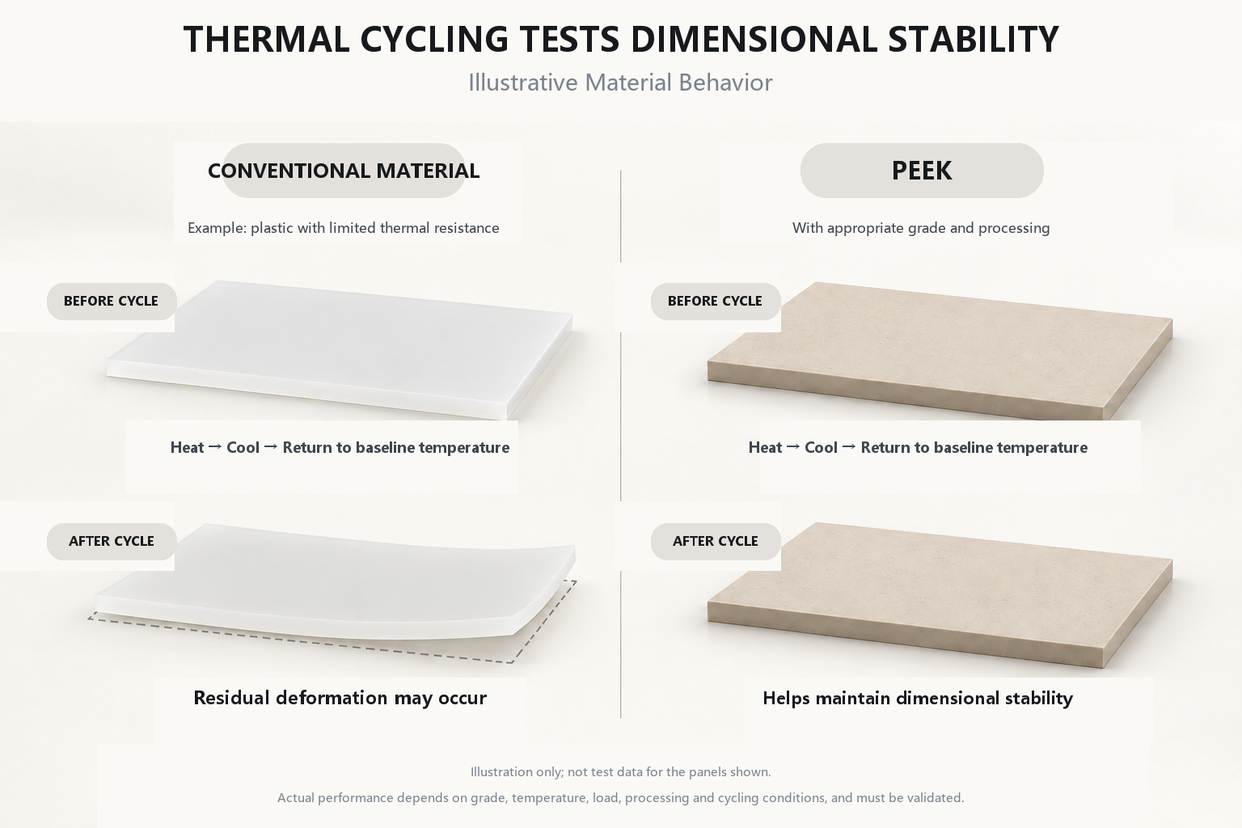

Expansion during heating and contraction during cooling are normal material responses. The engineering question is whether the part returns to its intended dimensions once the temperature returns to baseline.

If the material's behavior is well understood and it can largely return to its original state after each cycle, designers can account for this by incorporating dimensional tolerances and structural design allowances.

After repeated thermal cycling, residual stress may gradually release and absorbed moisture may repeatedly enter and leave the material. When different materials are assembled together, differences in thermal expansion can add further stress.

The first few cycles may show little change. Over time, however, small deviations can accumulate into bore-size variation, flatness distortion or excessive assembly clearance.

Key point: for precision parts, even a few microns of movement can affect assembly accuracy and operating stability.

Hubble’s issue was gradually addressed through thermal protection, software adjustment and solar-array improvements. The lesson is clear: thermal-cycle issues need to be considered through materials, structure and validation together.

For high-temperature precision parts, material selection is usually the first step.

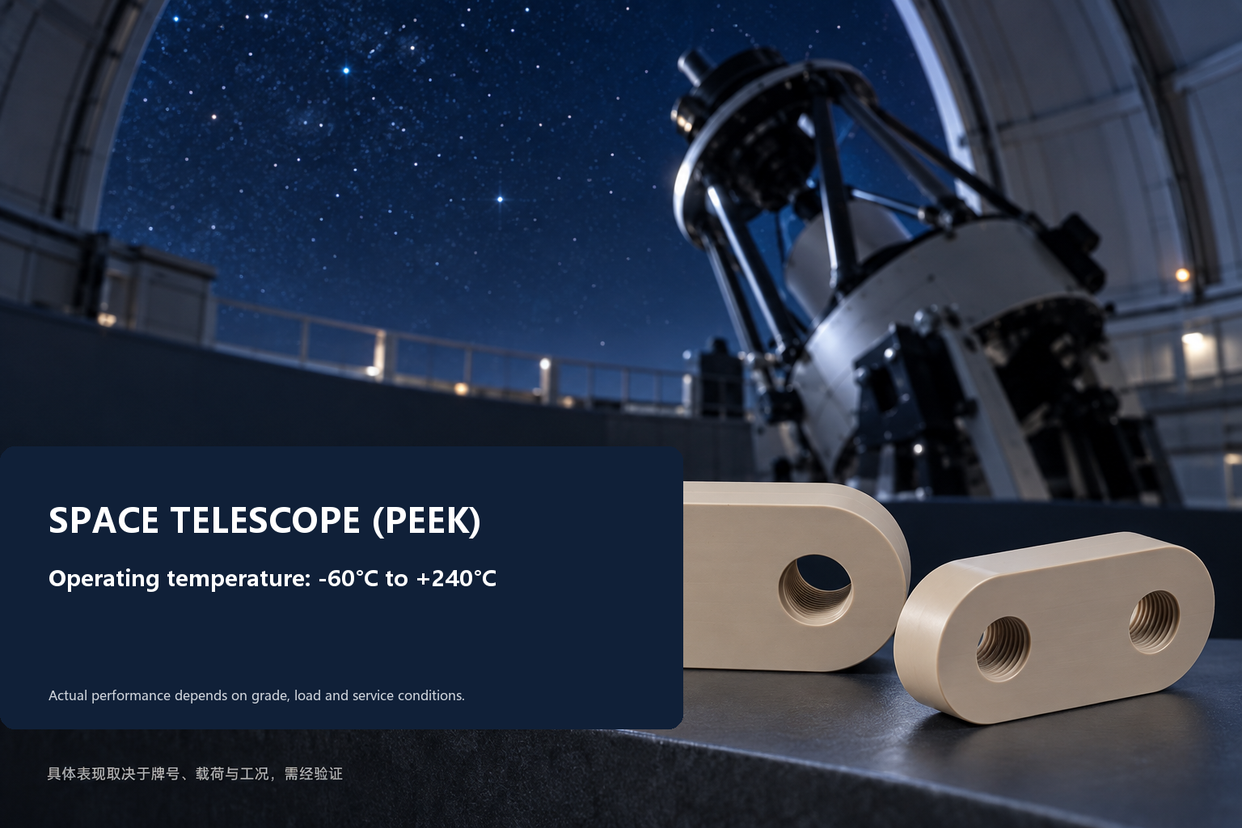

PEEK can retain good mechanical performance at elevated temperatures, while offering low moisture absorption, fatigue resistance, creep resistance and chemical resistance.

PEEK also expands and contracts with temperature. Its value is not that it never changes, but that—with appropriate grade selection, processing and service conditions—dimensional change can be more predictable and easier to control.

Depending on the application, engineers may consider:

1. Unfilled PEEK

2. Glass-fiber-reinforced PEEK

3. Carbon-fiber-reinforced PEEK

The final selection should consider more than temperature resistance: thermal expansion, load, friction, insulation requirements and machining precision all matter.

Material data can support initial screening, but stable performance must be proven in the finished part.

The same PEEK grade may behave differently in thin-wall parts, thick-wall parts or precision threaded components. Machining allowance, annealing, fixturing and assembly constraints can all influence the final result.

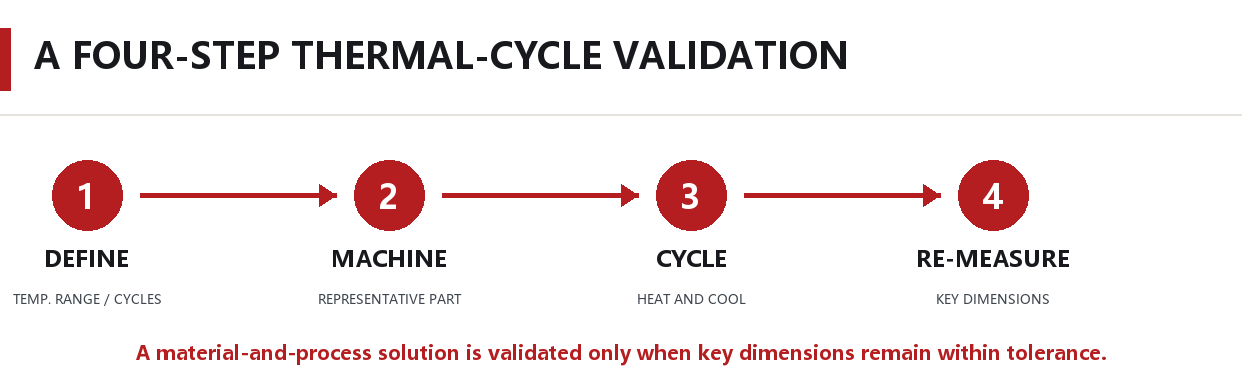

Validation should reflect real service conditions as closely as possible. A material-and-process solution is established only when critical dimensions remain within tolerance after cycling and return to a defined baseline temperature.

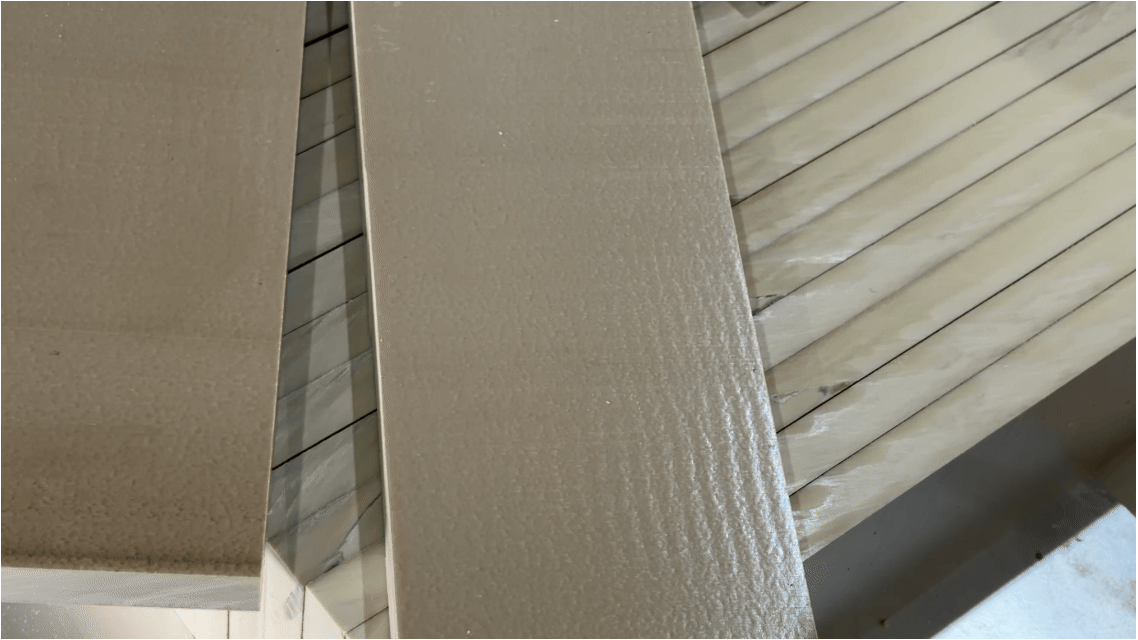

Suzhou Jutai focuses on high-performance engineering plastics including PEEK, offering stock shapes, material-selection support and precision-machined components.

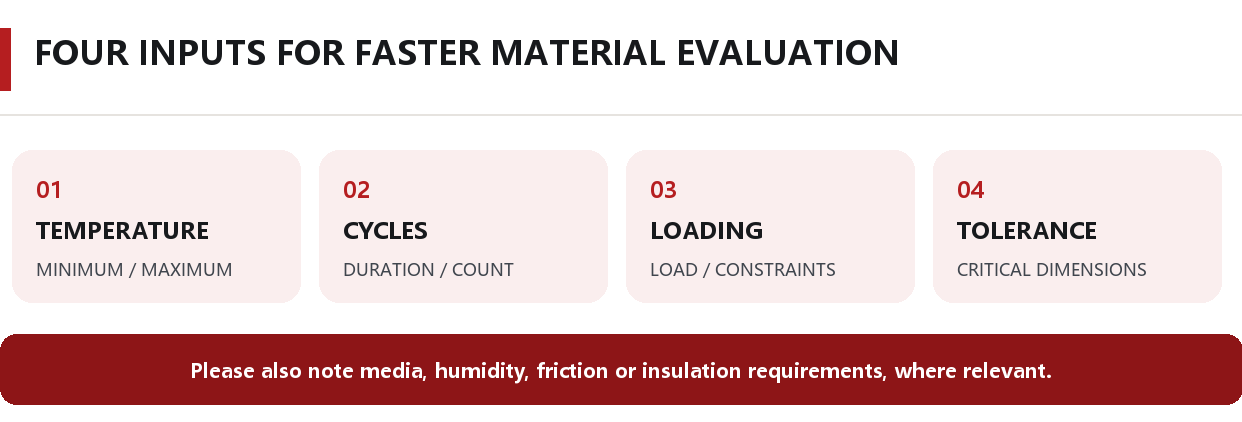

For parts exposed to thermal cycling, we look beyond a single temperature rating. Temperature limits, cycle count, loading, assembly constraints and critical tolerances all need to be considered together.

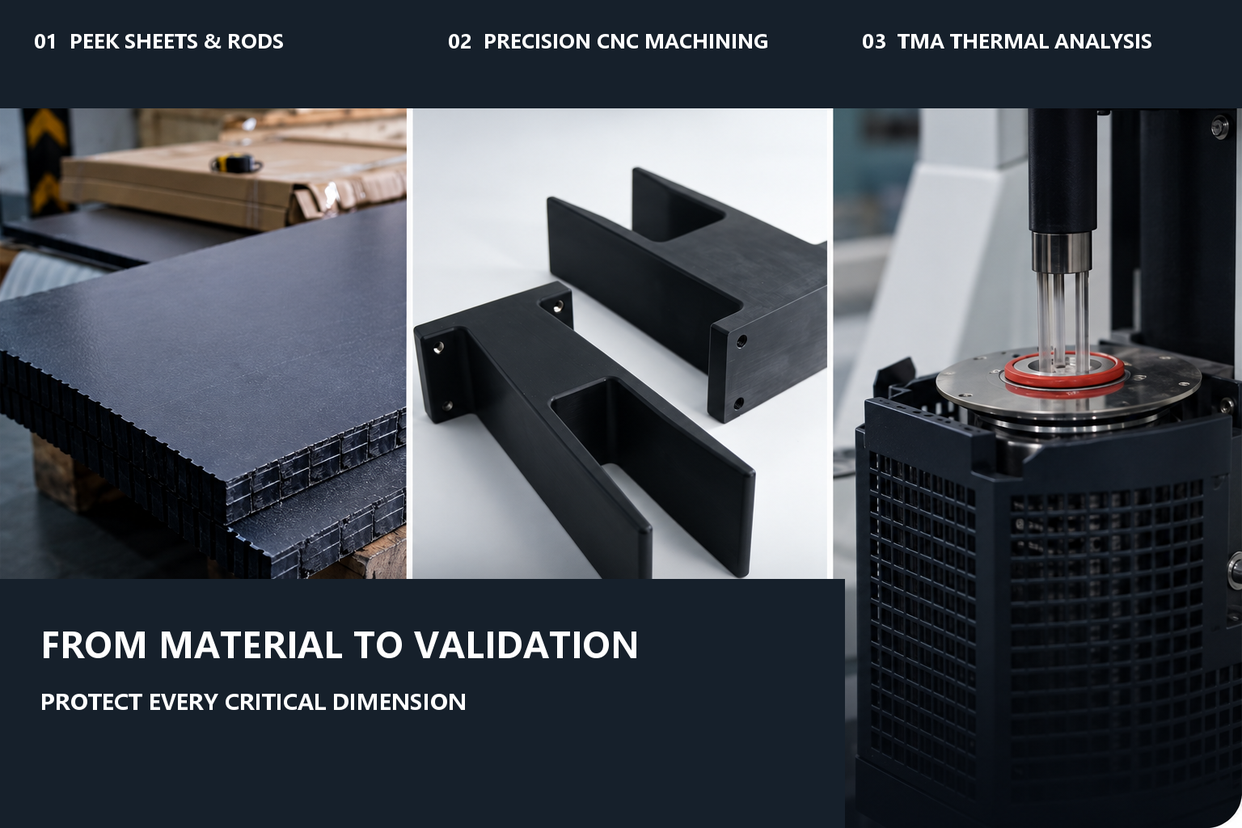

From grade selection, stock condition and annealing to machining and dimensional inspection, defining these requirements early makes both sampling and production more controllable.

If you are addressing dimensional drift under alternating high- and low-temperature conditions, share your operating temperatures, cycle count and critical tolerances with us. Jutai can support the evaluation from both material and machining perspectives, with sample validation where needed.

Note: Temperature and material-property information in this article is for material-level reference only. It does not define the service limits of a specific part. Actual applications must be assessed with the material grade, part design, load, environment and test data considered together.
